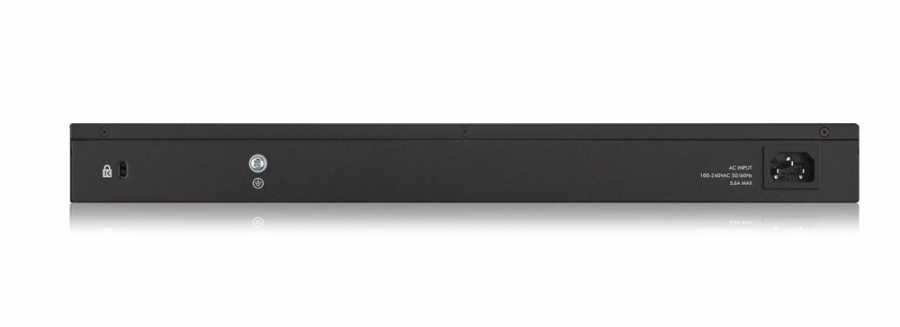

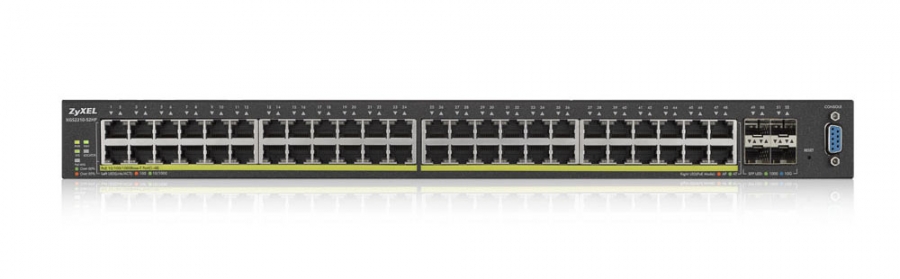

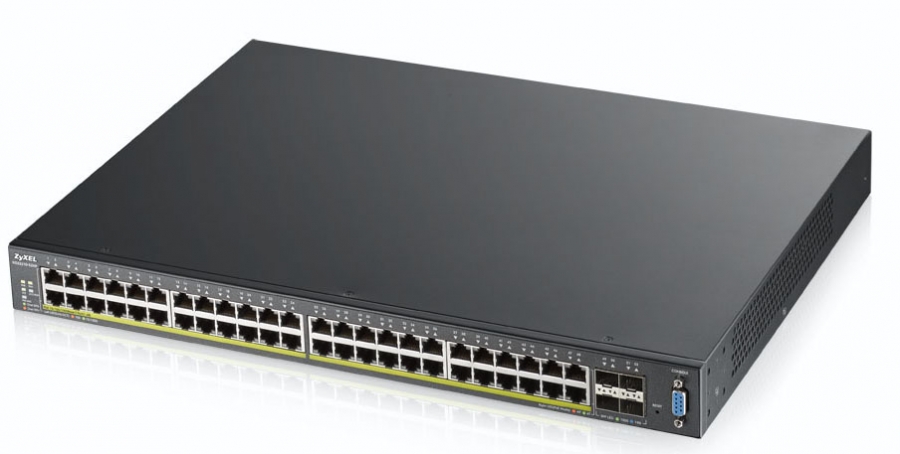

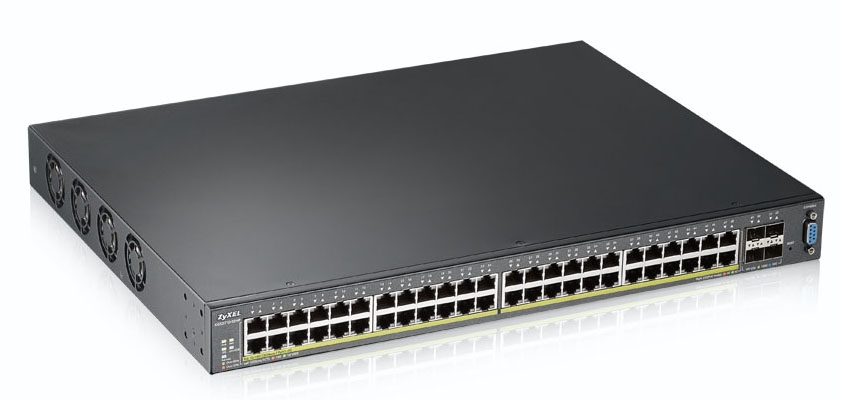

Zyxel Switch 48x GE XGS2210-52HP + 4x10G POE+ (375) Managed

Manufacturer: ZYXEL

Reference XGS2210-52HP-EU0101F

Condition: New

More info

Agile traffic control for converged networking applications

ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.

ZyXEL One Network experience

Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Jā
Web-based management	Jā
Traffic shaping	Jā
ARP inspection	Jā
System event log	Jā
MIB support	RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Jā
Port mirroring	Jā
IP routing	Jā
Flow control support	Jā
Link aggregation	Jā
Broadcast storm control	Jā
Rate limiting	Jā
Spanning tree protocol	Jā
MAC address auto-learning supported	Jā
VLAN support	Jā
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Throughput	130.9 Mpps
Number of queues	8
Jumbo frames support	Jā
Jumbo frames	9000
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Access Control List (ACL)	Jā
IGMP snooping	Jā
Security algorithms	802.1x RADIUS, SNMP, SSH, SSH-2
MAC address filtering	Jā
SSH/SSL support	Jā
BPDU filtering/protection	Jā
Authentication	MAC-based authentication
Multicast support	Jā
Rack mounting	Jā
Stackable	Jā
Form factor	1U
Product colour	Black
LED indicators	Power, Status
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 (A), CE (A), BSMI
Certification	RoHS
Noise level	44.3 dB
Plug and Play	Jā
Mean time between failures (MTBF)	500904 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	495 W
Power over Ethernet (PoE)	Jā
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	375 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	1688 BTU/h
Width	440 mm
Depth	330 mm
Height	44.5 mm
Weight	5.38 kg
Cables included	AC
Rack mount kit	Jā
Package width	586 mm
Package depth	452 mm
Package height	97 mm
Package weight	6.75 kg
Harmonized System (HS) code	85176990
