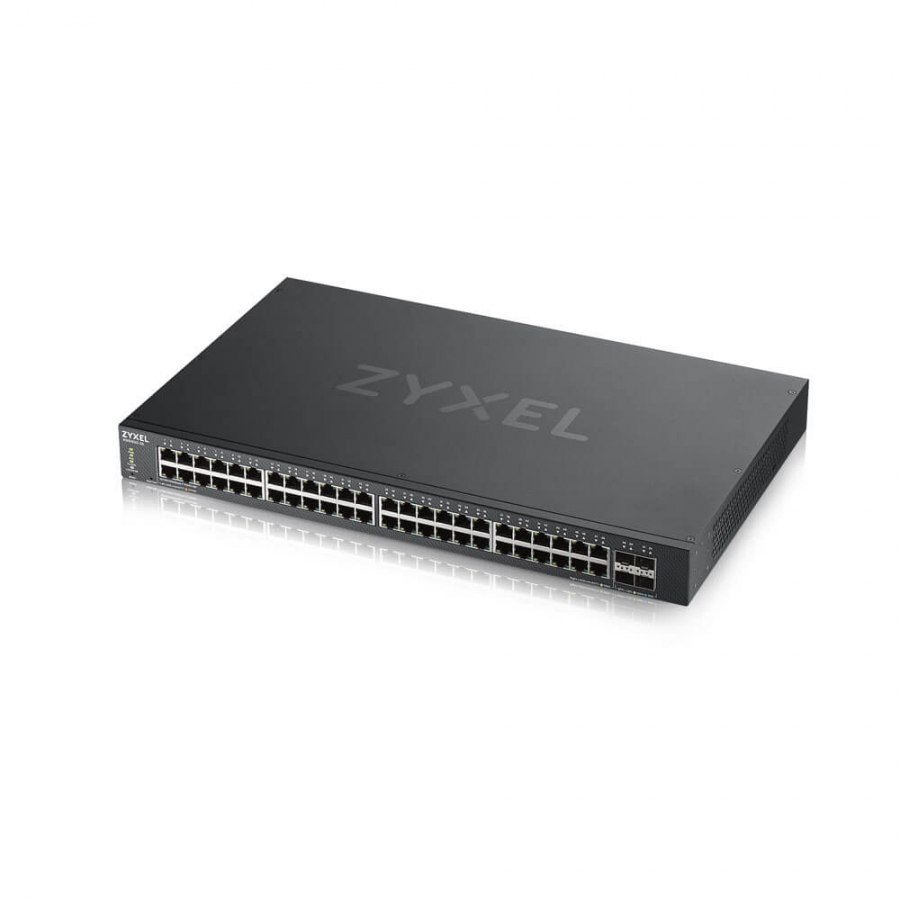

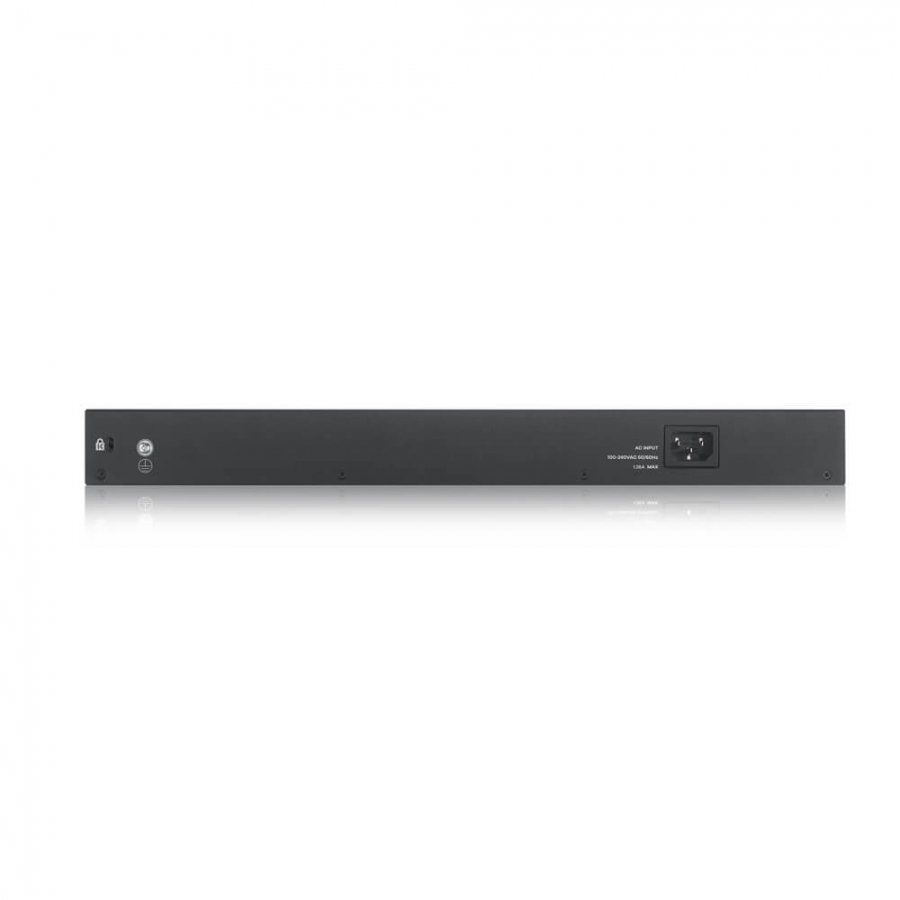

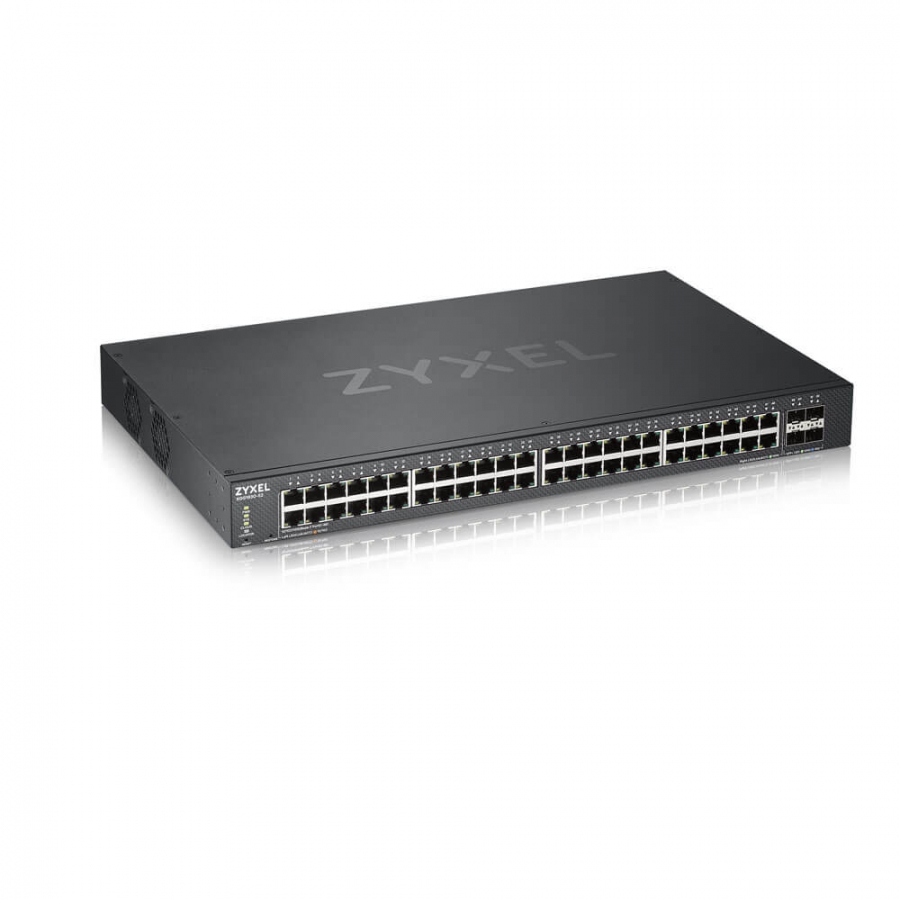

Zyxel Switch 52x GE XGS1930-52-Eu0101F Managed

ZYXEL

XGS1930-52-EU0101F

New

Flexible and easy way to manage your switch The XGS1930 can be used in two modes by utilizing Zyxel's NebulaFlex. You are able to easily change between standalone and our license free Nebula cloud management platform, anytime, with a few simple clicks. You can easily access advanced features such as VLAN, Quality of Service (QoS), IGMP Snooping, Link Aggregation (LAG) wether you choose intuitive web-based GUI or cloud-based Nebula management platform. The XGS1930 enables cloud manageability with Zyxel's NebulaFlex to protect your investment by having the flexibility to benefit from the cloud in your own time, without the need to worry about additional ongoing licensing costs. You can grasp your network device status and perform remote configuraitons anytime, anywhere.A new and flexible approach to 10G! Under the new stylish carbon-like cover comes new hardware and software to widen the user experience for our new series of 10G switches. The XGS1930’s flexible approach includes the introduction of NebulaFlex, giving you the ability to configure the switch without unboxing. The XGS1930 also includes intuitive new features like the One-touch ‘Restore’ button on the front panel.What to benefit from Central management? The XGS1930 series of switches are able to join our License Free Cloud management platform, Nebula. Simply register your switch via the portal (Nebula Control Center) and the device will automatically join, auto provision and begin to give you real-time control and information, anywhere, anytime. Not ready for the cloud… Just yet? Not ready for the cloud? No problem the XGS1930 series offers traditional standalone (Smart Managed) configuration via it’s intuitive local web based setup, whilst always giving you the flexibility to centrally control via Nebula when you are ready without any additional fees.An affordable approach to 10G, the backbone of any network. The XGS1930 series has been designed to suite a wide range of scenarios that SMBs are often faced with. Feature rich, flexible management options and 10G uplinks, all make the XGS1930 series the first choice for SMBs looking for an upgrade path from 1G, future proofing or have requirements for higher bandwidths across their backbone.More available power with intelligent PoE support. The XGS1930 series offers 30-watt (802.2at) PoE+ to each port and gives a large PoE+ budget of 375w on all PoE models. The PoE is further enhanced with intelligent PoE (Smart Power), allowing the switch to deliver the actual power required to devices connected without wasting power often lost in the PoE allocation process. This approach can see the switch support more PoE devices on a single switch compared to traditional smart managed switches, even power-hungry devices like CCTV and Wireless Access Points.Experience whisper-silent operation. The XGS1930 series has been designed with smart fan technology to automatically adjust speeds round the temperature of the device. This allows the switch to minimize the acoustic noise and create a whisper-silent operation in typical deployments.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity4
Fiber optic connectorSFP+
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportY
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringY
IP routingY
Routing entries32
Flow control supportY
Link aggregationY
Broadcast storm controlY
Spanning tree protocolY
VLAN supportY
Virtual LAN featuresVoice VLAN, Port-based VLAN
Number of VLANs4000
MAC address table16000 entries
Switching capacity176 Gbit/s
Forwarding rate130.9 Mpps
Static routeY
Path MTU discoveryY
Packet buffer memory1.5 MB
DHCP featuresDHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)Y
IGMP snoopingY
Security algorithms802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS
SSH/SSL supportY
Loop protectionY
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
Password protectionY
CPU defenseY
Multicast supportY
GARP VLAN Registration Protocol (GVRP)Y
Rack mountingY
Product colourBlack
SafetyLVD, BSMI
Electromagnetic compatibilityFCC 15 A, CE A, BSMI EMC
CertificationRoHS
Internal memory512 MB
Flash memory32 MB
Noise level26.3 dB
Mean time between failures (MTBF)827093 h
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)55.7 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Heat dissipation189.937 BTU/h
Width441 mm
Depth270 mm
Height44 mm
Weight3.7 kg
Cables includedAC
Rack mount kitY
Package width616 mm
Package depth355 mm
Package height107 mm
Package weight4.78 kg
Harmonized System (HS) code85176990
