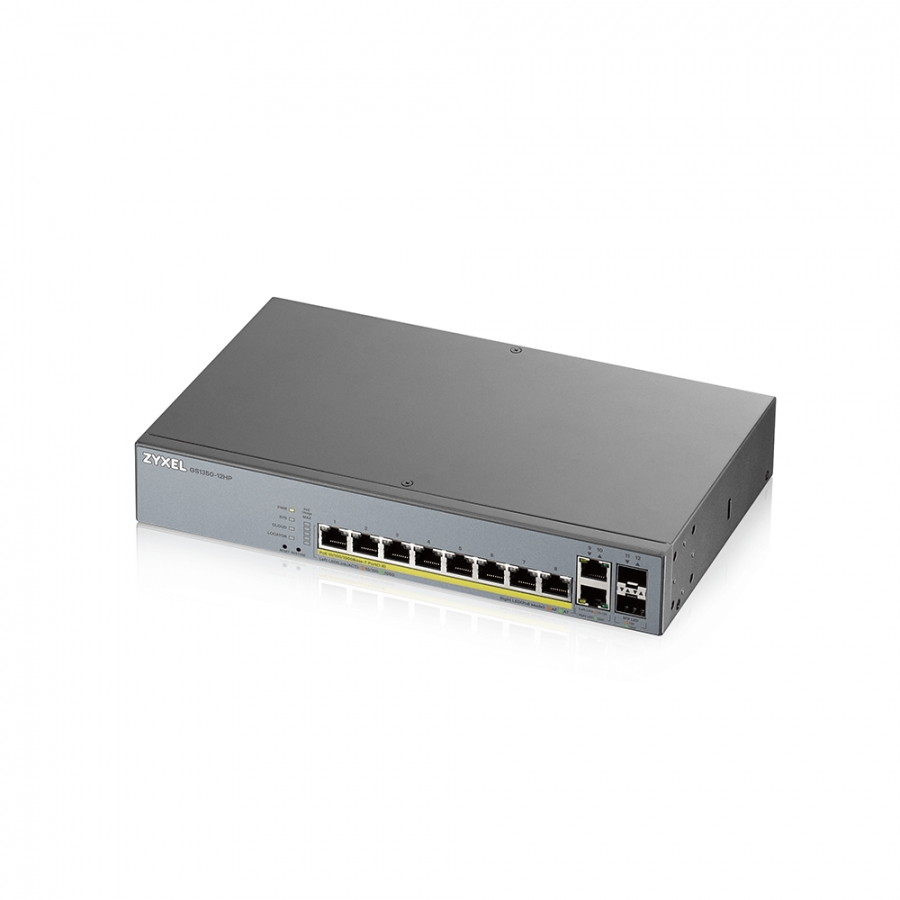

Zyxel Switch 12x GE GS1350-12HP PoE long range 130W Managed

Manufacturer: ZYXEL

Reference GS1350-12HP-EU0101F

Condition: New

More info

Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applicationsNew outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.Specialized PoE software features for surveillanceDetect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.Unique hardware, robust designStabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system.Selected power supply 2X Surge and ESD protection.Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply.Intelligent System Monitor Keeps the system operational from anomalies.Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

Switch type	Managed
Switch layer	L2
Web-based management	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Y
Flow control support	Y
Broadcast storm control	Y
Spanning tree protocol	Y
VLAN support	Y
Virtual LAN features	MAC address-based VLAN, Port-based VLAN
Number of VLANs	256
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.8 Mpps
Packet buffer memory	0.525 MB
DHCP features	DHCP client, DHCP relay, DHCP snooping
IGMP snooping	Y
IGMP proxy	Y
Security algorithms	SNMP, SNMPv3, SSH, SSL/TLS
MAC address filtering	Y
Loop protection	Y
Queue scheduling algorithms	SPQ, WFQ, Weighted Round Robin (WRR)
Multicast support	Y
Rack mounting	Y
Product colour	Grey
LED indicators	Y
Noise level	27.3 dB
Firmware upgradeable	Y
Mean time between failures (MTBF)	1065025.45 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	160.3 W
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	546.62 BTU/h
Width	267 mm
Depth	162 mm
Height	44 mm
Weight	1.63 kg
Cables included	AC
Rack mount kit	Y
Harmonized System (HS) code	85176990
