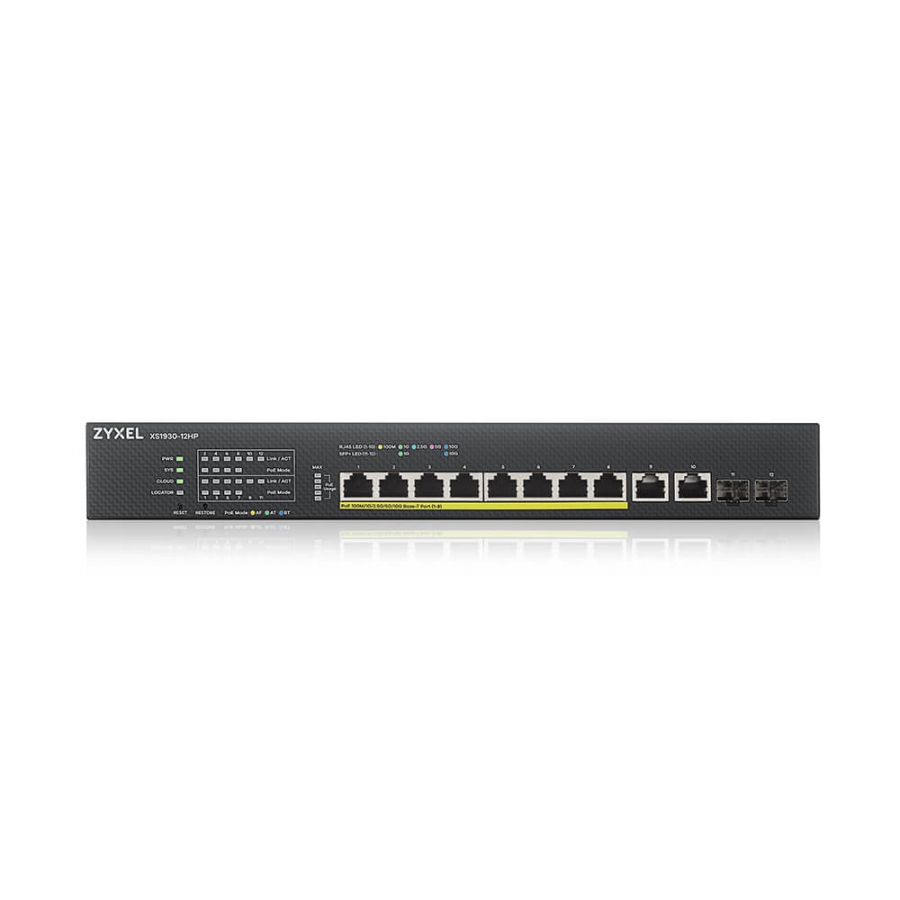

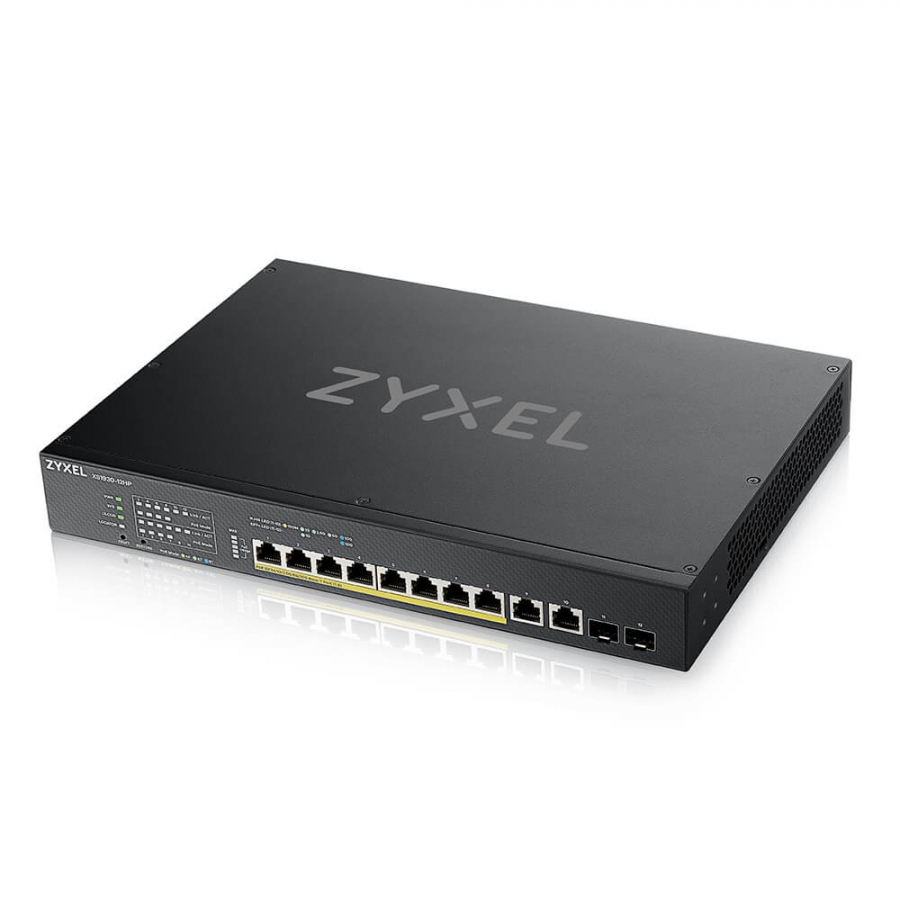

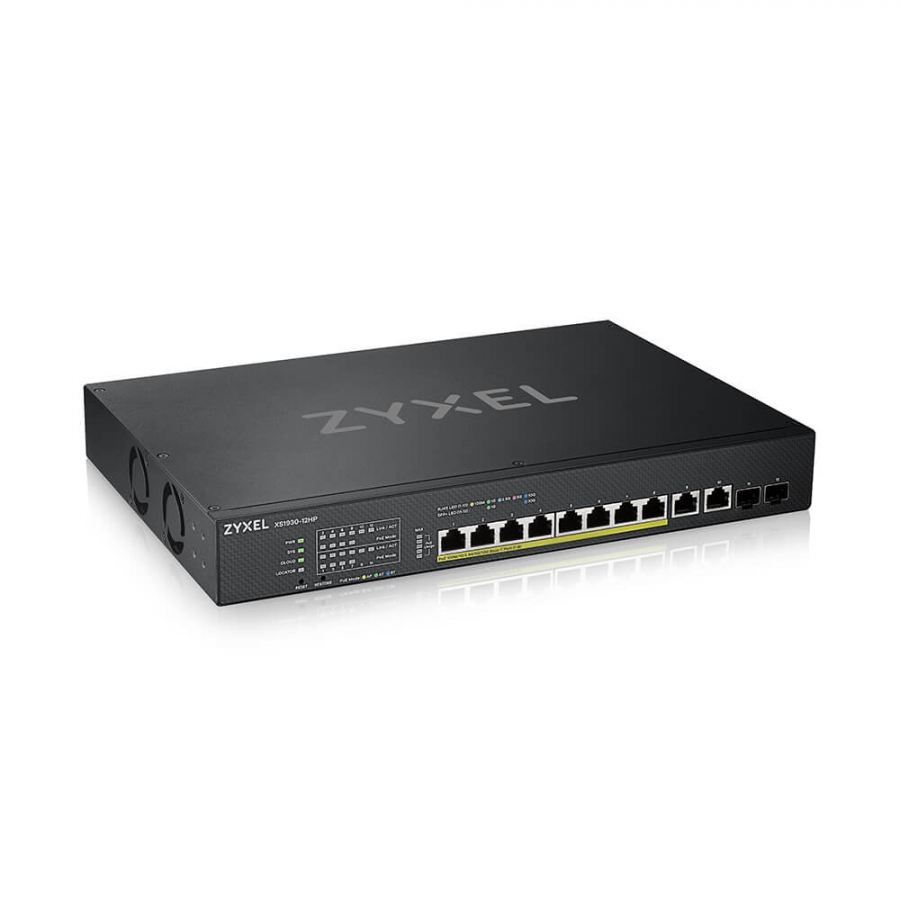

Zyxel Switch 12x GE XS1930-12HP Multi GB Switch POE++

Manufacturer: ZYXEL

Reference XS1930-12HP-ZZ0101F

Condition: New

More info

Light Up the Speed Zyxel’s XS1930 Series Multi-Gigabit Smart Managed SwitchBreakthrough 1 Gbps The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed. New era of connectivity Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G.True backbone of WiFi 6 WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs.Experience The Near Silent Operation The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment.Manage it your way! The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.Smart managed switch inside and out The XS1930 Series aims to widen user experience with its unique One-touch ‘Restore’ button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently.Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
Configuring Location Settings (CLI)	Y
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Networking standards	IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
10G support	Y
Port mirroring	Y
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
VLAN support	Y
MAC address table	16000 entries
Switching capacity	240 Gbit/s
Multicast support	Y
Rack mounting	Y
Product colour	Black
LED indicators	Y
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	493 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	375 W
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	151.06 BTU/h
Width	330 mm
Depth	230 mm
Height	44 mm
Weight	2.8 kg
Harmonized System (HS) code	85176990
