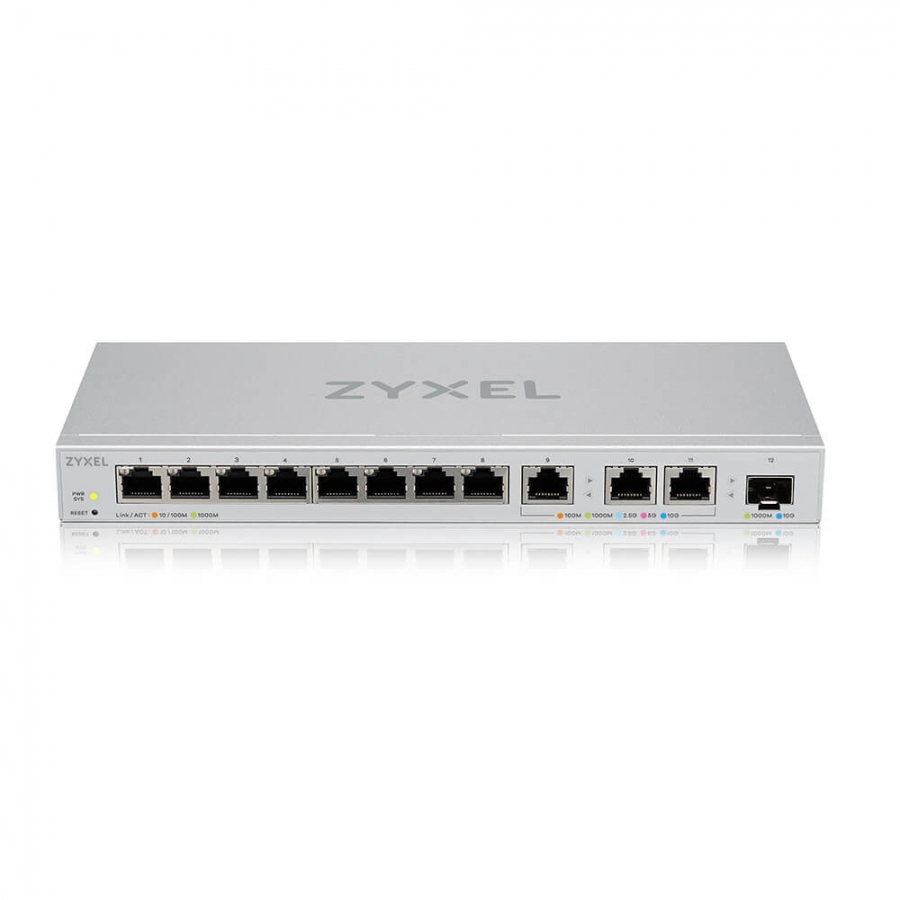

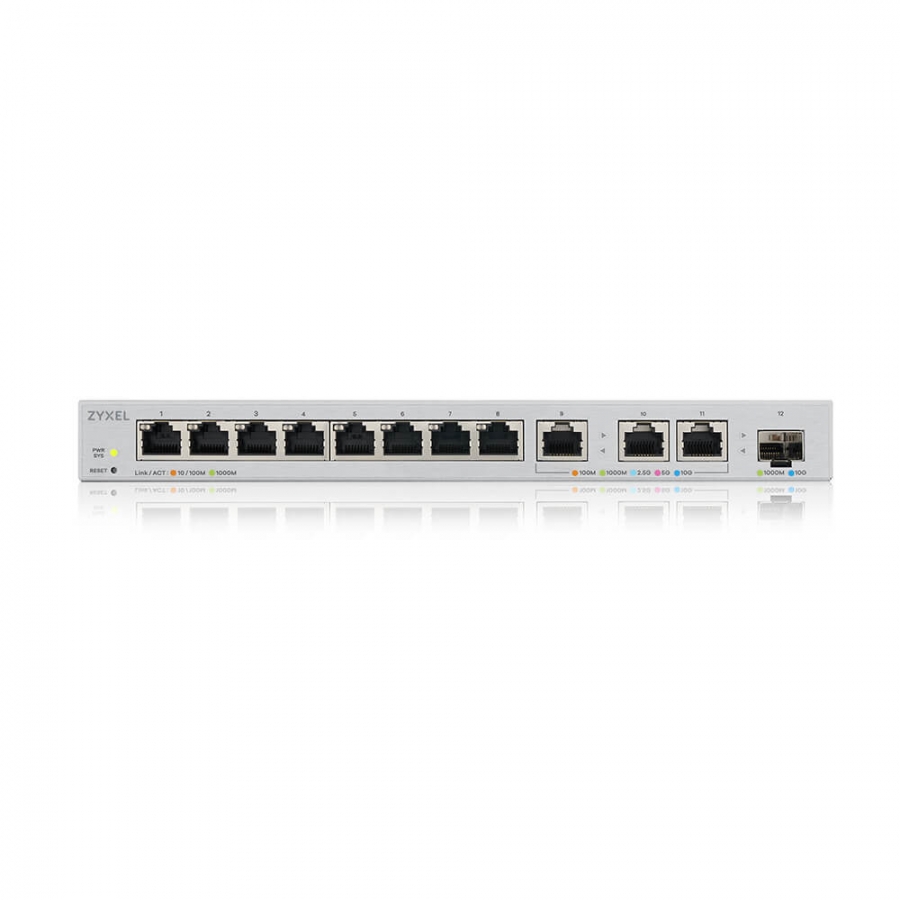

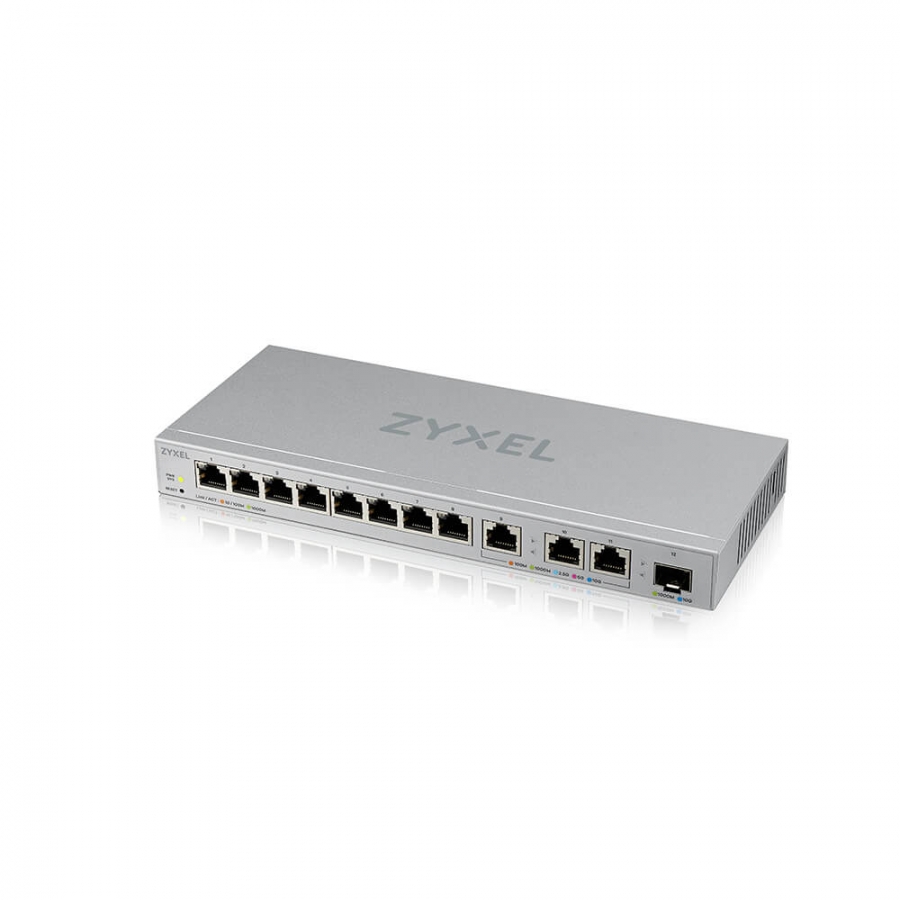

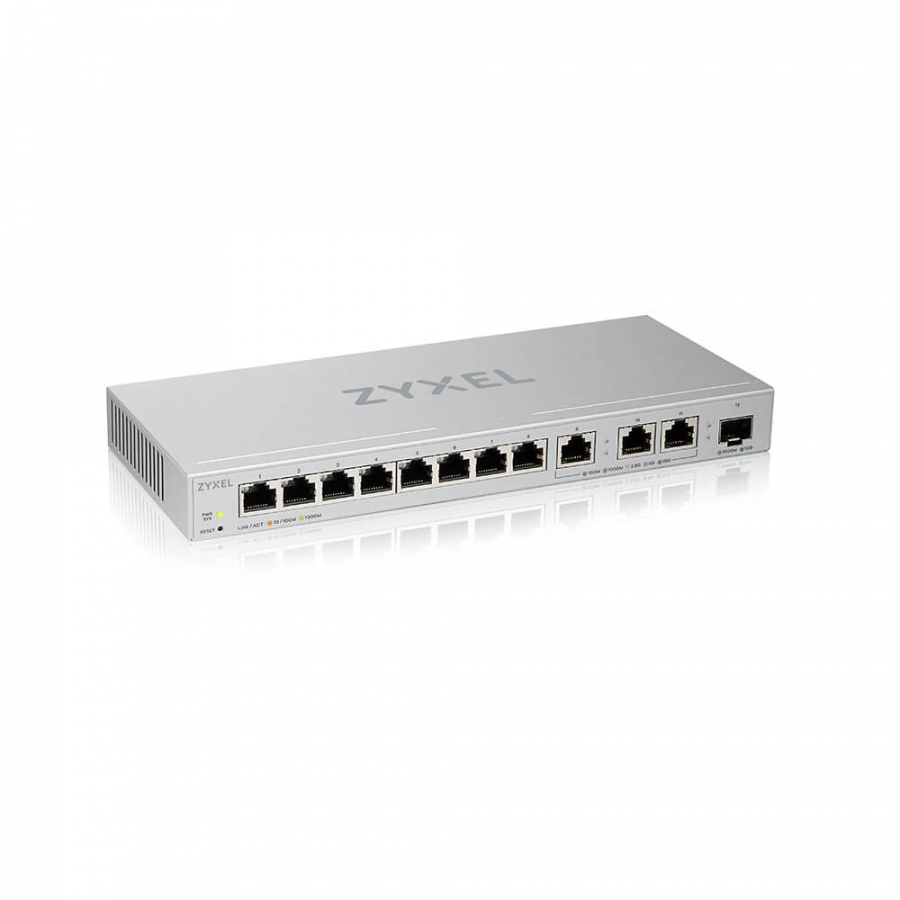

Zyxel Switch 12x GE XGS1250-12 + 3x10G

ZYXEL

XGS1250-12-ZZ0101F

New

Double the 10G Capability! XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.Agile Network Applications Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.Why Multi-Gigabit? Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.Using Your Current Cabling Is Fine! The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.Whisper-silent, Energy-saving at Work The built-in smart fan is designed to automatically adjust speeds based on the device’s temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.Easy Web Management The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It’s the most ideal solution to simplify networks for home and small office users.

Switch typeManaged
Quality of Service (QoS) supportY
Web-based managementY
MIB supportY
Basic switching RJ-45 Ethernet ports quantity11
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity1
Power connectorDC-in jack
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportY
Port mirroringY
Full duplexY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Auto MDI/MDI-XY
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportY
MAC address table16000 entries
Switching capacity96 Gbit/s
Forwarding rate71.42 Mpps
Jumbo frames supportY
Jumbo frames12000
DHCP featuresDHCP client
IGMP snoopingY
Multicast supportY
Product colourGrey
Reset buttonY
LED indicatorsY
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width250 mm
Depth104 mm
Height27 mm
Weight783 g
Harmonized System (HS) code85176990
