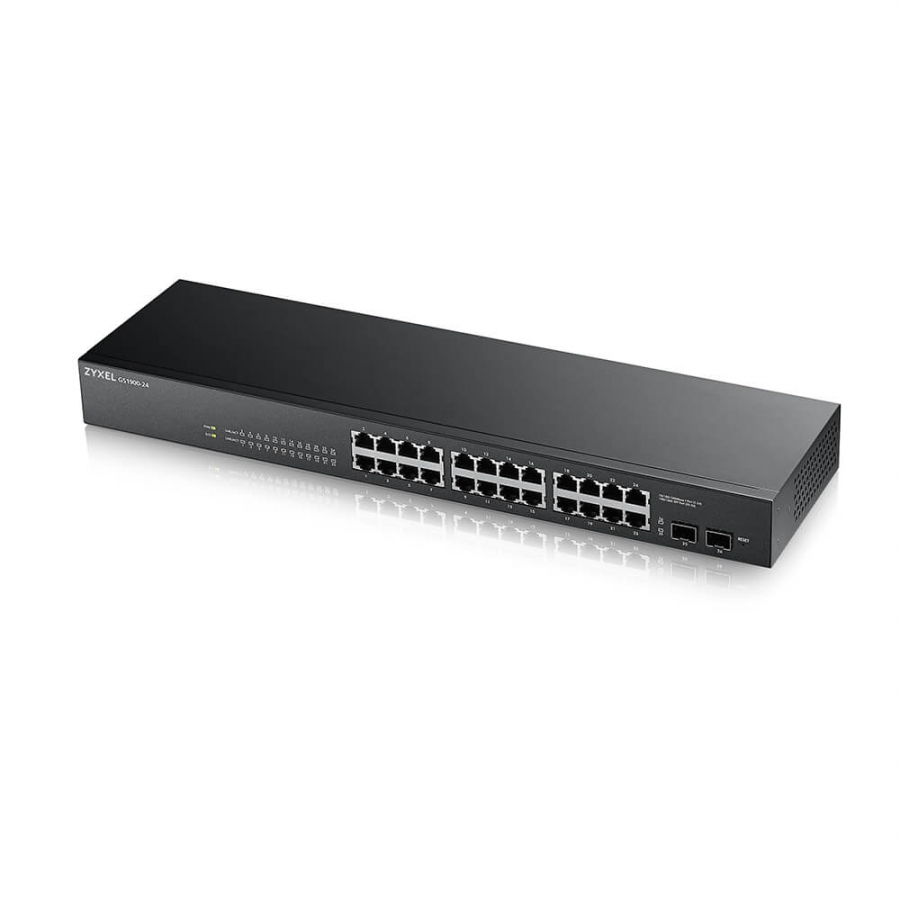

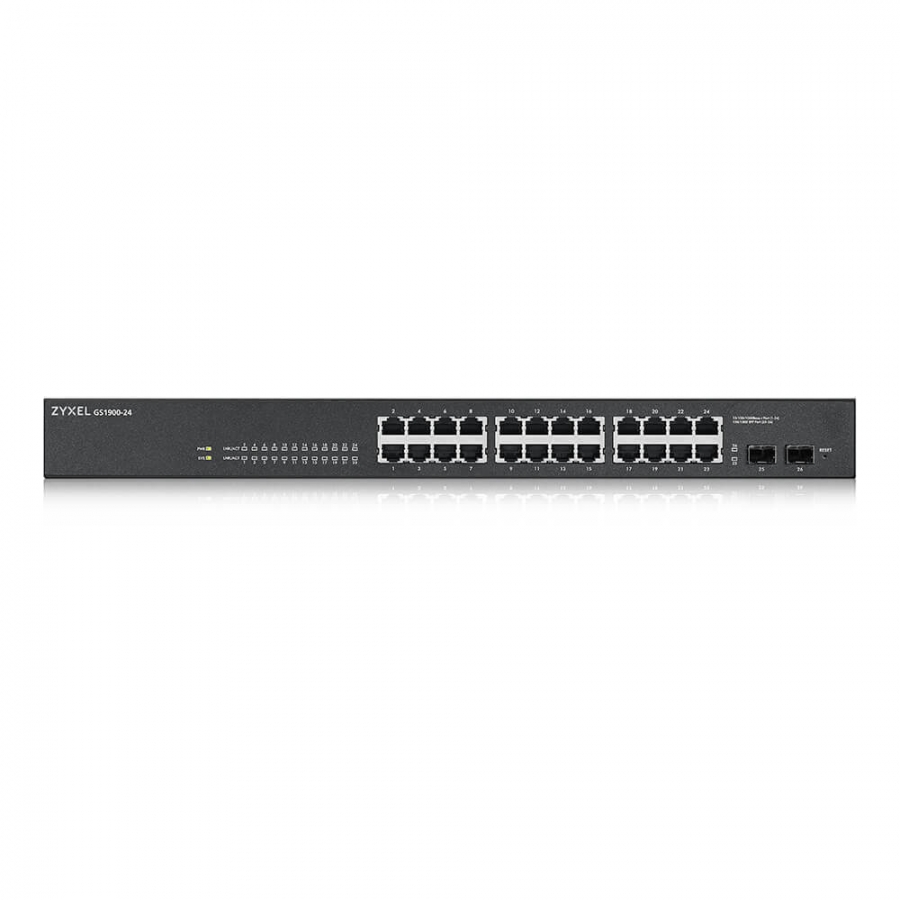

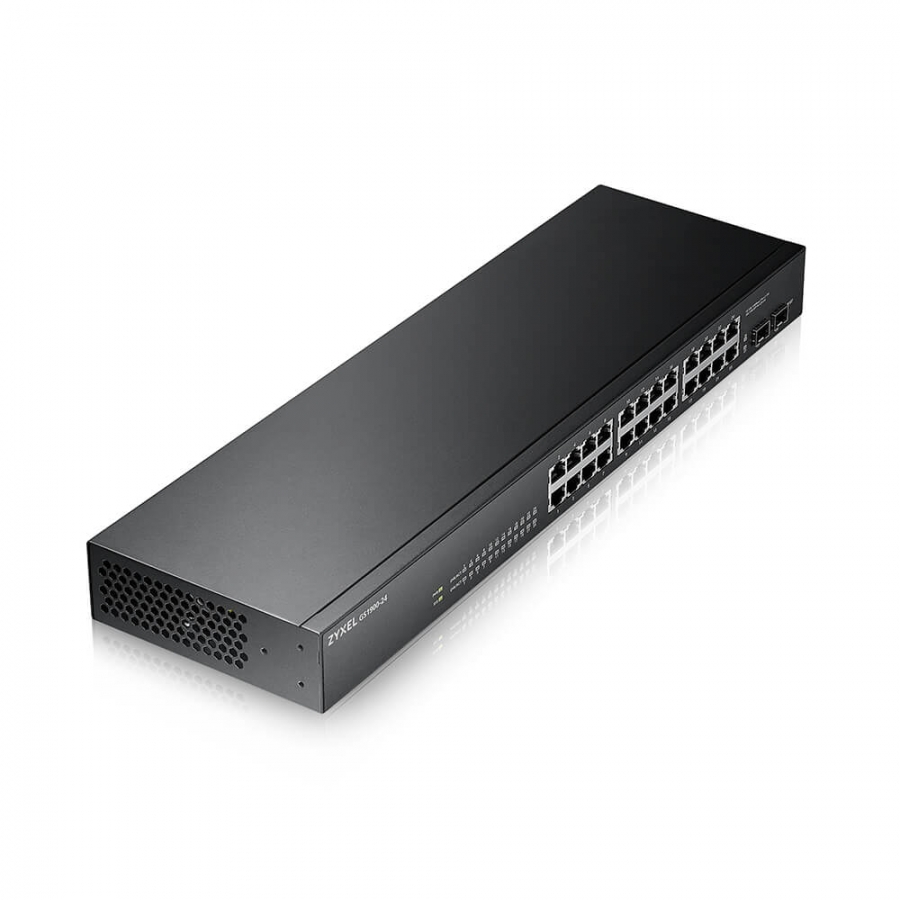

Zyxel Switch 24x GE GS1900-24 V2

Manufacturer: ZYXEL

Reference GS1900-24-EU0102F

Condition: New

More info

Near silent operation The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.Intelligent PoE+ powers more devices PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.Speedy Gigabit performance—built for SMBs The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.Easy and intuitive management The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
System event log	Y
MIB support	RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Spanning tree protocol	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
MAC address auto-learning supported	Y
VLAN support	Y
Virtual LAN features	Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
MAC address table	8000 entries
Switching capacity	52 Gbit/s
Forwarding rate	39 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	0.525 MB
DHCP features	DHCP client
IGMP snooping	Y
Security algorithms	802.1x RADIUS
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
Password protection	Y
Authentication type	RADIUS, TACACS+
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
Reset button	Y
LED indicators	Y
Certification	EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Mean time between failures (MTBF)	432.673 h
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	16 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	55 BTU/h
Width	440 mm
Depth	131 mm
Height	44 mm
Weight	2.09 kg
Cables included	AC
Package type	Box
Rack mount kit	Y
Package width	561 mm
Package depth	217 mm
Package height	82 mm
Package weight	2.85 kg
Harmonized System (HS) code	85176990
