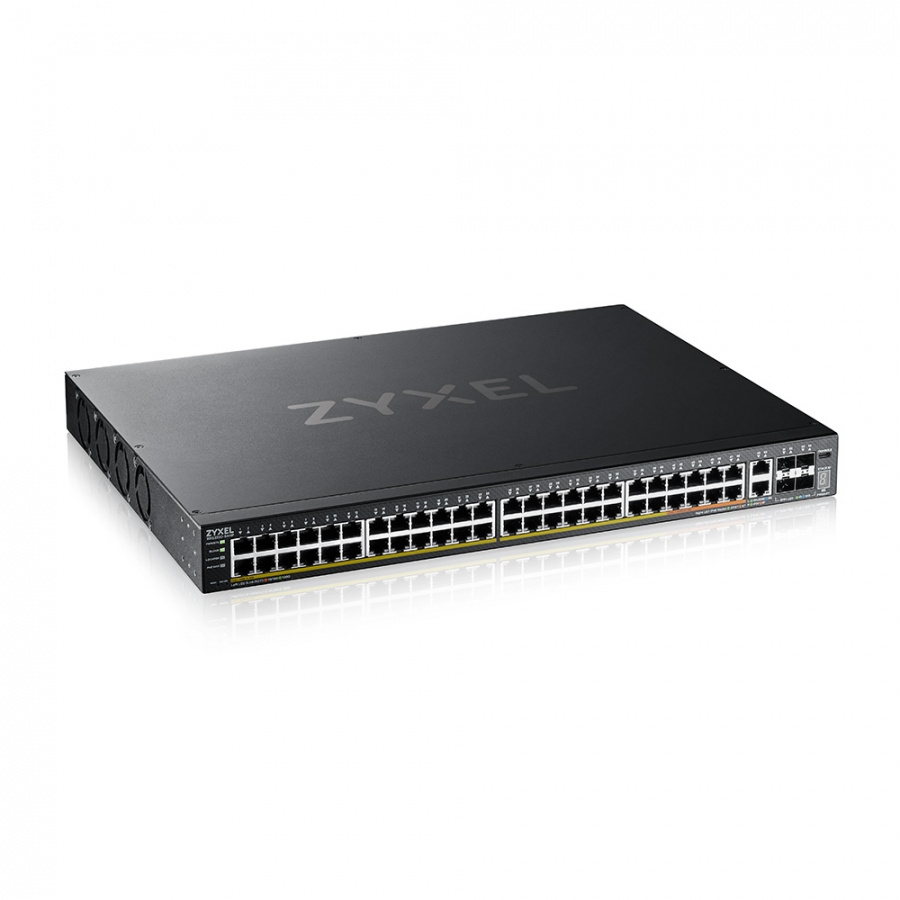

Zyxel XGS2220-54HP Layer3 Access Switch,600W PoE, 48x1G RJ45

ZYXEL

XGS2220-54HP-EU0101F

New

Nebula Cloud-managed Layer 3 Enterprise Switch The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.Flexible 10G For Converged Networking Applications On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.Multiple Power Budget options PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points.Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.Nebula, Manage It Your Way! The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
ARP inspectionY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity4
10G Ethernet (copper) ports quantity2
Networking standardsIEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
10G supportY
Routing entries64
MAC address table32000 entries
Switching capacity216 Gbit/s
Forwarding rate161 Mpps
Jumbo frames supportY
Packet buffer memory2 MB
DHCP featuresDHCP relay, DHCP server
IGMP snoopingY
IGMP proxyY
Authentication typeIEEE 802.1x, RADIUS, TACACS+
Multicast Listener Discovery (MLD) snoopingMLD v1/v2
GARP VLAN Registration Protocol (GVRP)Y
Rack mountingY
Internal memory1024 MB
Flash memory64 MB
Mean time between failures (MTBF)214.388 h
Power sourceAC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)754.11 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity50
Total Power over Ethernet (PoE) budget600 W
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%
Heat dissipation2571.52 BTU/h
Width441 mm
Depth330 mm
Height44 mm
Weight5 kg

Industrial networks
