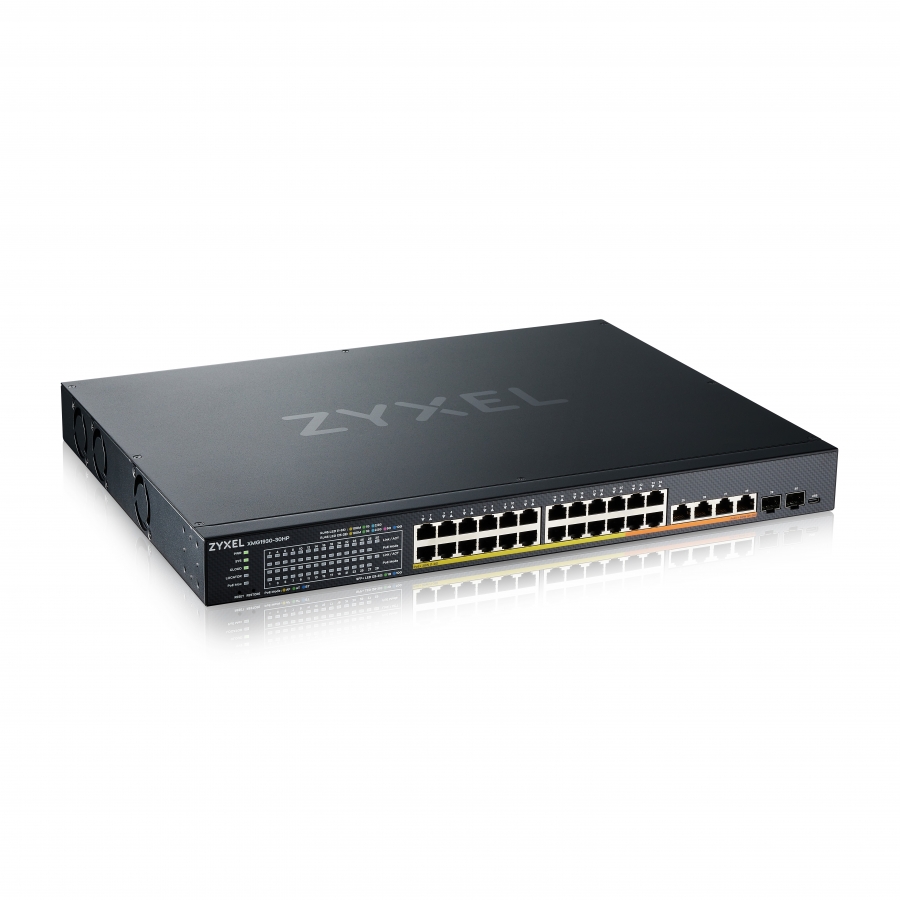

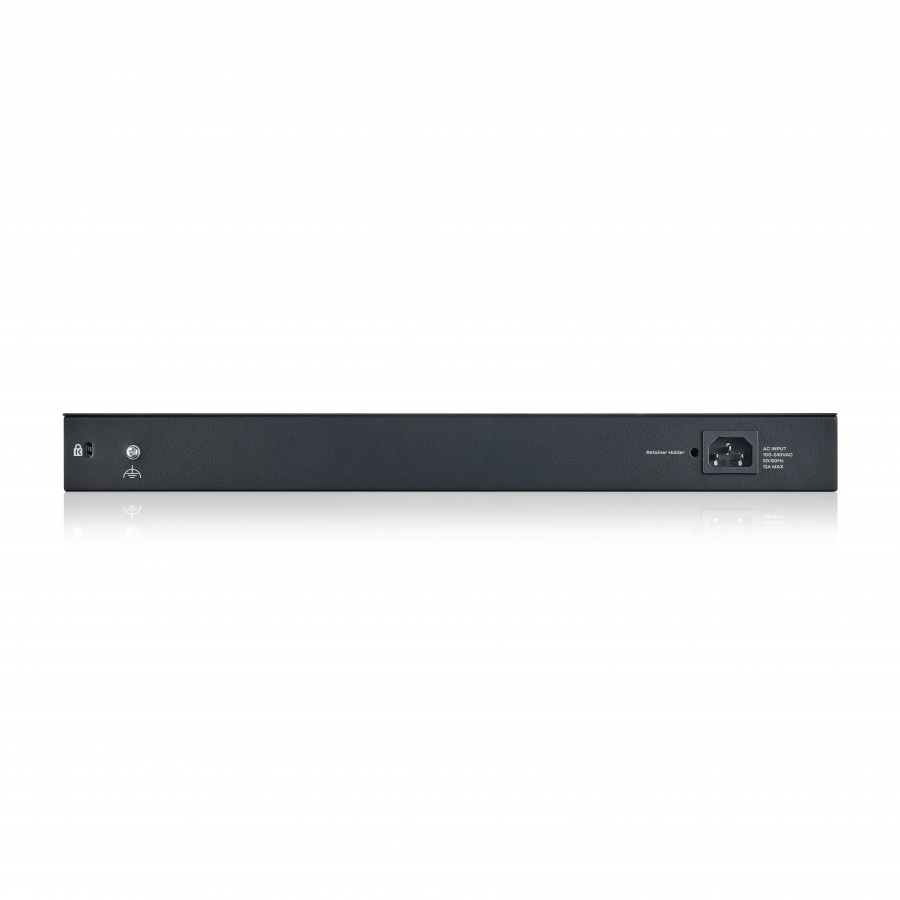

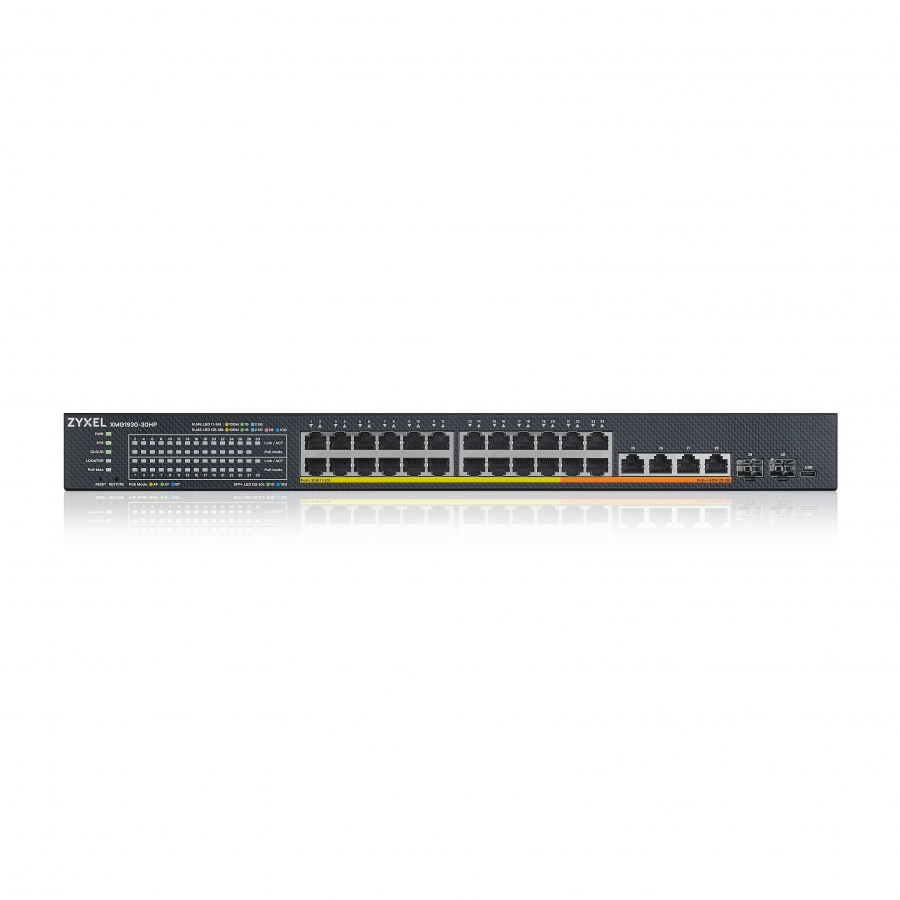

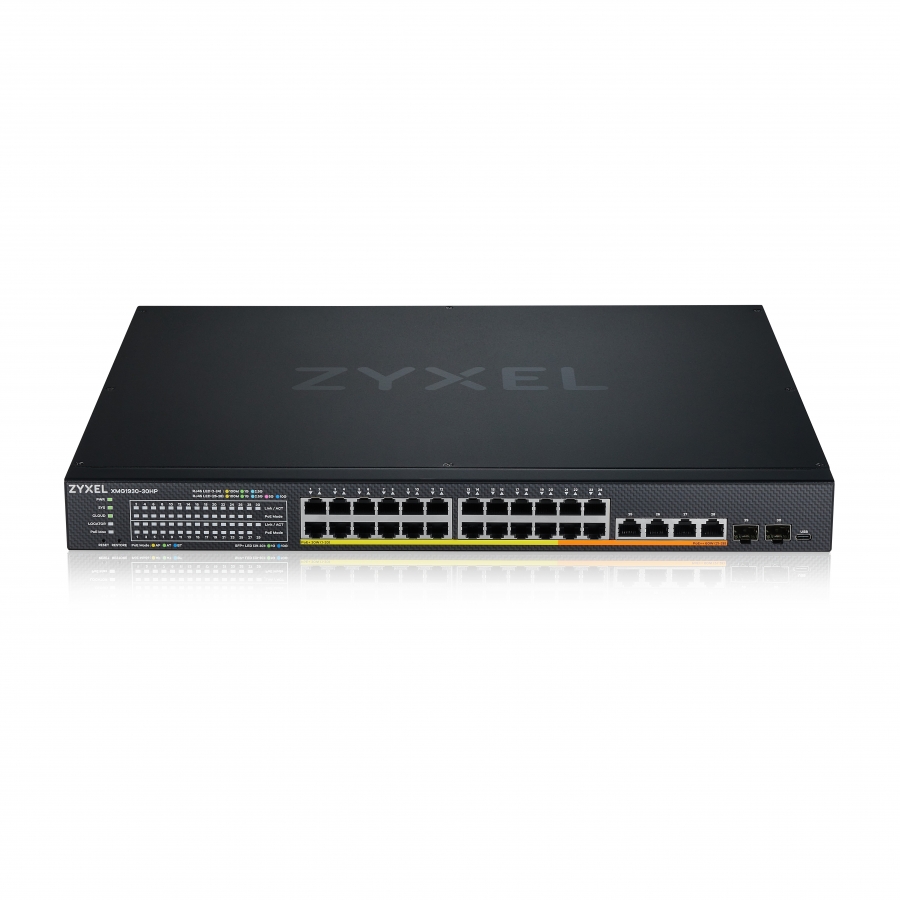

Zyxel Switch 30x XMG1930-30HP MultiGig PoE++ Smart Managed

ZYXEL

XMG1930-30HP-ZZ0101F

New

The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options. On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
Cloud-managedY
Configuring Location Settings (CLI)Y
MIB supportY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity2
10G Ethernet (copper) ports quantity4
Fiber optic connectorSFP+
Power connectorAC-in jack
Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G supportY
Policy-based routingY
Flow control supportY
Broadcast storm controlY
Rate limitingY
Spanning tree protocolY
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportY
Number of VLANs4000
MAC address table16000 entries
Switching capacity240 Gbit/s
Forwarding rate178.5 Mpps
Static routeY
Jumbo frames supportY
Jumbo frames12000
DHCP featuresDHCP client, DHCPv6 relay
Access Control List (ACL)Y
IGMP snoopingY
MAC address filteringY
SSH/SSL supportY
Loop protectionY
Multicast supportY
GARP VLAN Registration Protocol (GVRP)Y
Rack mountingY
Form factor1U
Product colourBlack
Reset buttonY
LED indicatorsY
Mean time between failures (MTBF)587922.31 h
Power sourceAC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)864.1 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity28
Power over Ethernet plus (PoE+) ports quantity20
Total Power over Ethernet (PoE) budget700 W
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Heat dissipation864.1 BTU/h
Width441 mm
Depth330 mm
Height44 mm
Weight4.85 kg
Cables includedAC
Rack mount kitY
