| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Active link detection | Y |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames support | Y |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Rack mounting | Y |

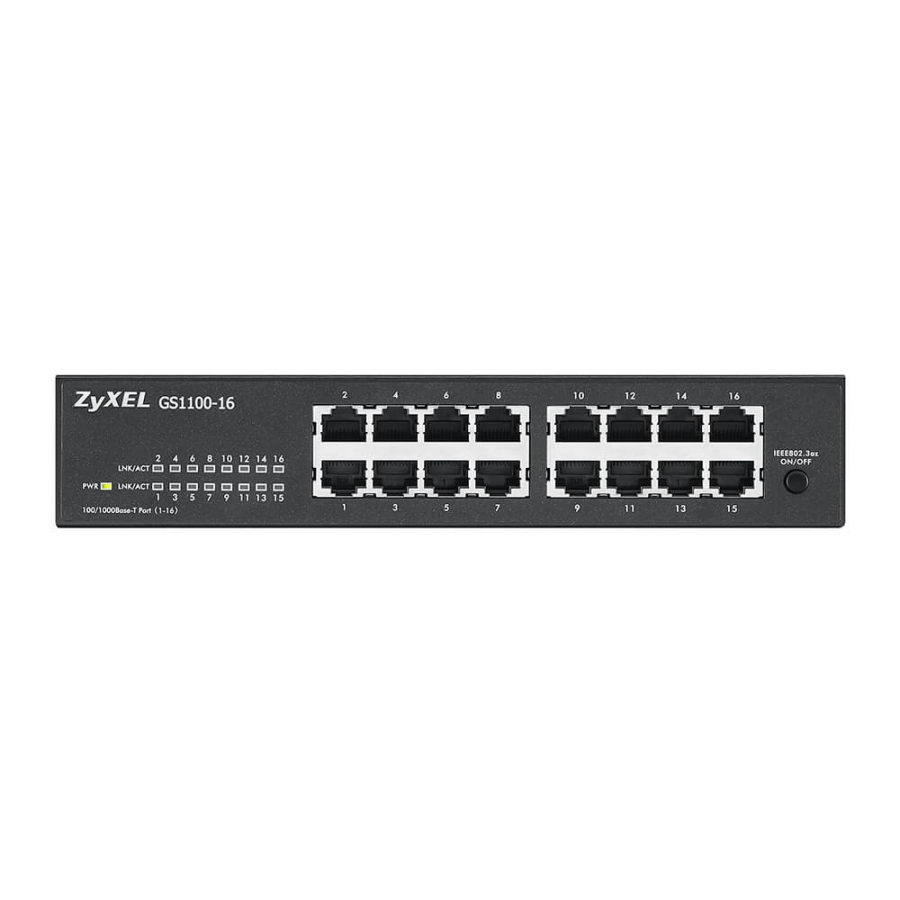

| LED indicators | Activity, Link, Power |
| Wall mountable | Y |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Certification | LVD, BSMI RoHS, REACH |
| Fanless | Y |
| Mean time between failures (MTBF) | 1156942 h |

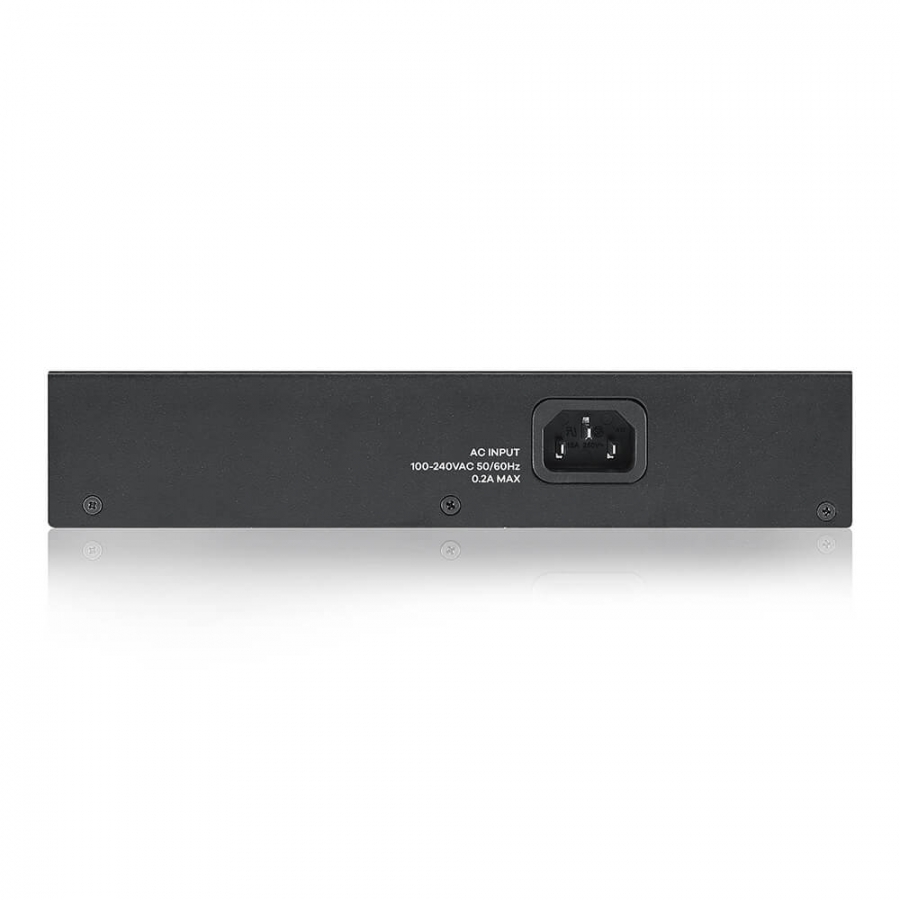

| Power supply included | Y |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 32.86 BTU/h |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 42 mm |
| Weight | 19.8 kg |
| Cables included | AC |
| Package type | Box |
| Rack mount kit | Y |
| Harmonized System (HS) code | 85176990 |
