> >>ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

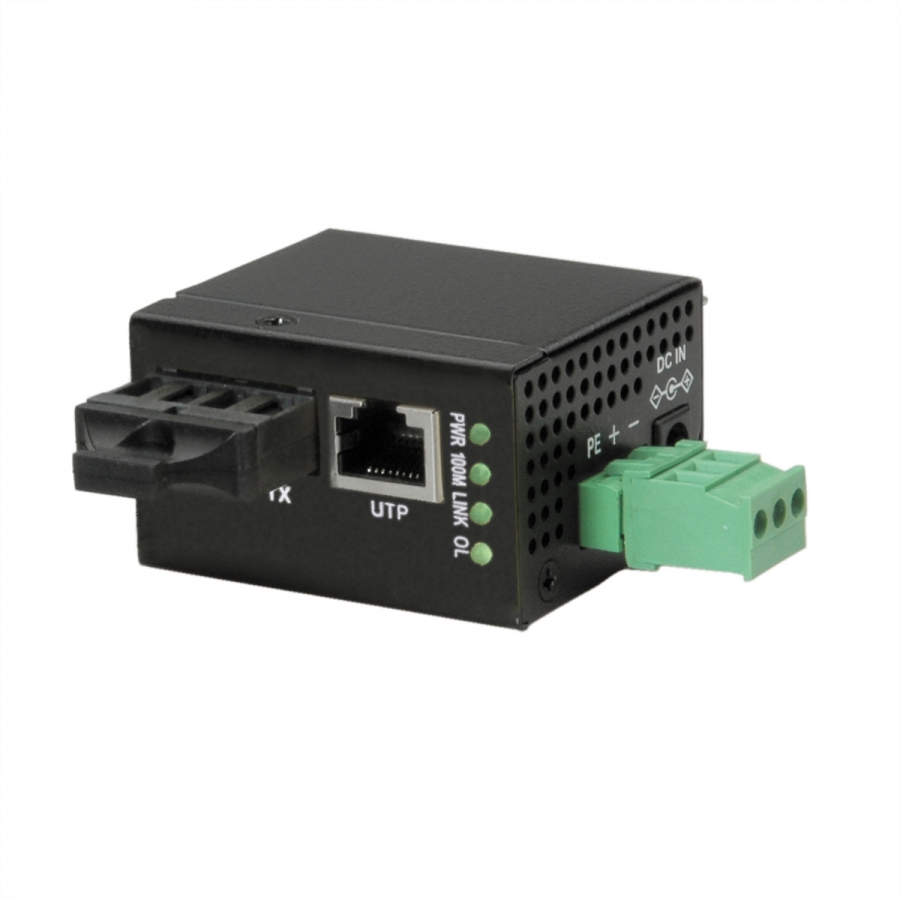

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

ROLINE

21.13.1147

New

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Supports auto-negotiation 10/100Mbps or forced mode on the copper port
  • Auto-MDI/MDIX on the copper port
  • Provides Link Fault Pass Through function
  • Transparent conversion to 802.1Q VLAN tagged packets
  • Provides Far End Fault function on FX (fiber) port
  • The optimal latency for 100Mbit/s to 100Mbit/s conversion
  • Low power consumption
  • Power: Input: +4.5 - 50 VDC, Consumption: 1.6 W@ 7.5 V, 1.6 W@ 12 V, 2 W@ 48 V
  • Supports DIN rail mounting
  • Compact design for easy installation in enclosure and chassis
  • Supports wide operating temperature range
  • Industrial-rated emission and immunity performance
  • DC Input via terminal block or DC power jack
  • Dimensions: 34 x 49 x 56 mm (WxDxH)
  • Operating Temperature: - 20 °C - +70 °C
  • As according power supply unit we recommend 21.13.1226



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
Height56 mm
Width34 mm
Depth49 mm
Weight151.2 g
Height of packaging (single piece)80 mm
Width of packaging (single piece)130 mm
Depth of packaging (single piece)170 mm
Package weight (single piece)0.222 kg
Current catalog editionC22-01.11
