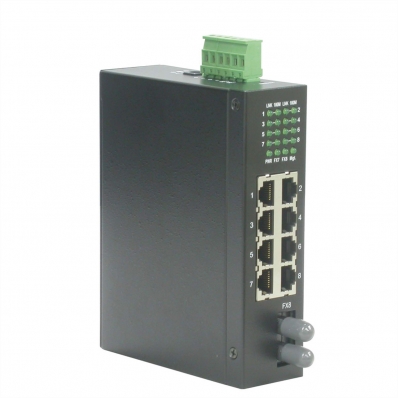

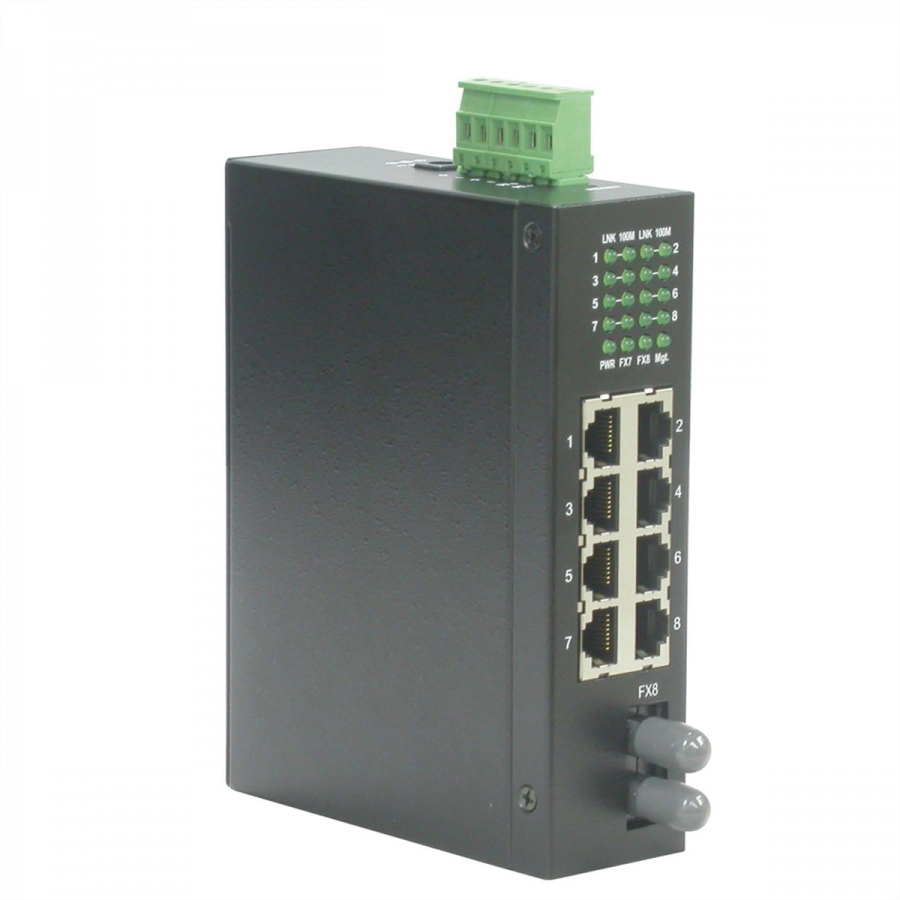

ROLINE Industrial Switch, 7x RJ-45, 1x ST, unmanaged

ROLINE

21.13.1151

New

  • Fast Ethernet switch with 7x 10/100Base-T ports and 1x 100Base-FX port
  • Wide operating temperature range for temperature critical environment
  • Support DIN rail mounting
  • Industrial-rated Emission and Immunity performance
  • Provides wire speed store-and-forward switching
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation
  • Power: Input: 7 - 30V DC, Consumption: 6.5W (max.)
  • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
  • Operating Temperature: - 20 °C - +70 °C
  • As Power Supply Unit we recommend 21.13.1226



ManufacturerROLINE
Product groupNetwork Switches
Product typeFast Ethernet Switch
Colourblack
Network standardFast Ethernet
LAN (Mbps)10/100
Quantity of ports8
Fast Ethernet Ports RJ-457
Fast Ethernet Ports Fibre1
Mounting formDIN Rail
Management
Stackable
Technical particularity- 20 ºC - +70 ºC
Dimensions (HxWxD)106 x 40 x 140 mm
Power supply unit (internal/external)External
height106 mm
width40 mm
depth140 mm
Weight0.64 kg
Current catalog editionC21-01.10
