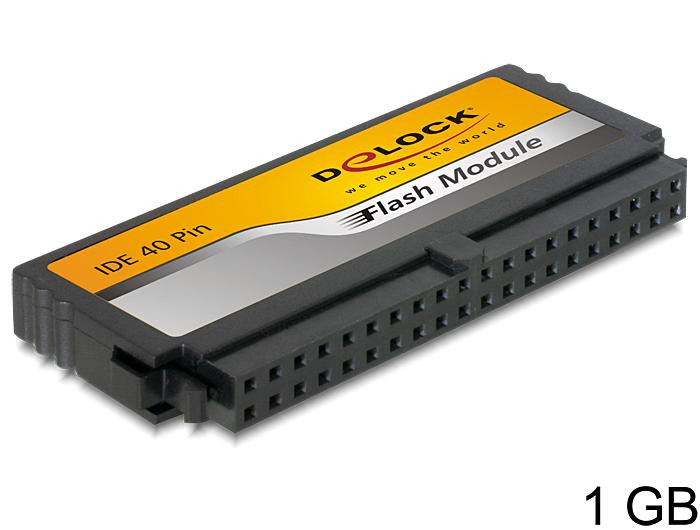

Delock IDE Flash Module 40Pin 1GB Vertical

Reference 54144

Condition: New

Description The Delock 1GB IDE Flash memory module with its dimensions of 5,7 x 2,2 x 0,6cm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy efficienc...

More details

More info

Description

The Delock 1GB IDE Flash memory module with its dimensions of 5,7 x 2,2 x 0,6cm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy efficiency.

Specification

• Storage capacitiy 1GB
• Operating voltage 3.3V or 5V
• Operating temperature: -10Â°C up to +70Â°C
• Endurance 2.000.000 Program / Erase cycles

• Static wear leveling
• Auto Sleep & Power-Down Mode
• Integrated ECC function for high reliability of data transfer rate
• PIO Mode 0-6, MWDMA Mode 0-2, UDMA Mode 0-4
• Speed up to 40MB/s Read, 20MB/s Write
• Power consumption max. 140mA
• MTBF : > 3.000.000 Std.
• Certification: CE, RoHS, WEEE

Package content
• 1GB IDE Flash Modul

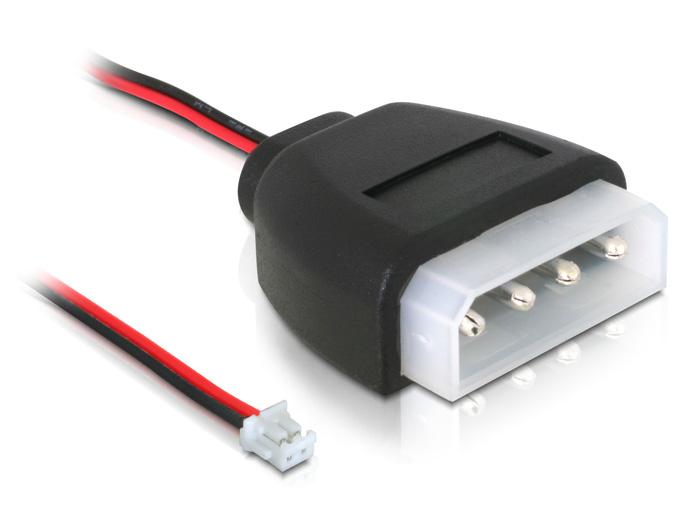

• Power cable

Package
• antistatic cover
