Delock USB 5 Gbps Hub with 7 USB Type-C™ Port with switch thereof 6 x Data Port + 1 x Data and PD 20 Watt

Reference 63410

Condition: New

More info

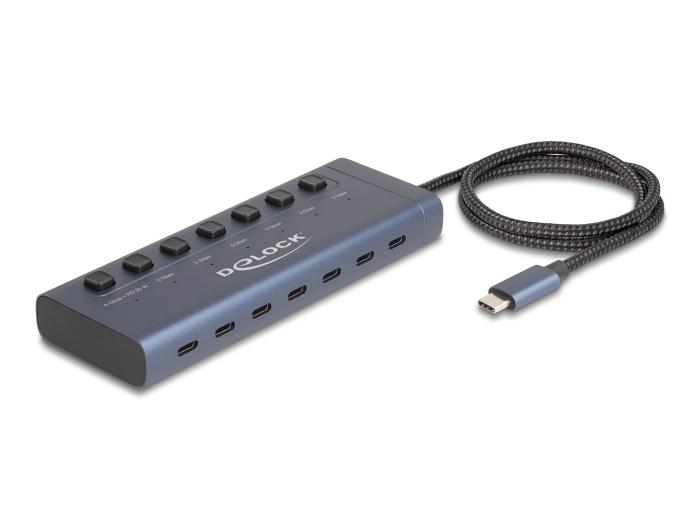

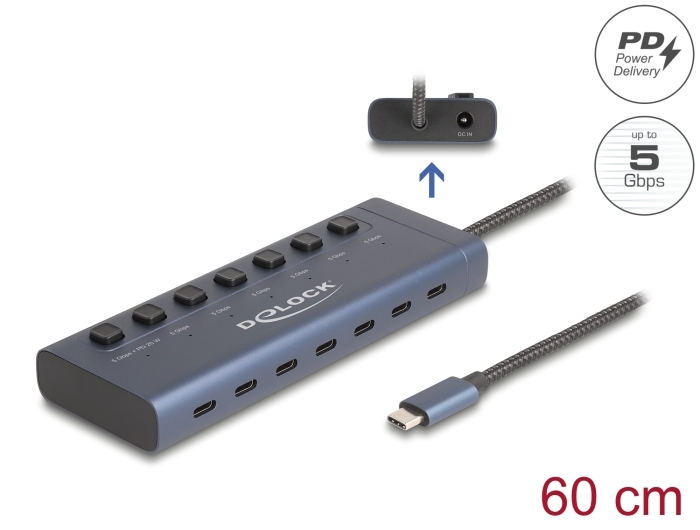

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has seven USB-C™ connectors. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.

USB-C™ PD 3.0 port

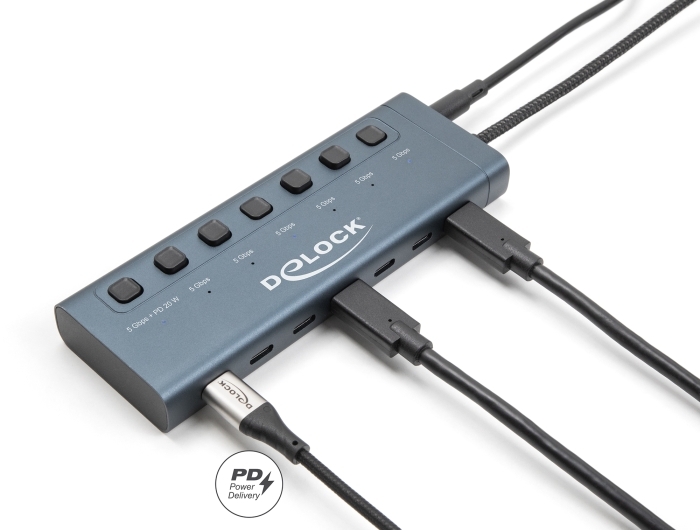

The USB Type-C™ PD port provides up to 20 watts of output power. Connected devices such as smartphones can be charged or data can be transferred at 5 Gbps.

Each port can be turned on or off individually by using the switches.

Note
DisplayPort Alternate Mode (DP Alt Mode) is not supported, so no video signals are transmitted and no monitors can be connected.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB 5 Gbps USB Type-C™ male
  6 x USB 5 Gbps USB Type-C™ female
  1 x USB 5 Gbps USB Type-C™ female PD 3.0 (max. 9 V / 2.22 A)
  1 x 12 V DC jack
• Data transfer rate up to 5 Gbps
• Host device cannot be charged via PD port
• 7 x LED indicator
• 7 x switch
• Robust metal housing
• Electrical power per port: max. 5 watt (5 V / 1 A)
• Colour: midnight blue
• Plug & Play
• Cable length: ca. 60 cm
• Dimensions (LxWxH): ca. 139 x 50 x 17 mm

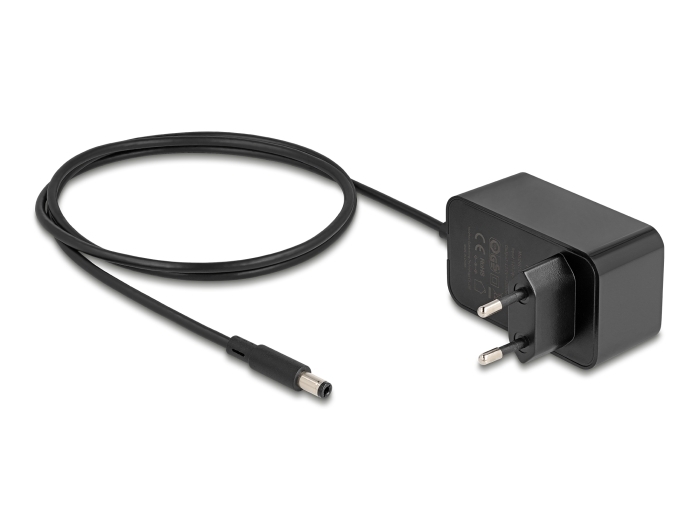

Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 3 A / 36 W
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

Package content:
• Hub USB 5 Gbps
• External power supply
• User manual
