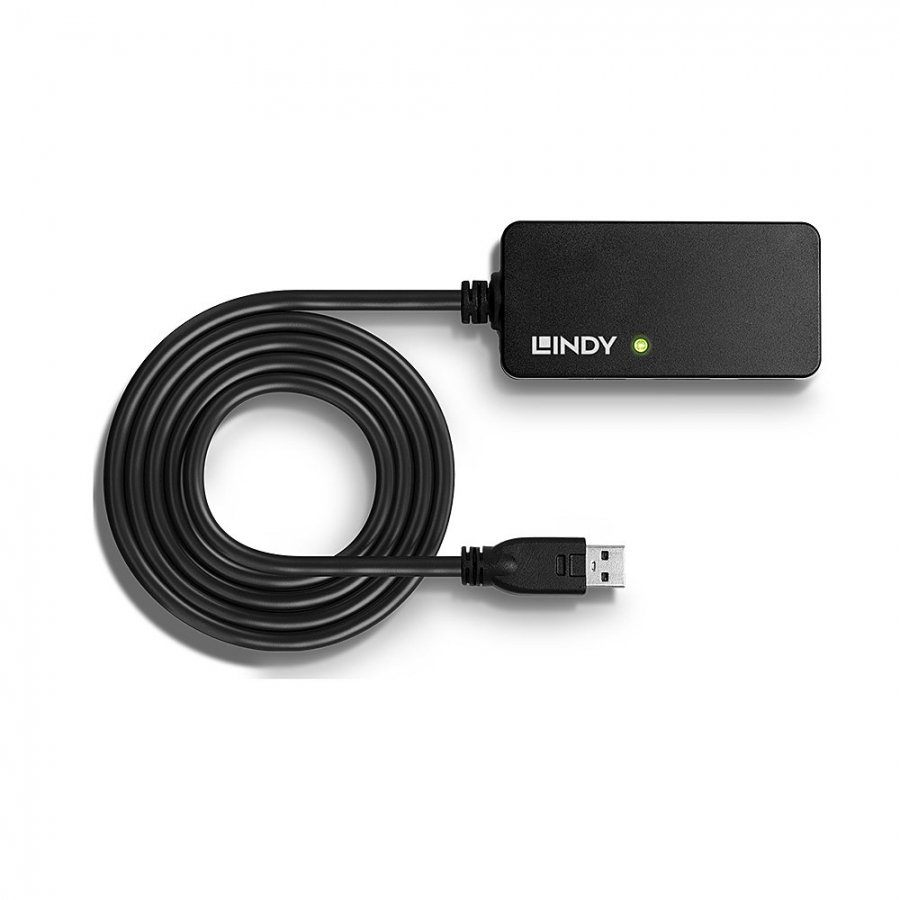

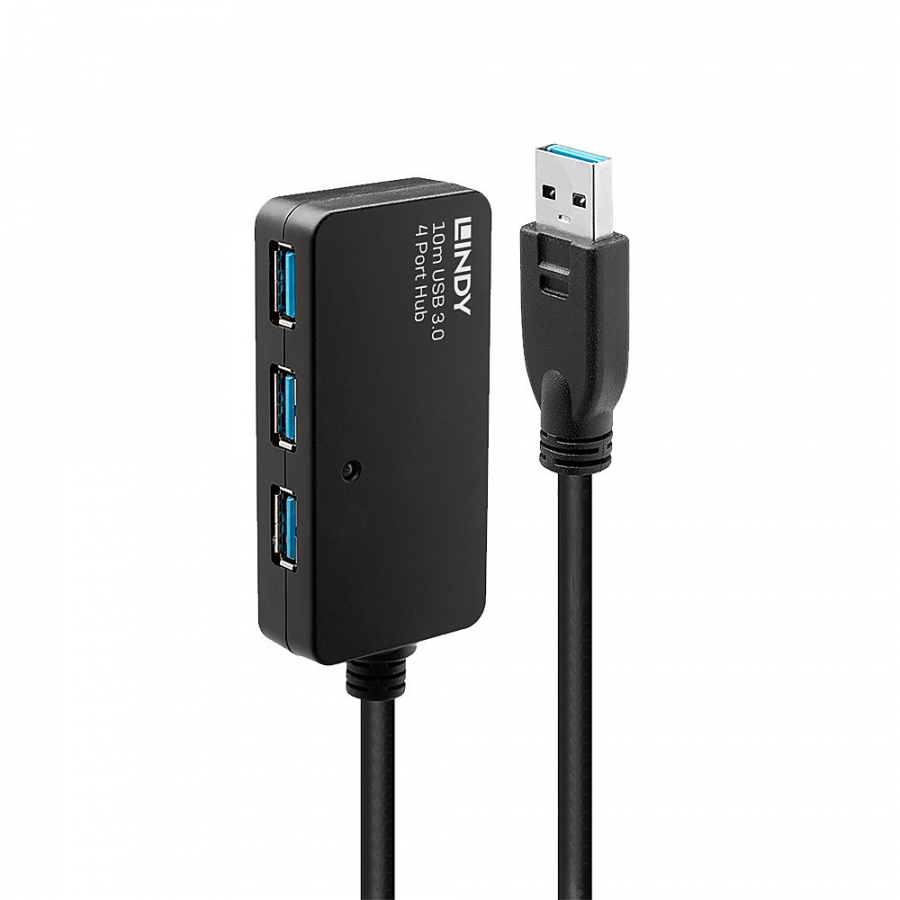

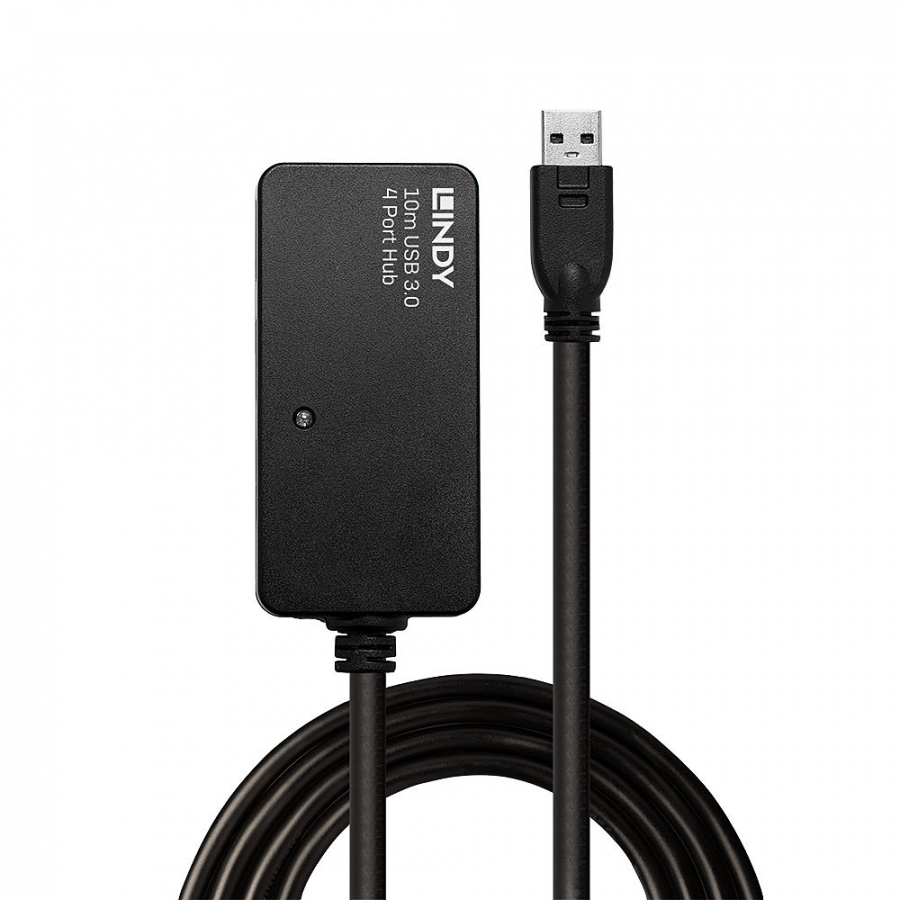

LINDY USB 3.0 Aktiv-Verlängerungs-Hub Pro 4 Port 10m

Reference 43159

Condition: New

More info

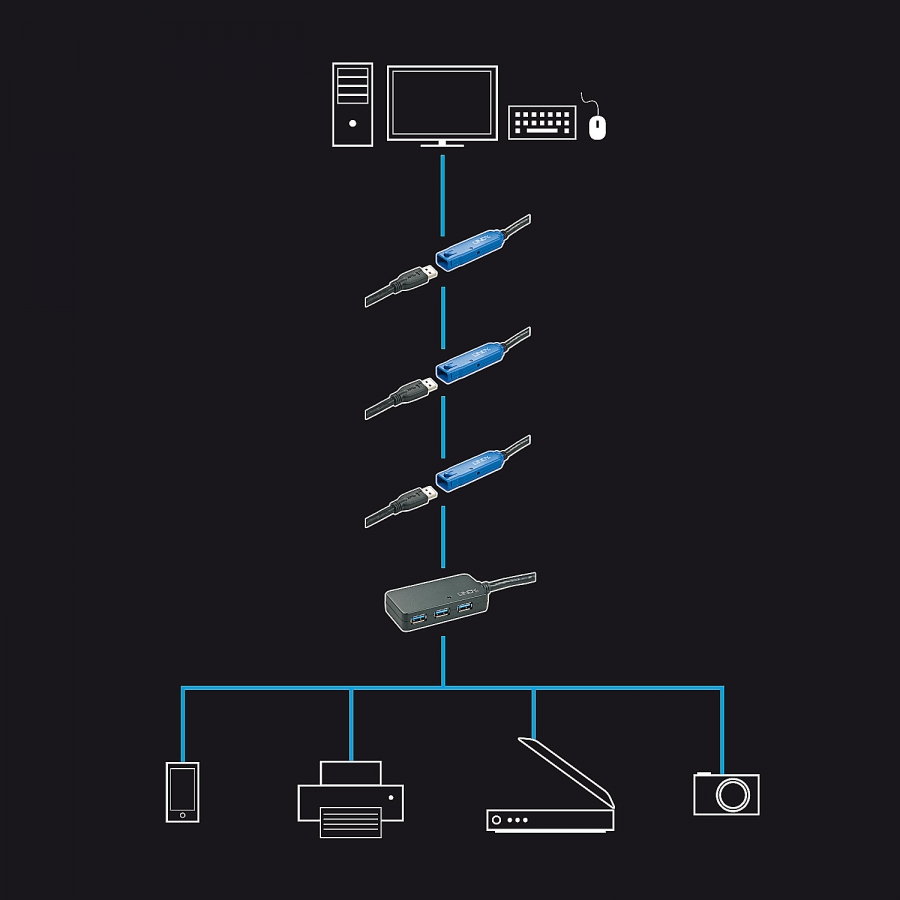

High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used) Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps Easy to use – connects to the device’s existing USB cable (5m maximum) 2 year warrantyThe Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.This 10m extension hub can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.Information about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Ports quantity	4
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DC-in jack	Y
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Plastic
LED indicators	Y
Cable type	Round cable
Plating material	Nickel
AWG wire size	24/24/20
Cable jacket material	Polyvinyl chloride (PVC)
Cable length	10 m
Cable diameter	7 mm
Conductor material	Tinned copper
Contact material	Brass
Connector contacts plating	Gold
Plug and Play	Y
Bend radius (min)	3.6 cm
Transmission medium	Twisted pair
Nominal attenuation	0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Power note	3.5/1.35mm DC
Width	80 mm
Depth	38 mm
Height	15 mm
Weight	790 g
Connector 1 dimensions (WxDxH)	15 x 42 x 8 mm
Quantity per pack	1 pc(s)
Package width	240 mm
Package depth	200 mm
Package height	70 mm
Package weight	900 g
Package type	Box
Manual	Y
Operating temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-20 - 60 °F
Cable shielding	Aluminum mylar foil
Harmonized System (HS) code	84719000
