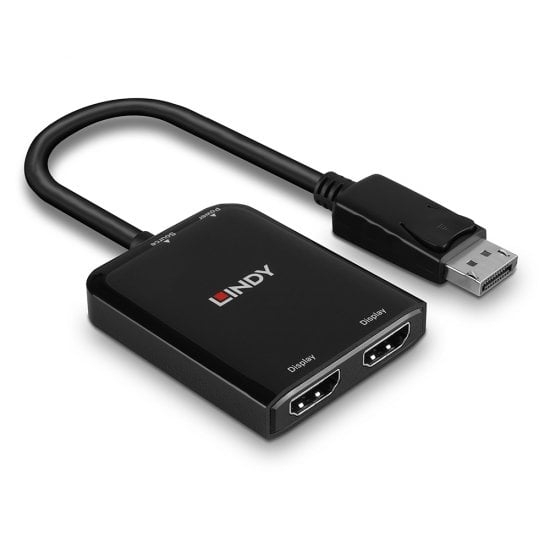

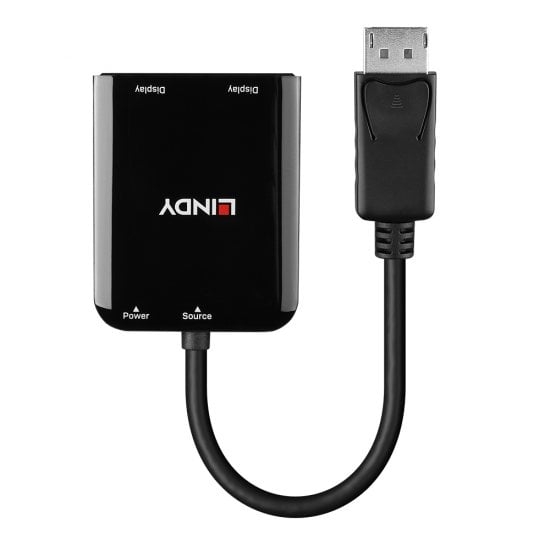

LINDY DisplayPort auf 2 Port HDMI MST Hub

Lindy

38433

New

DisplayPort to 2 Port HDMI MST Hub The Lindy DP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 HDMI monitors or TVs. MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signalsPlease note: This hub is not compatible with Apple products

Connector 1DisplayPort
Connector 22 x HDMI
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
HDMI version2.0
HDCPY
HDCP version1.4
DisplayPort version1.2
Maximum resolution3840 x 2160 pixels
Supported graphics resolutions3840 x 2160
Data transfer rate21.6 Gbit/s
Maximum refresh rate30 Hz
Audio Return Channel (ARC)Y
Supported audio channels7.1
CertificationCE, UKCA, FCC, RoHS and REACH
Operating temperature (T-T)-20 - 40 °C
Storage temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)5 - 90%
Width254 mm
Depth49 mm
Height10 mm
Quantity per pack1 pc(s)
Package width174 mm
Package depth194 mm
Package height10 mm
Package typePolybag
Package weight59 g
