Delock 3.5″ USB 3.2 Gen 1 Front Panel 1 x USB Type-C™ + 2 x USB Type-A + SD and Micro SD slot

Reference 64058

Condition: New

More info

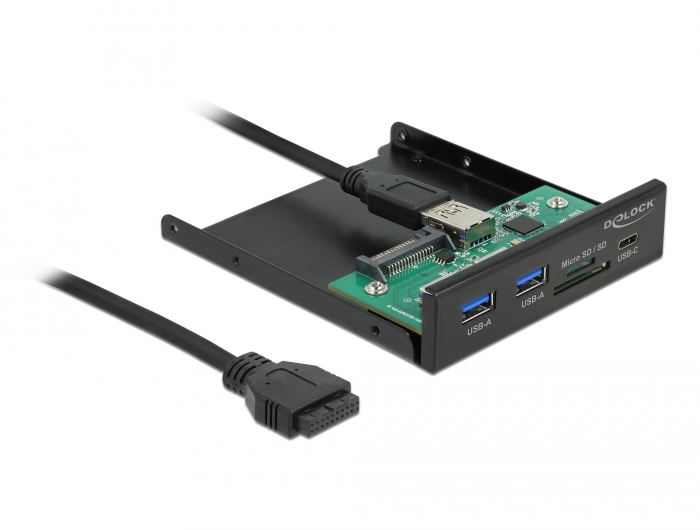

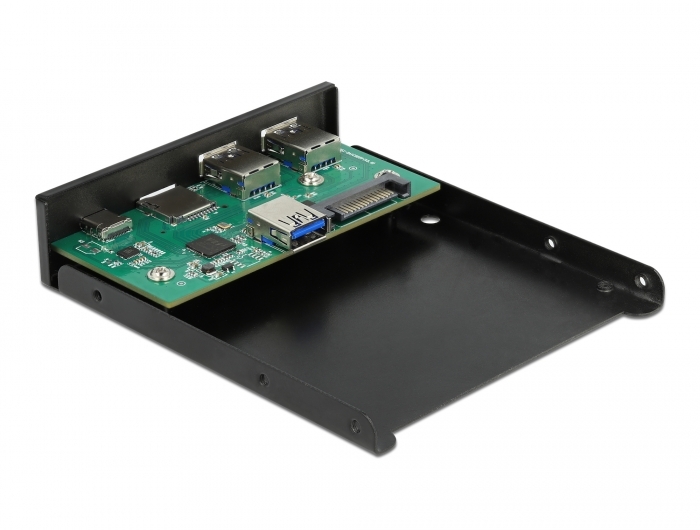

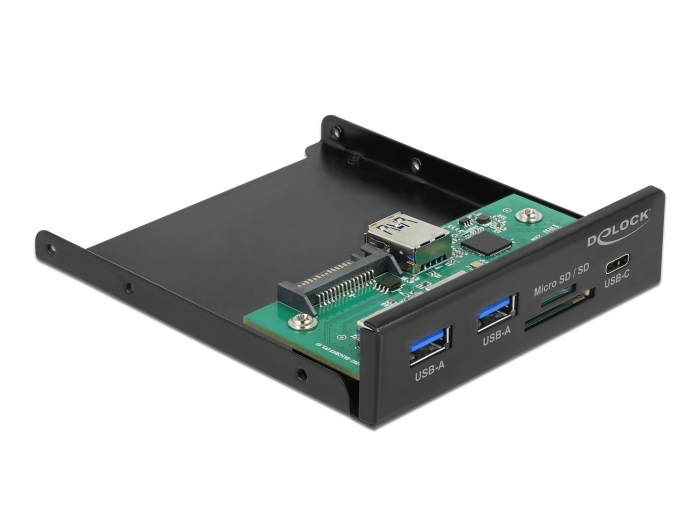

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 3.2 Gen 1 Type-A and one USB 3.2 Gen 1 Type-C port. It will be connected to the motherboard internally via a pin header male port.

Integrated Card Reader
In addition, the hub with integrated card reader expands the PC by an SD and a Micro SD slot.

System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB pin header male
• Power supply with SATA 15 pin receptacle

Specification:
• Connectors:
  external:
    1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ female
    2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
    1 x SD slot
    1 x Micro SD slot
  internal:
    1 x 19 pin USB pin header female port on the cable
    1 x SATA 15 pin power connector
• Chipset: VIA VL817, Genesys Logic GL3224
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
  1. Slot Secure Digital
  SD, SD3.0 UHS-I, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, MMC-I,
MMC-II, MMC 4.0, Mini SD, Mini SDHC, MMCmobile, RS-MMC, RS-MMC 4.0
  2. Slot Micro Secure Digital
  MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• Cable data:
  1 x 19 pin USB pin header female cable, length ca. 54 cm (without connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play

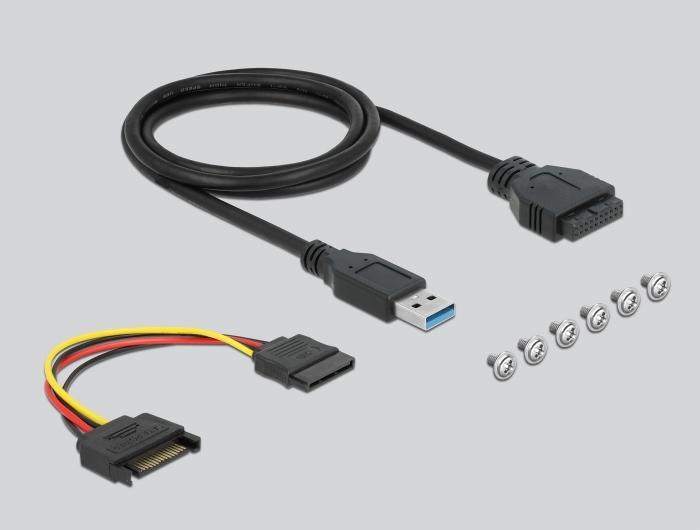

Package content:
• 3.5″ front panel
• USB pin header female cable
• Screws
• User manual
