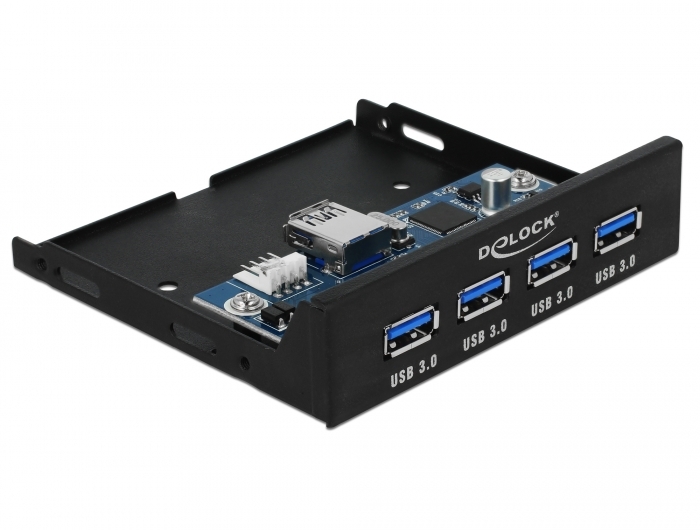

Delock Internal 3.5″ USB 3.0 Hub 4 port

DELOCK

63961

New

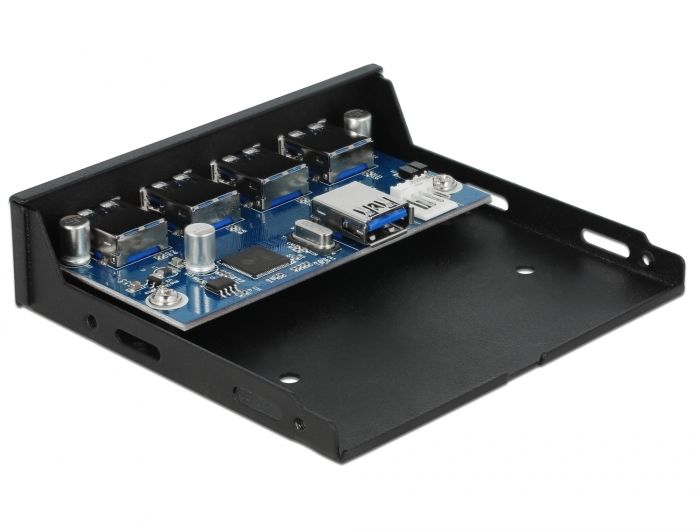

This hub by Delock can be installed into a 3.5″ bay of the PC. It will be connected internally via a USB 3.0 pin header male on the motherboard. Up to four USB devices, as e.g. docking stations, card reader, external enclosures etc. can be connected.
System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB 3.0 pin header male
• Power supply with SATA 15 pin receptacle
Specification:
• Connectors:
  external:
  4 x USB 3.0 Type-A female
  internal:
  1 x USB 3.0 Type-A female
  1 x 4 pin plug
• Chipset: Genesys Logic GL3520
• Data transfer rate up to 5 Gbps
• Cable data:

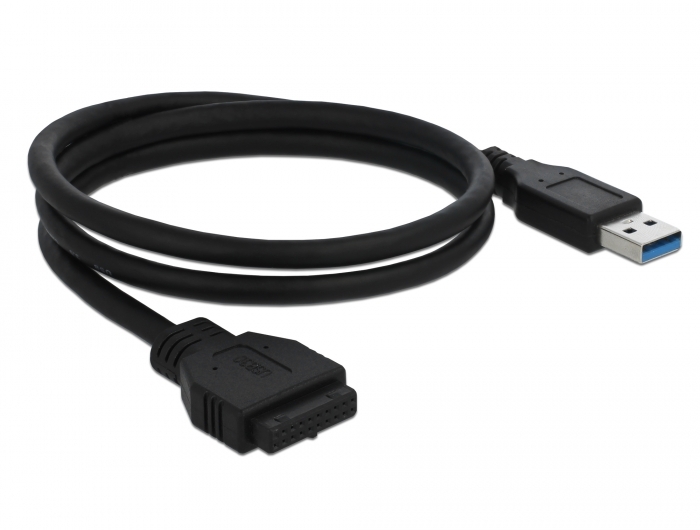

  1 x USB 3.0 Type-A male to 1 x 19 pin USB 3.0 pin header female,
  length ca. 74 cm (without connectors)
  1 x power cable 4 pin female to 1 x SATA 15 pin plug,
  length ca. 17 cm (without connectors)
• Colour: black
• Plug & Play
• Dimensions (LxWxH): ca. 102 x 95 x 26 mm
Package content:
• 3.5″ Hub USB 3.0
• USB 3.0 cable
• Power cable

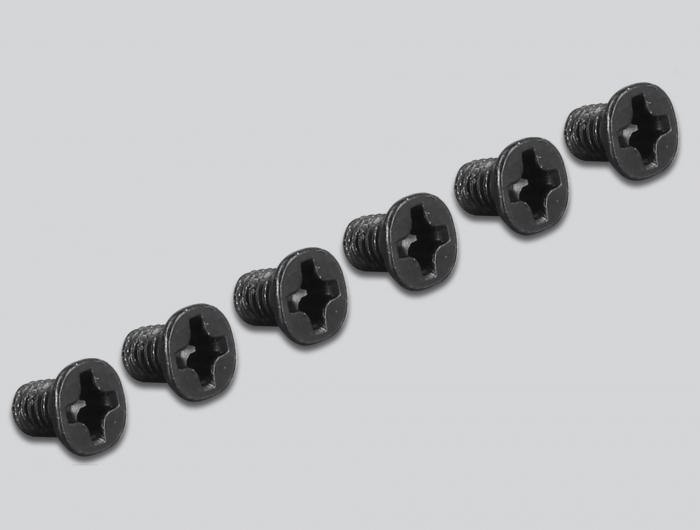

• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/63961/pdf.html?sprache=en
