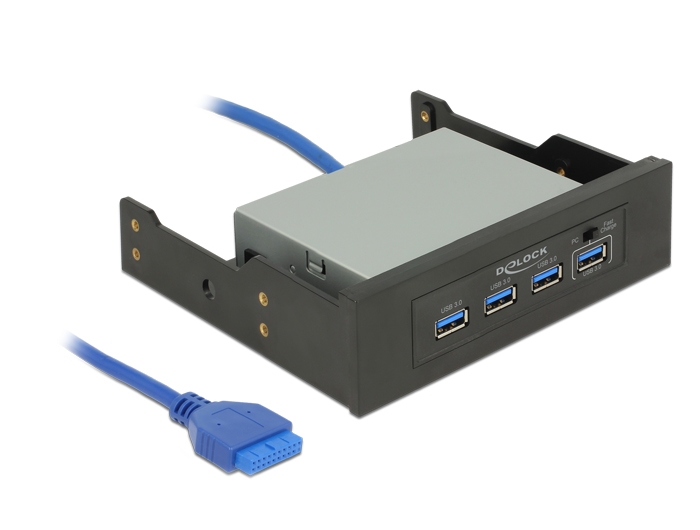

Delock 3.5″ / 5.25″ USB 3.0 Hub 4 Port

Reference 62903

Condition: New

More info

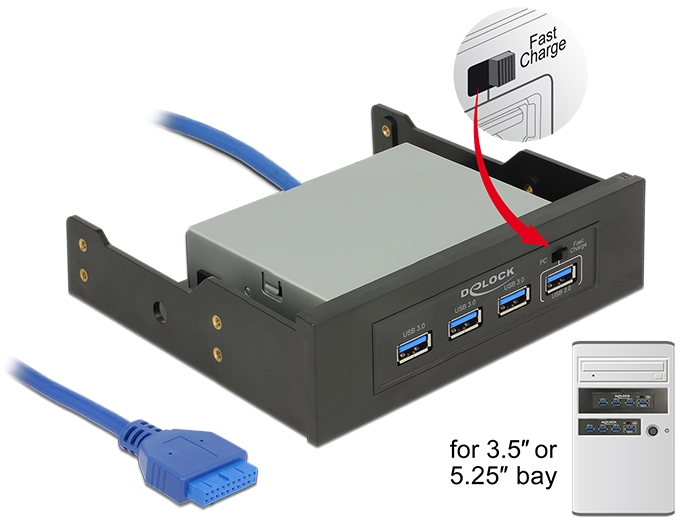

This hub by Delock can be installed into a 3.5″ or 5.25″ bay of the PC. It will be connected internally via a USB 3.0 pin header male on the motherboard. Up to four USB devices, e.g. docking stations, card readers, external enclosures etc. can be connected. One USB 3.0 Type-A female supports the Battery Charging and Fast Charge function, e.g. to charge a smartphone faster. The slide switch can be used to select whether this port is to be used as a fast charging port or as a data port with a simple charging function.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.x / Kernel 4.x.x, Mac OS 10.9
• PC with a free 3.5″ or 5.25″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Power supply with a free 4 pin Molex or 15 pin SATA power connector

Specification:
• Connectors:
external:
    3 x USB 3.0 Type-A female
    1 x USB 3.0 Type-A female - Battery Charging specification BC1.2
internal:
    1 x USB 3.0 Type-B female
    1 x 4 pin power connector
    1 x SATA 15 pin power connector
• 1 slide switch for the Battery Charging Port
• Chipset: VLI VL811
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Cable data: 1 x USB 3.0 Type-B female to 1 x 19 pin USB 3.0 pin header female,
length ca. 62 cm
• Hot Swap, Plug & Play

Package content:
• 3.5″ Hub USB 3.0
• 5.25″ frame
• USB 3.0 cable

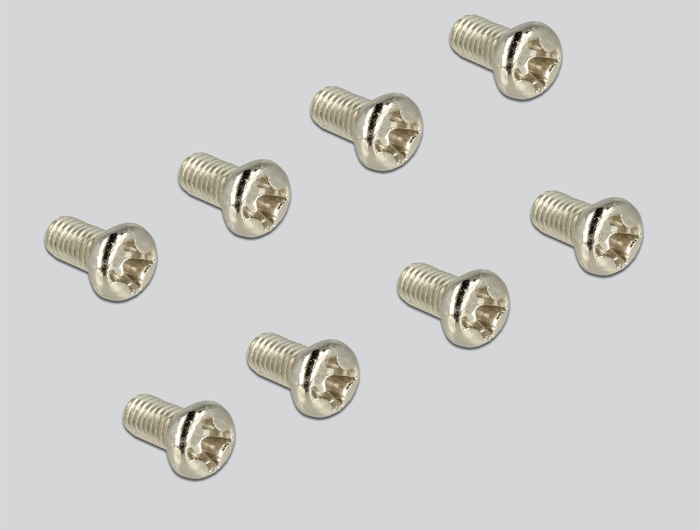

• Screws
• User manual
