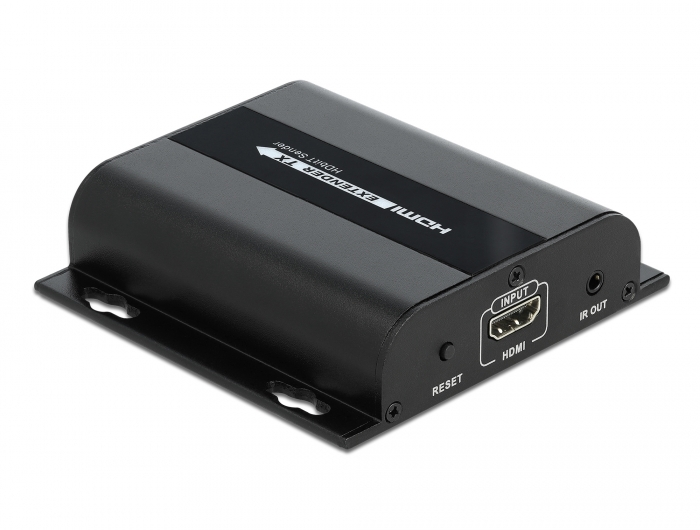

Delock HDMI Transmitter for Video over IP

Reference 65950

Condition: New

More info

This video extender system by Delock allows video signals to be transmitted over an IP network. The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively both devices can be connected via a switch, the distance between the source and the display device can then be 200 m.

HDBitT
The HDBitT technology allows different transmitters and receivers to be combined with each other, e.g. a DisplayPort transmitter with an HDMI receiver. Optionally, several receivers can be operated simultaneously.

System requirements:
• Connection cables
• Receiver for video over IP
• Switch with VLAN or IGMP snooping

Specification:

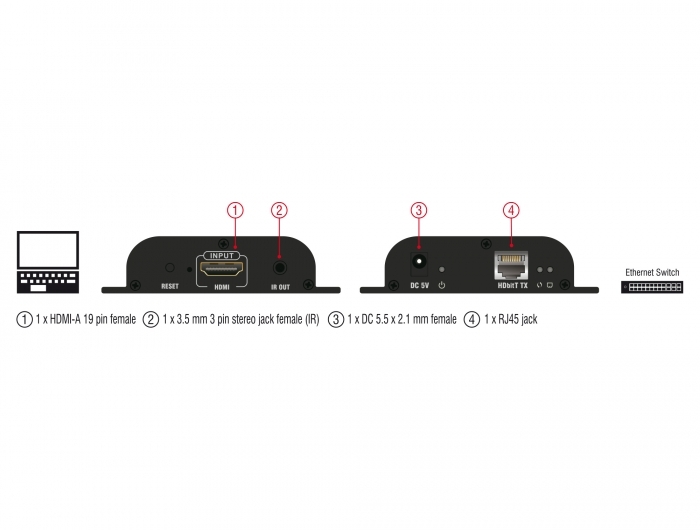

• Connectors:
  1 x RJ45 jack
  1 x HDMI-A 19 pin female
  1 x 3.5 mm 3 pin stereo jack female (IR)
  1 x DC 5.5 x 2.1 mm female
• Transmission of audio and video signals
• Transmission of IR signals 20 - 60 kHz
• Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Supports RTP Multicast
• Supports One-to-one and One-to-many connections
• Latency: ca. 400 ms
• Power consumption: max. 3.5 W
• Robust metal housing
• Wallmount option
• Dimensions (LxWxH): ca. 97 x 94 x 24 mm

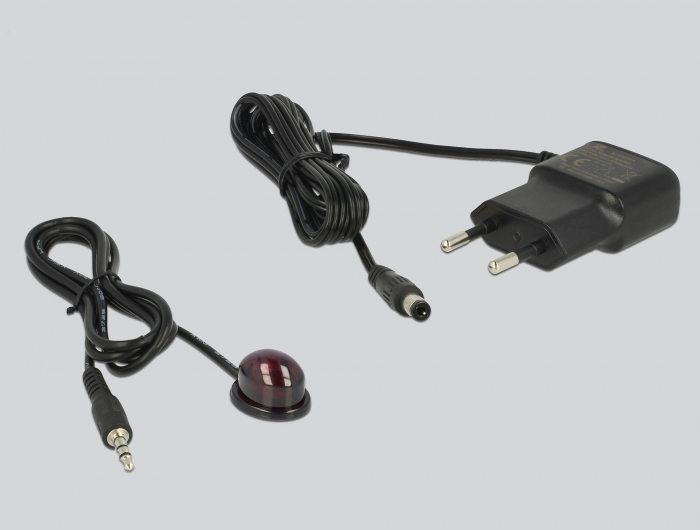

Package content:
• HDMI transmitter
• Infrared transmitter
• Power supply
• User manual
