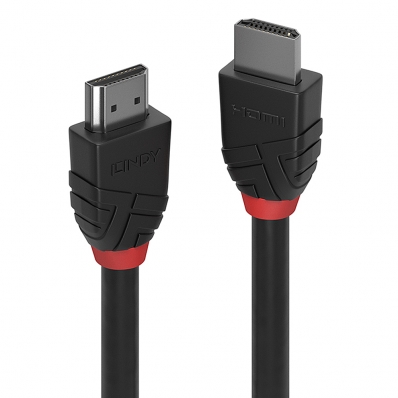

Entry level High Speed HDMI 2.0 cable for home and small office applications Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit Robust PVC housing, nickel connectors, 24K gold plated contacts Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; 10 year warrantyFrom the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD.The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.Black Line HDMI cables are available in lengths from 0.5m, 1m, 2m, 3m and 5m
|
| Cable length | 5 m | | Connector 1 | HDMI Type A (Standard) | | Connector 2 | HDMI Type A (Standard) | | Connector 1 gender | Male | | Connector 2 gender | Male | | Product colour | Black | | Connector contacts plating | Gold | | Quantity per pack | 1 pc(s) | | Connector 1 form factor | Straight | | Connector 2 form factor | Straight | | HDMI version | 2.0 | | Supported graphics resolutions | 4096 x 2160 | | HDMI Ethernet channel | Y | | Data transfer rate | 18 Gbit/s | | Maximum resolution | 4096 x 2160 pixels | | AWG wire size | 30 | | Contact material | Phosphor bronze | | Connector housing material | Polyvinyl chloride (PVC) | | Connector material | Nickel | | Cable material | Copper-clad steel (CCS) | | Cable type | Round cable | | Cable jacket material | Polyvinyl chloride (PVC) | | Shield material | Aluminium | | Bending radius (min) | 6 cm | | Colour depth | 8 bit | | Colour sampling | 4:4:4 | | Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB | | Certification | RoHS, REACH, UL | | Operating temperature (T-T) | -10 - 80 °C | | Storage temperature (T-T) | -10 - 80 °C | | Cable diameter | 6 mm | | Connector 1 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm | | Connector 2 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm | | Package type | Polybag | | Harmonized System (HS) code | 84733080 |
|
