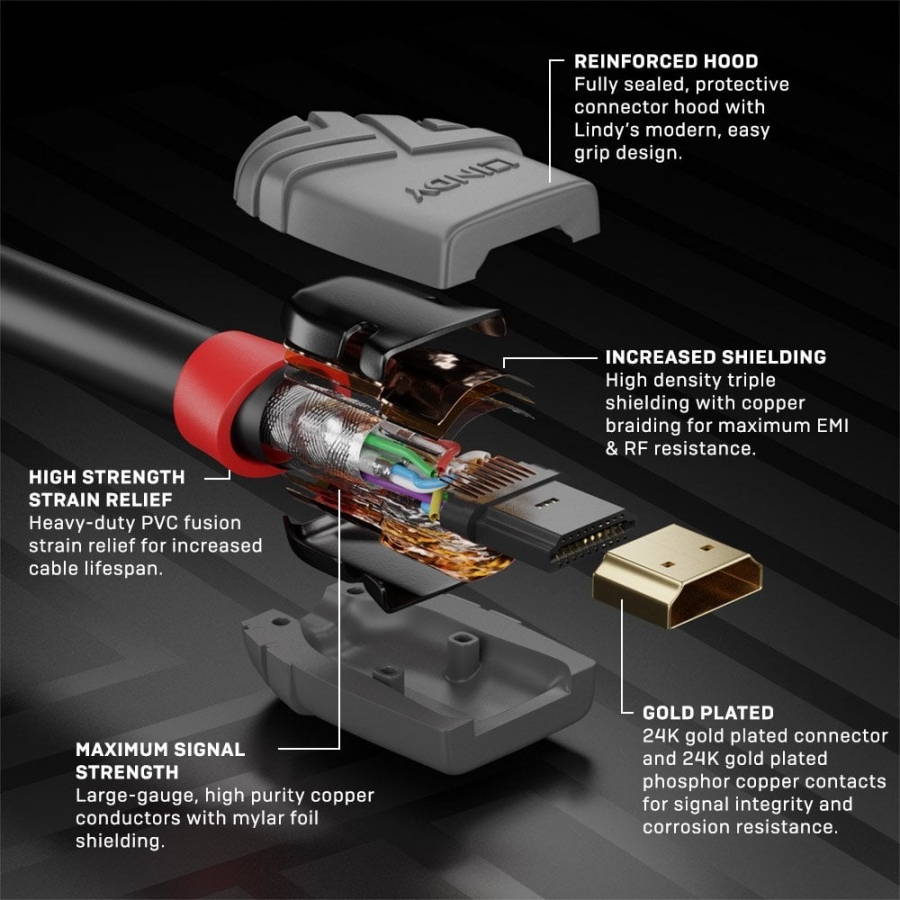

Superior performance and design Standard HDMI 2.0 cable Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit Robust PVC housing, gold plated connectors and contacts Triple shielded cable, corrosion resistant bare copper 24AWG conductors HDMI 2.0 compliant, 3D, 4K, 10.2Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warrantyFrom the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m. Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
|
| Cable length | 10 m | | Connector 1 | HDMI Type A (Standard) | | Connector 2 | HDMI Type A (Standard) | | Connector 1 gender | Male | | Connector 2 gender | Male | | Product colour | Black, Grey | | Connector contacts plating | Gold | | Quantity per pack | 1 pc(s) | | Connector 1 form factor | Straight | | Connector 2 form factor | Straight | | HDMI version | 2.0 | | 3D | Y | | Supported graphics resolutions | 3840 x 2160, 4096 x 2160 | | Supported video modes | 2160p | | Dolby technologies | DTS-HD, Dolby TrueHD | | Data transfer rate | 10.2 Gbit/s | | Maximum refresh rate | 60 Hz | | AWG wire size | 24 | | Contact material | Phosphor bronze | | Connector housing material | Polyvinyl chloride (PVC) | | Connector material | Gold | | Cable material | Copper | | Cable type | Round cable | | Cable jacket material | Polyvinyl chloride (PVC) | | Shield material | Aluminium | | Bending radius (min) | 9.8 cm | | Colour sampling | 4:2:0 | | Nominal attenuation | 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB | | Certification | RoHS, REACH, UL | | Operating temperature (T-T) | -20 - 80 °C | | Storage temperature (T-T) | -25 - 85 °C | | Cable diameter | 9.8 mm | | Connector 1 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm | | Connector 2 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm | | Package type | Polybag | | Sustainability certificates | RoHS | | Harmonized System (HS) code | 84733080 |
|
