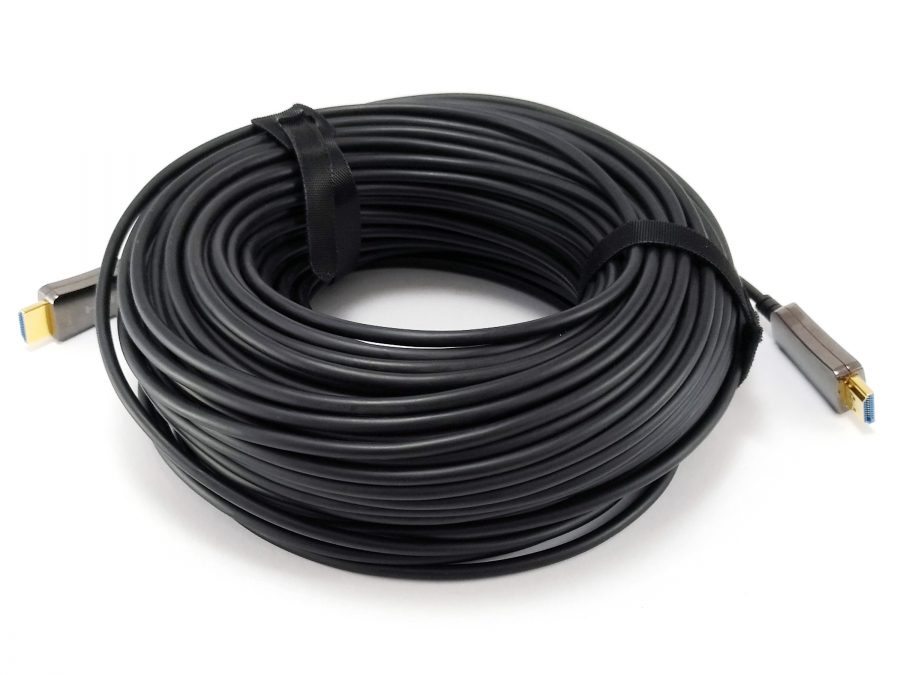

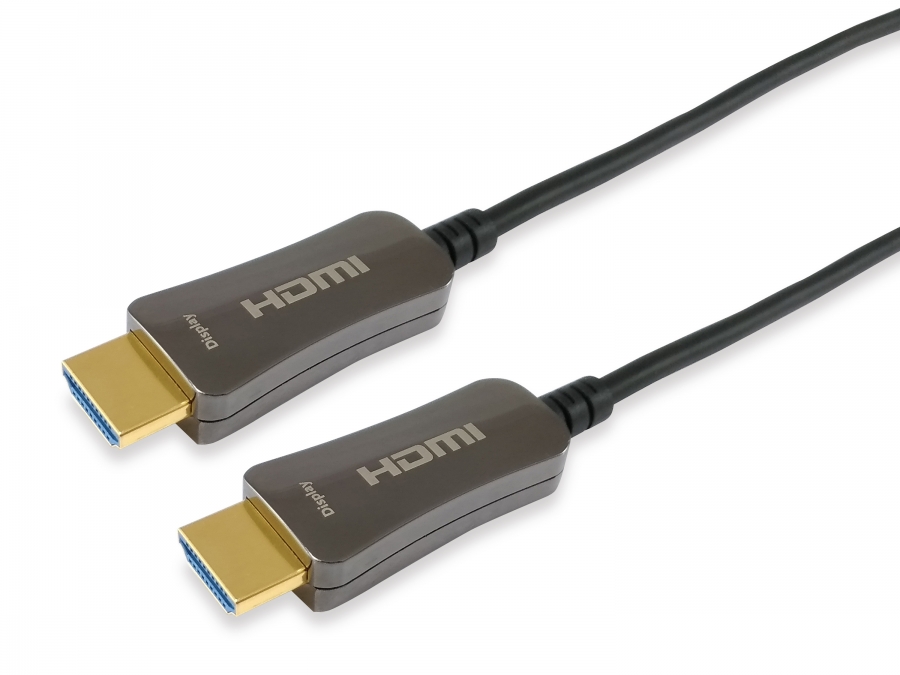

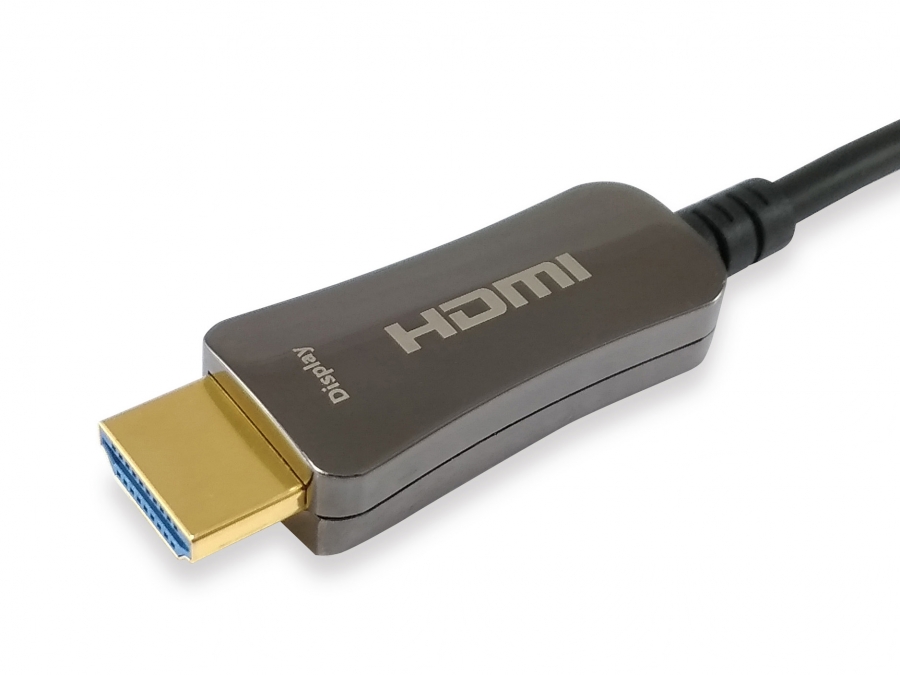

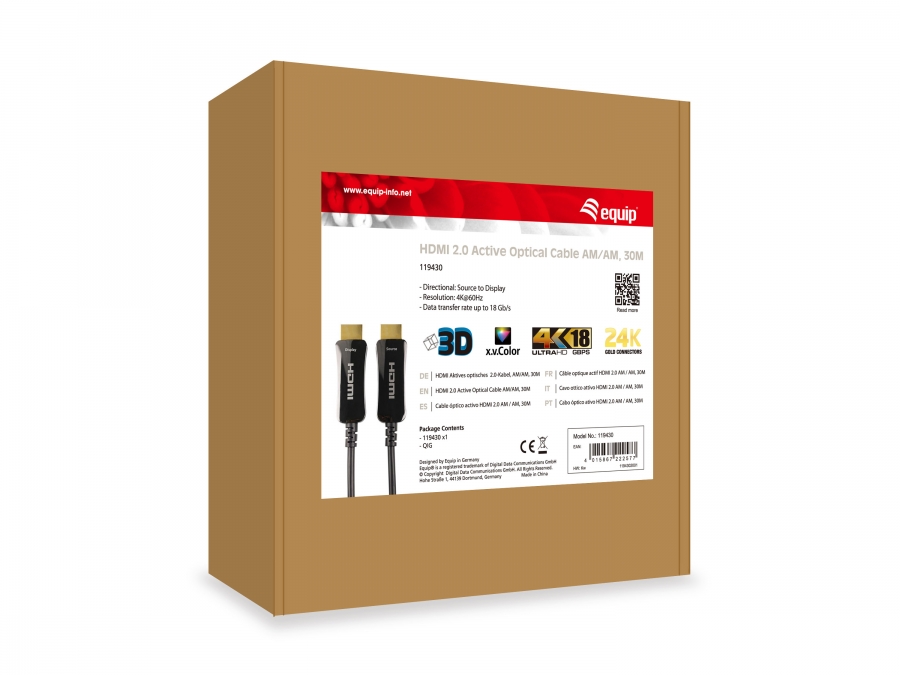

Equip HDMI PHS Ethernet 2.0 A-A St/St 30.0m 4K60Hz HDRopt.sw

Reference 119430

Condition: New

More info

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.

Cable length	30 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Quantity per pack	1 pc(s)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Y
Audio Return Channel (ARC)	Y
HDMI Ethernet channel	Y
HDCP	Y
HDCP version	2.0
Data transfer rate	18 Gbit/s
Cable material	Copper
Plug and Play	Y
Cable diameter	4.8 mm
Package width	235 mm
Package depth	225 mm
Package height	74 mm
Package weight	818 g
Package type	Box
Country of origin	China
Harmonized System (HS) code	84733080
Master (outer) case width	580 mm
Master (outer) case length	580 mm
Master (outer) case height	310 mm
Master (outer) case gross weight	302 kg
Products per master (outer) case	36 pc(s)
