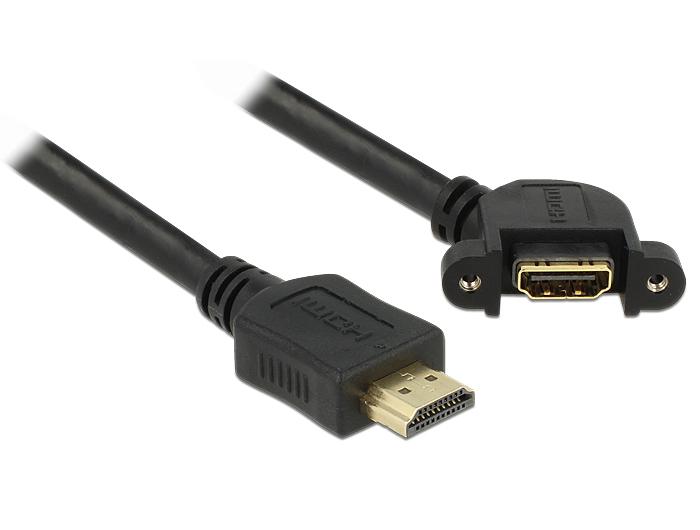

Delock Cable HDMI A male HDMI A female panel-mount 110 angled 1 m

DELOCK

85103

New

This cable enables you to extend a HDMI connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an HDMI connector on an easily accessible position.

More details

Description:
This cable enables you to extend a HDMI connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an HDMI connector on an easily accessible position.

Specification:
• Connector:
HDMI A 19 pin male >

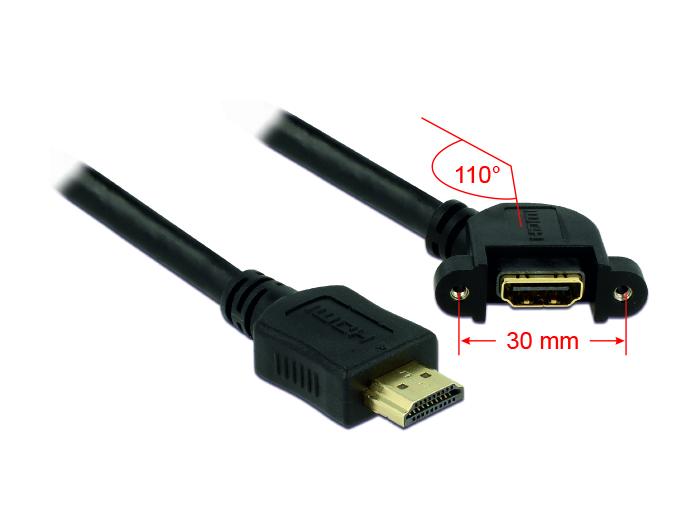

HDMI A 19 pin female 110 ° angled with screw nuts for installation
• Screw type: #4-40 UNC
• Mounting hole ca. 15 x 6 mm, screw hole pitch ca. 30 mm

• High Speed HDMI with Ethernet (HEC) specification
• Cable gauge: 28 AWG
• Cable diameter: ca. 7.3 mm
• Gold-plated connector
• Colour: black
• Length incl. connector: ca. 1 m

System requirements:
• A free HDMI port

Package content:
• HDMI panel-mount cable
• 2 screws

HDMI
