Delock USB 40 Gbps Enclosure for 1 x M.2 NVMe SSD in Gaming Style with LED and Fan - tool free

Reference 42025

Condition: New

More info

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280 format, it can be connected via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™ to the PC or laptop.

USB 40 Gbps
Due to USB 40 Gbps compatibility, the Delock enclosure can be connected to Thunderbolt™ 3 and 4 ports, as well as to all USB Type-C™ ports. The maximum data transfer rate depends on the host device.

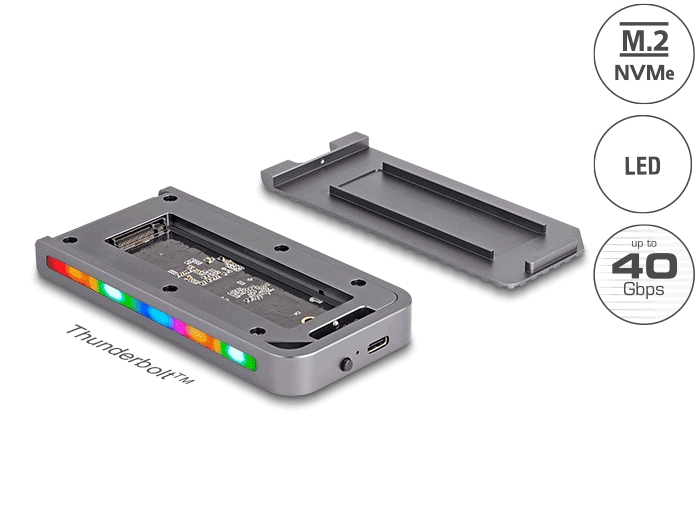

In addition to the Power LED there is an LED light bar on the side. This glows in pulsating blue light when the enclosure is connected to a USB interface and in colourful illumination when connected to a Thunderbolt™ interface.

SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.

Active cooling by fan
A silent fan in the bottom area of the enclosure ensures sufficient cooling of the used SSDs, so that the operation also works without problems with the enclosure closed. The fan can be switched on and off.

Note
Due to the USB to NVMe controller, the data transfer rate on a USB Gen 2x2 port is only 10 Gbps.

System requirements:
• Android 10.0 or above
• Chrome OS 90.0 or above
• iPad Air (4th Generation) or above
• Linux Kernel 5.13 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
• Device with a free Thunderbolt™ 4 port

Specification:
• Connectors:
external: 1 x USB 40 Gbps USB Type-C™ female
internal: 1 x M.2 key M slot
• Chipset: Intel JHL7440, Realtek RTL9210B
• Supports M.2 modules in format 2280 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 40 Gbps
• 1 x LED indicator for power
• LED light bar indicates whether connected by USB or Thunderbolt™ port
• On / off button for enclosure and fan
• Metal housing
• Built-in 30 mm fan
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 117 x 56 x 16 mm

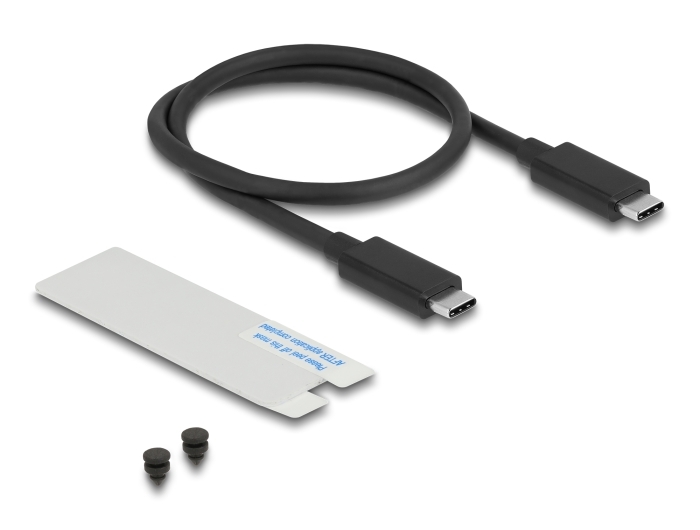

Package content:
• External enclosure M.2
• Thunderbolt™ 4 cable, length ca. 50 cm
• 1 x thermal conductive pad
• 2 x rubber nipple
• User manual

Data sheet:
http://www.delock.de/produkt/42025/pdf.html?sprache=en
