Delock External Enclosure USB 20 Gbps for 2 x M.2 NVMe PCIe SSD with USB Type-C™ female and RAID - tool free

DELOCK

42022

New

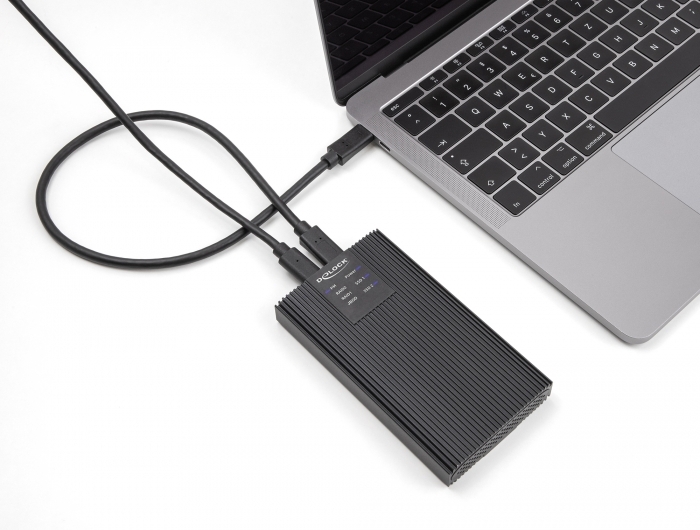

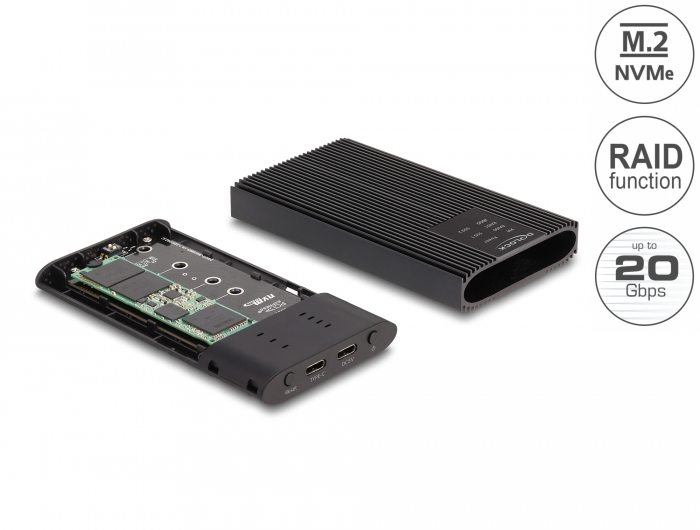

This aluminum enclosure by Delock enables the installation of two M.2 PCIe NVMe SSDs in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.

M.2 PCIe SSD RAID
If built-in two SSD, there is the possibility to use different RAID modes.

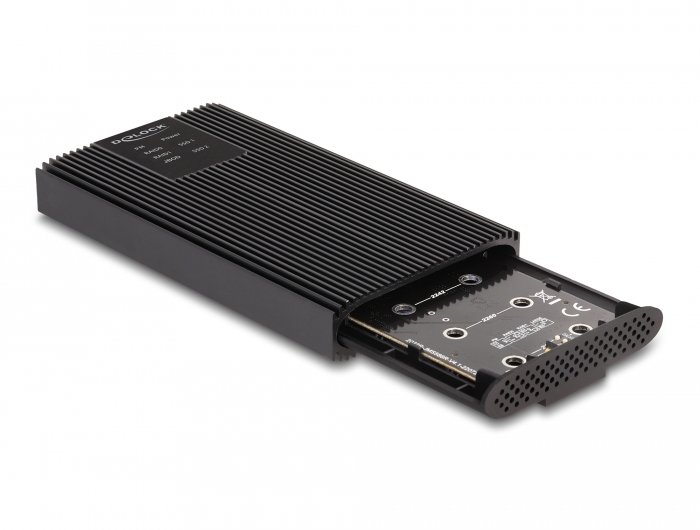

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The lid can be pushed backwards by a little pressure, the SSD will be attached to the PCB with a rubber nipple and then the lid is reattached until it locks.
System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
Specification:
• Connectors:
  external:
  1 x USB 20 Gbps USB Type-C™ female
  1 x USB Type-C™ female (5 V power supply)
  internal: 2 x M.2 key M slot
• Chipset: JMicron JMS586R
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports UASP
• Data transfer rate up to 20 Gbps

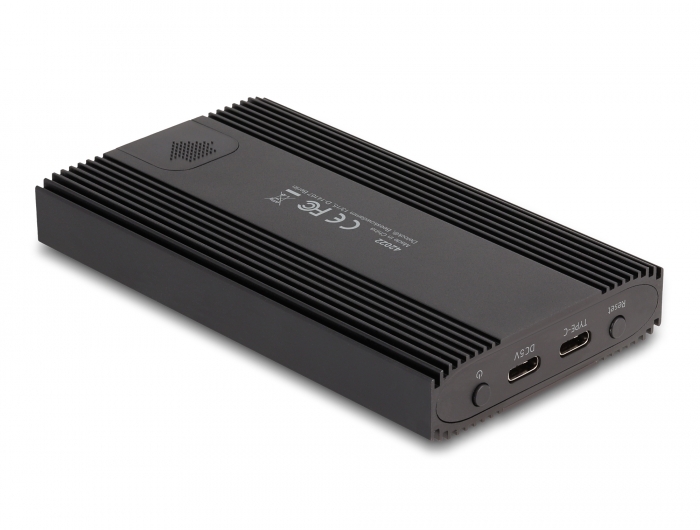

• 1 x on / off button
• 1 x reset button
• DIP switch for RAID mode
• Supports RAID 0, RAID 1, JBOD, Port Multiplier
• 7 x LED indicator
• Hot Plug, Plug & Play
• Bootable
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 120 x 68 x 17 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A / 15.0 W

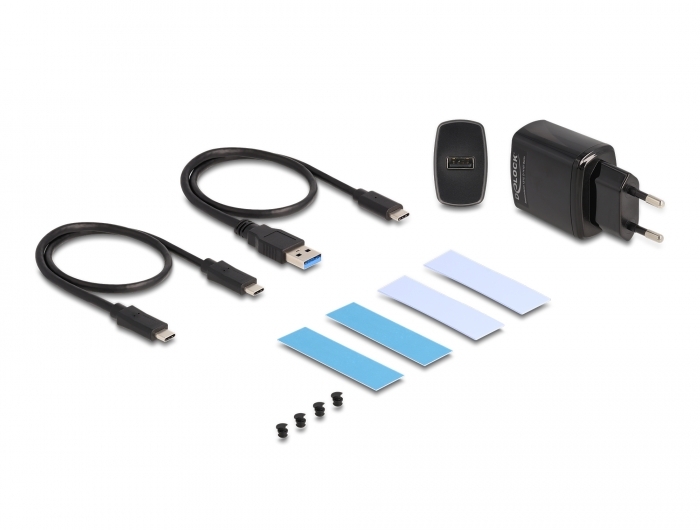

Package content:
• External enclosure
• Cable USB-C™ male to USB-C™ male, length ca. 45 cm
• Cable USB-C™ male to USB Type-A male, length ca. 45 cm
• External power supply
• 2 x thermal conductive pad
• 2 x thermal conductive plate
• 4 x rubber nipple
• User manual
Data sheet:
http://www.delock.de/produkt/42022/pdf.html?sprache=en
