Delock External Enclosure for 2 x M.2 NVMe PCIe SSD with USB Type-C™ female and Clone function

Reference 42010

Condition: New

More info

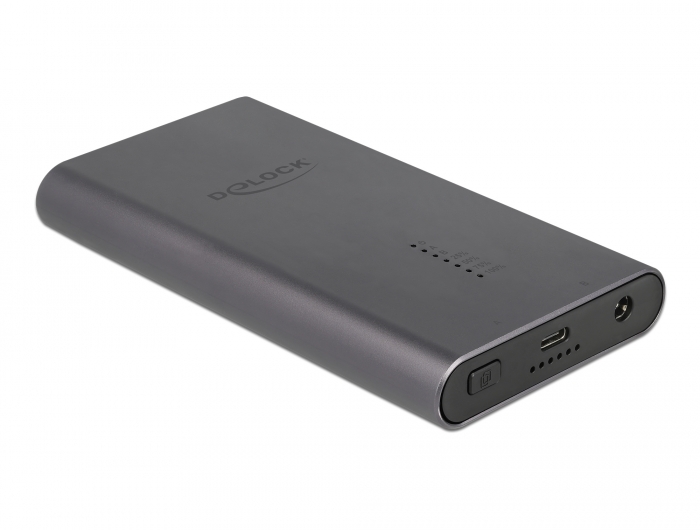

This aluminum enclosure by Delock enables the installation of two M.2 PCIe NVMe SSDs in 2280, 2260 and 2242 format. It can be connected via USB to the PC or laptop.

M.2 PCIe SSD clone function
The clone function enables to copy the content of one SSD to another without using a PC.

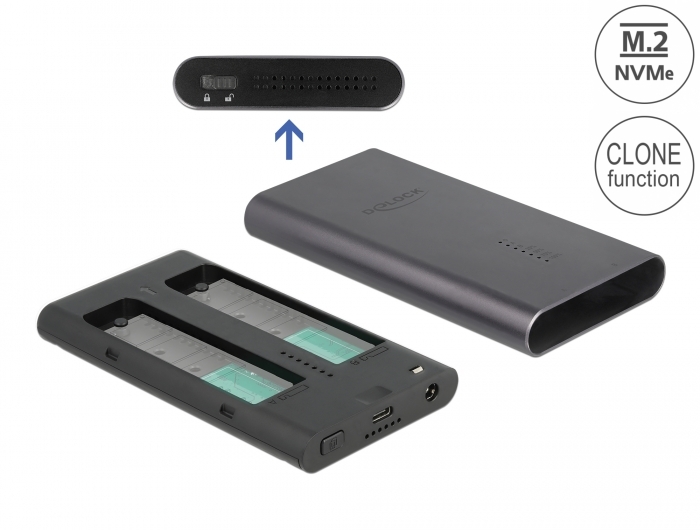

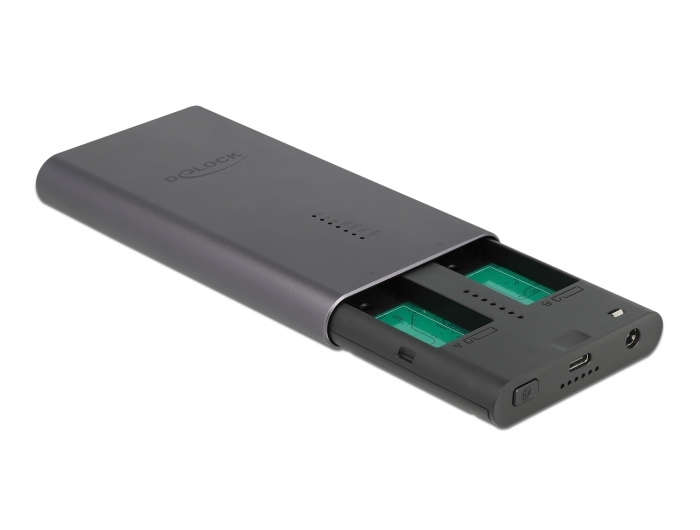

SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD. The locking mechanism prevents unwanted opening of the enclosure, e.g. during transport in the bag.

Good cooling
A fan in the bottom area of the enclosure ensures sufficient cooling of the used SSDs, so that the operation also works without problems with closed case.

System requirements:
• Android 10.0 or above
• Chrome OS
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Linux Kernel 5.8 or above
• Mac OS 11.1 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
• A free USB Type-A female port

Specification:
• Connectors:
  external:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  1 x DC jack
  internal:
  2 x 67 pin M.2 key M slot
• Chipset: Asmedia ASM2362, ASM2806A
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based
on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports UASP
• Data transfer rate up to 10 Gbps
• 1 x clone button
• 1 x interlock switch
• LED indicator for power, access and copy status
• Hot Plug, Plug & Play
• Bootable
• Metal housing
• Built-in 30 mm fan
• Colour: grey
• Dimensions (LxWxH): ca. 143 x 77 x 18 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

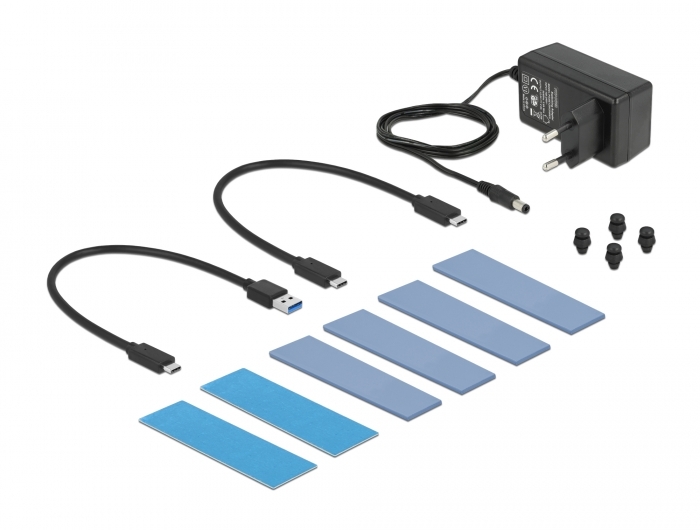

Package content:
• External enclosure
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• Cable USB-C™ male to USB Type-A male, length ca. 30 cm
• 4 x thermal conductive pad
• 2 x rubber nipple
• User manual

Data sheet:
http://www.delock.de/produkt/42010/pdf.html?sprache=en
