> >>Delock External USB Type-C™ Combo Enclosure for M.2 NVMe PCIe or SATA SSD
Delock External USB Type-C™ Combo Enclosure for M.2 NVMe PCIe or SATA SSD

Delock External USB Type-C™ Combo Enclosure for M.2 NVMe PCIe or SATA SSD

DELOCK

42004

New

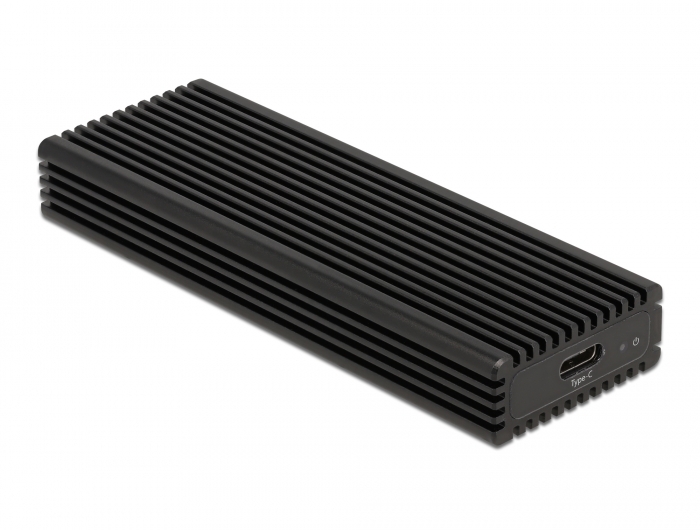

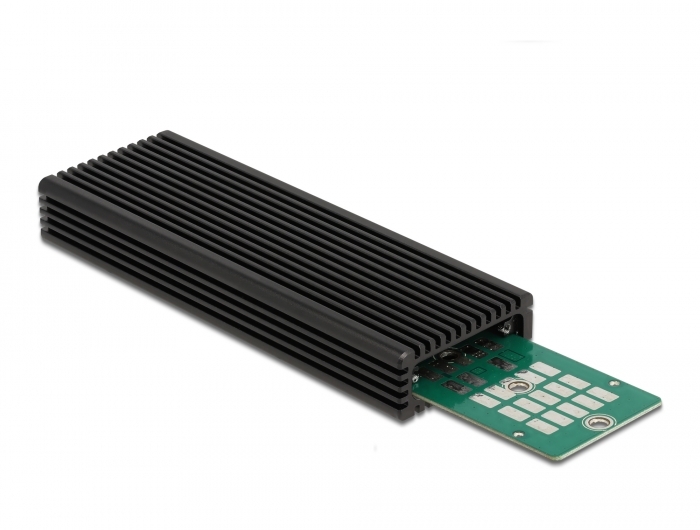

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.

Combo enclosure

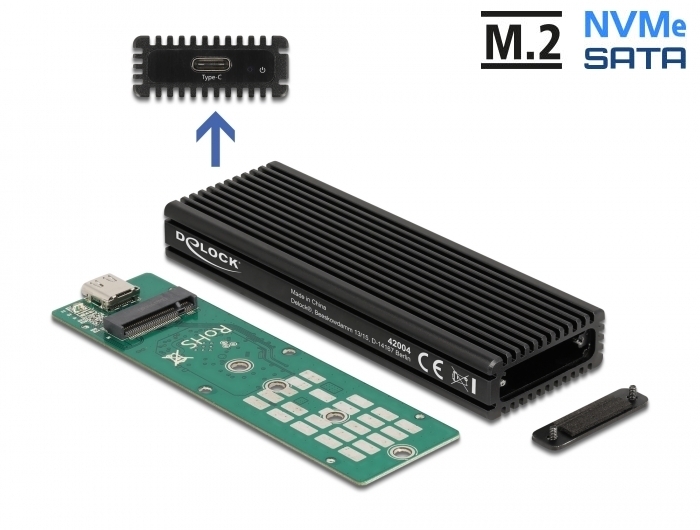

The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.
System requirements:
• Android 10.0 or above
• Chrome OS 83.0 or above
• iPad Air (2020)
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.7 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Specification:
• Connectors:
  external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  internal: 1 x 67 pin M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
  based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
  sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 104 x 36 x 14 mm
• Hot Plug, Plug & Play

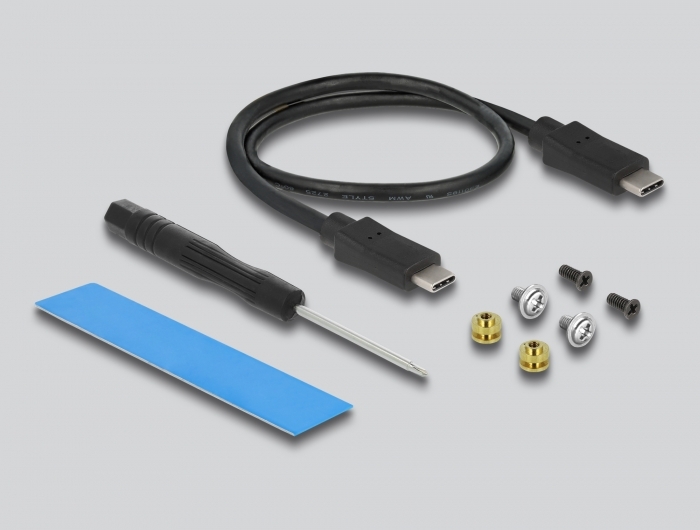

Package content:
• External enclosure M.2
• Cable USB-C™ male to USB-C™ male, length ca. 45 cm
• 1 x thermal conductive pad
• Screwdriver
• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/42004/pdf.html?sprache=en
