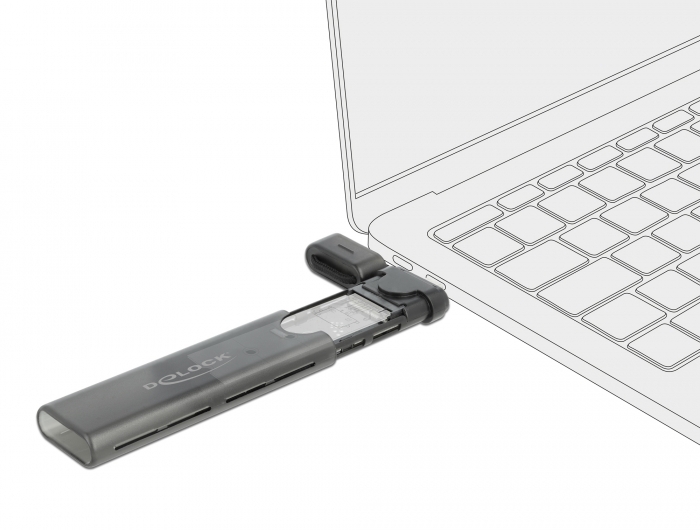

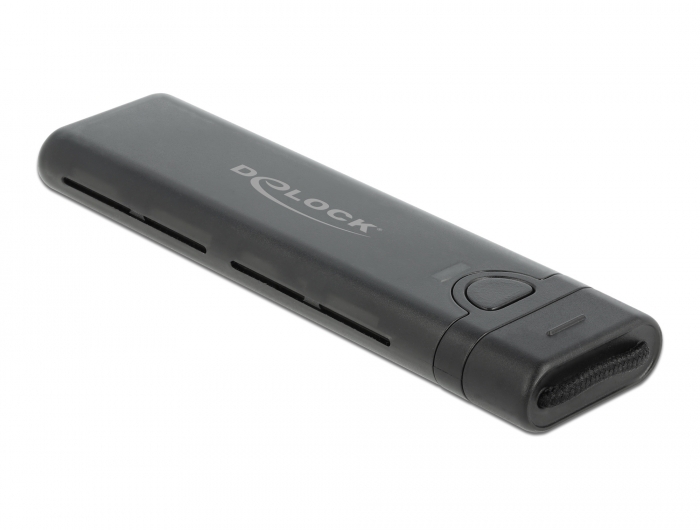

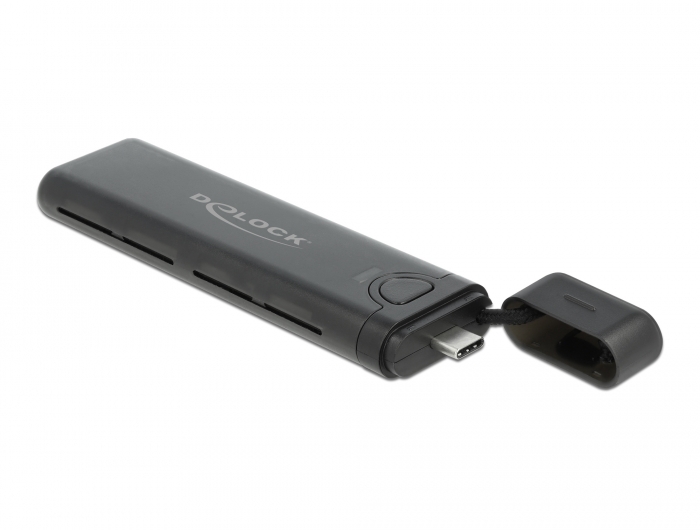

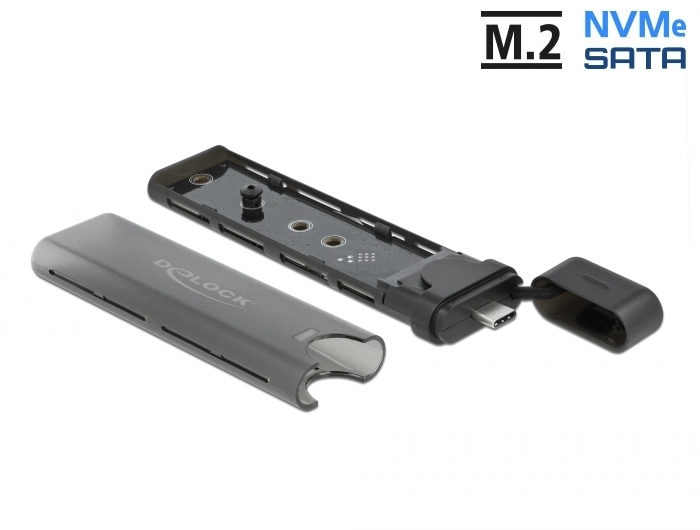

| This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected directly via USB-C™ plug to the PC or laptop. Combo enclosure The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used. SSD installation without tools The special feature of this enclosure is that no tools are required to install the M.2 SSD. The lid is pushed backwards and the SSD is plugged into the slot, the SSD will be attached to the PCB with a rubber nipple and then the lid is reattached until it locks. System requirements: • Chrome OS 83.0 or above • Linux Kernel 3.18 or above • Mac OS 10.15.5 or above • Windows 8.1/8.1-64/10/10-64 • Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port Specification: • Connectors: external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ male internal: 1 x 67 pin M.2 key M slot • Chipset: Realtek RTL9210B • Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe) • Maximum height of the components on the module: 1.5 mm, application of double- sided assembled modules supported • Supports NVM Express (NVMe) • Bootable • Supports UASP • Data transfer rate up to 10 Gbps • LED indicator for power and access • Lanyard strip for cap • Dimensions (LxWxH): ca. 115 x 30 x 11 mm • Hot Plug, Plug & Play Package content: • External enclosure M.2 • User manual Data sheet: http://www.delock.de/produkt/42635/pdf.html?sprache=en |
