ASUS TUF-RTX4090-24G-OG-GAMING 24GB GDDR6X HDMI DP

ASUS

90YV0IY2-M0NA00

New

Built TUF
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4090.

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

AXIAL-TECH UPGRADES
Air Superiority

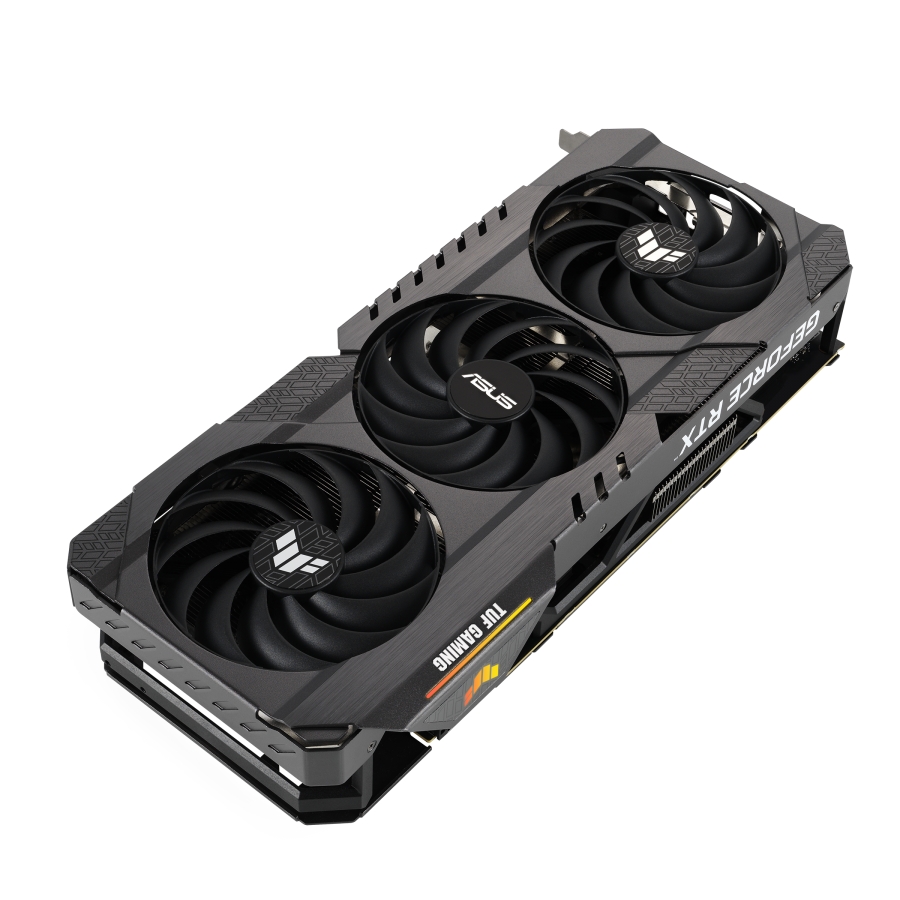

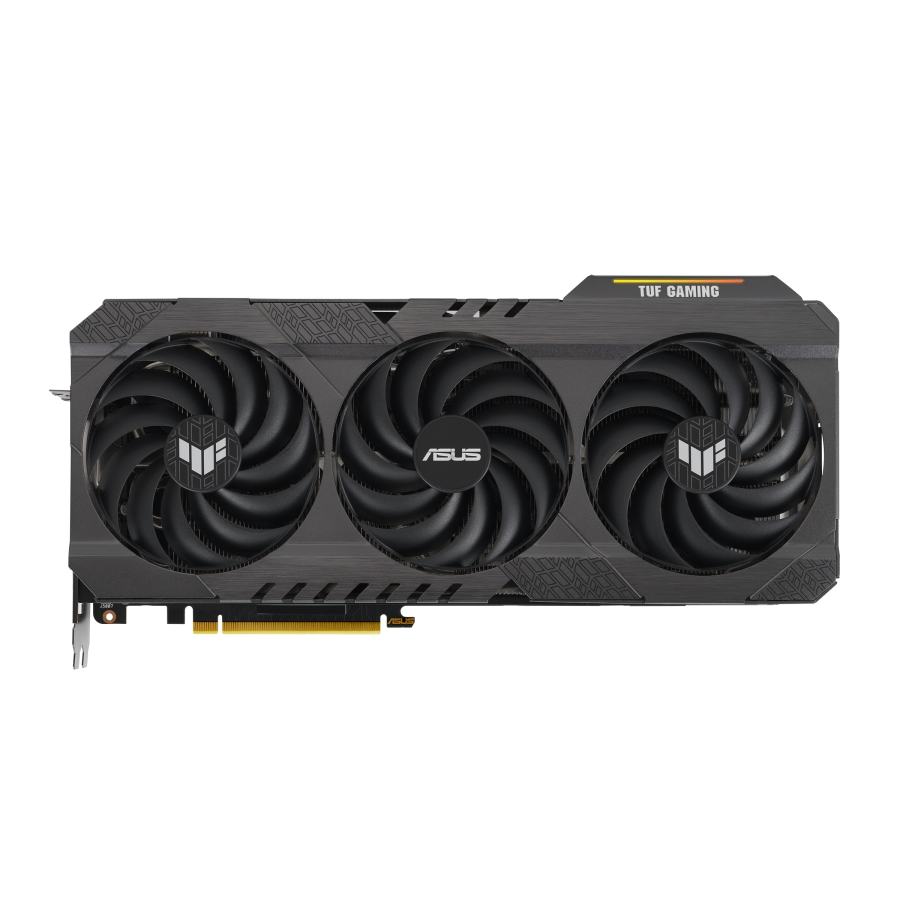

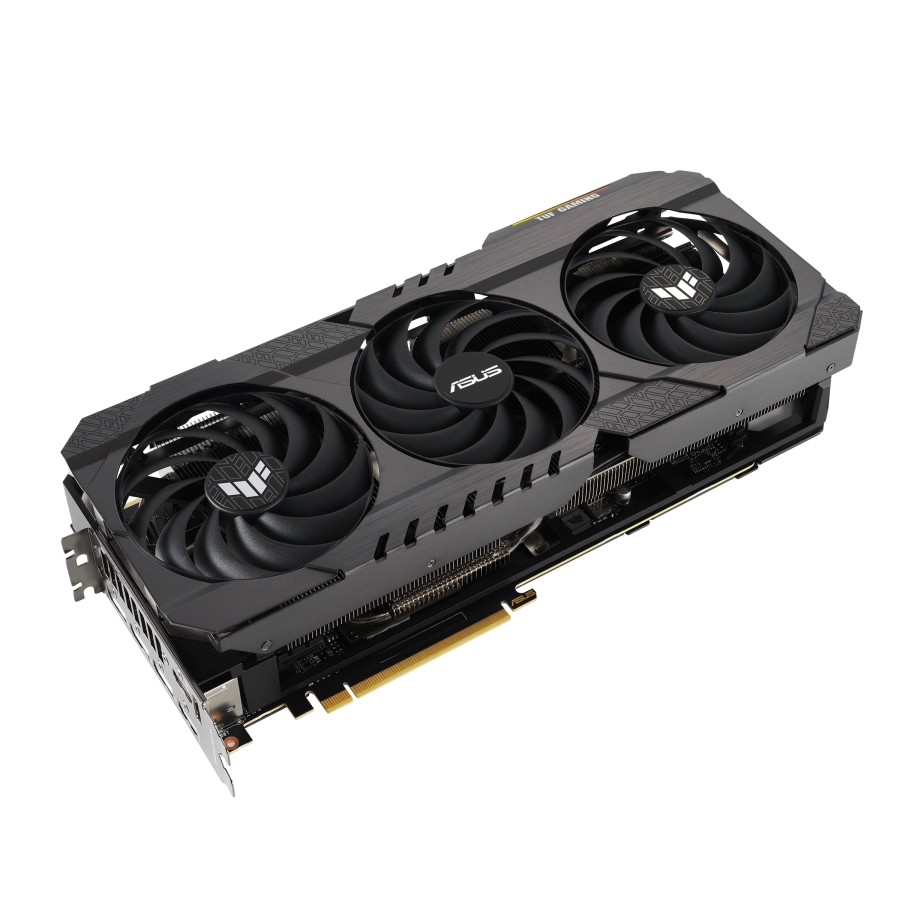

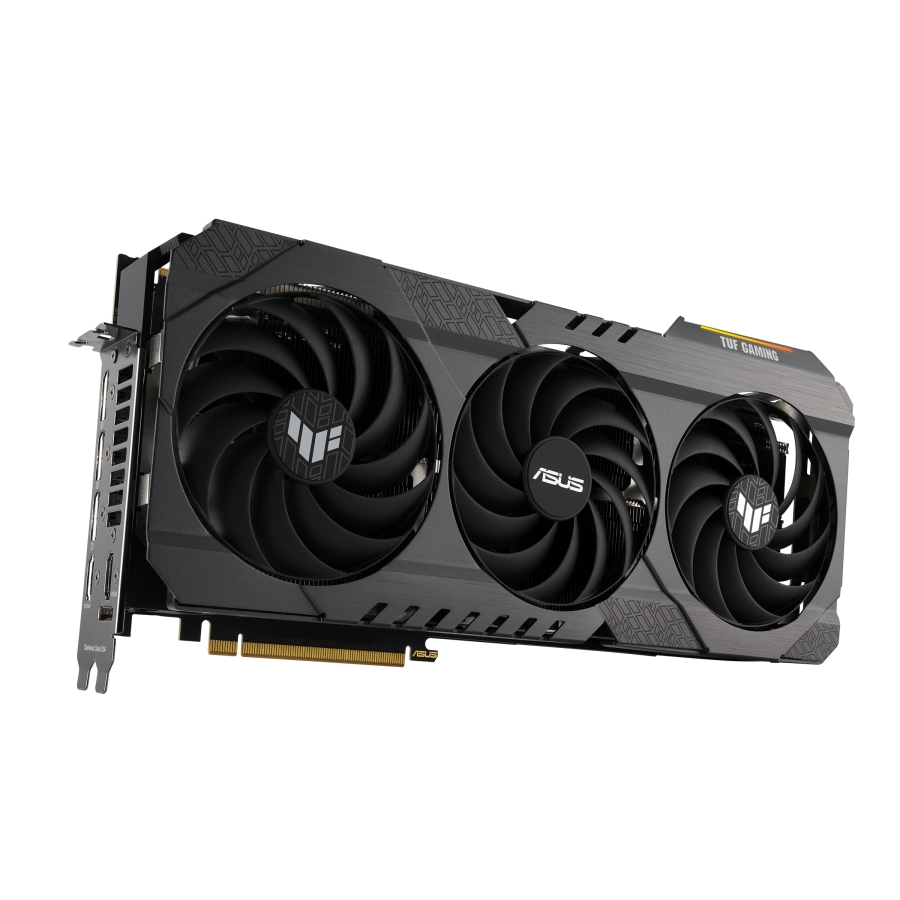

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

NEW DIRECTION
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.2-SLOT DESIGN
Phase That Blaze
A generously sized heatsink efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.

MILITARY-GRADE 20K CAPACITORS
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

VENTED EXOSKELETON
Stay Frosty
Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The GeForce RTX 4090 gloriously presented on a backdrop of low noise and rugged durability.

AUTO-EXTREME TECHNOLOGY
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

AURA SYNC
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

SOFTWARE

GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

Free 1 Month of Adobe Creative Cloud
Get complimentary membership with the purchase of selected ASUS products.*

20+ Adobe apps
Industry-leading apps including Photoshop, Illustrator, InDesign, Spark and XD.

Adobe Fonts
Access thousands of fonts right within your Creative Cloud apps.

Behance
Find inspiration in the world’s largest creative community.

Creative Cloud Libraries
Your team can share assets across their apps and devices, so everyone’s in sync.

1TB of cloud storage per user
Extra storage makes it easier for your team to share and manage creative assets.

Graphics processor familyNVIDIA
Graphics processorGeForce RTX 4090
Maximum resolution7680 x 4320 pixels
CUDAY
Parallel processing technology supportNot supported
CUDA cores16384
Processor boost clock speed2520 MHz
Processor boost clock speed (OC mode)2550 MHz
Maximum displays per videocard4
Discrete graphics card memory24 GB
Graphics card memory typeGDDR6X
Memory bus384 bit
Memory bandwidth (max)21 GB/s
Interface typePCI Express 4.0

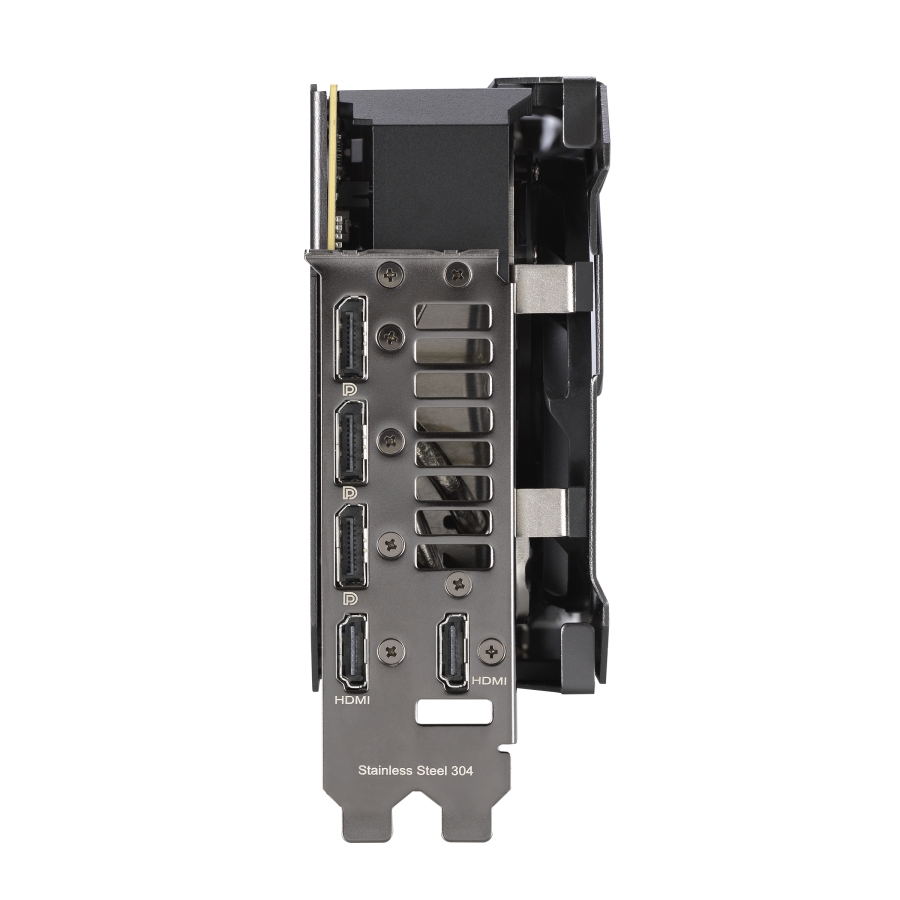

HDMI ports quantity2
DisplayPorts quantity3
HDMI version2.1a
DisplayPort version1.4a
TV tuner integratedN
DirectX version12 Ultimate
OpenGL version4.6
Dual Link DVIN
HDCPY
HDCP version2.3
NVIDIA G-SYNCY
NVIDIA AnselY
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans3 fan(s)
Form factorFull-Height/Full-Length (FH/FL)
Number of slots3.2
IlluminationY
Illumination colourMulti
Product colourBlack
Minimum system power supply850 W
Supplementary power connectors1x 16-pin
Weight1.7 kg
Depth325.9 mm
Height62.8 mm
Width140.2 mm
Package width534 mm
Package depth265 mm
Package height85 mm
Package weight2.7 kg
Package typeBox
