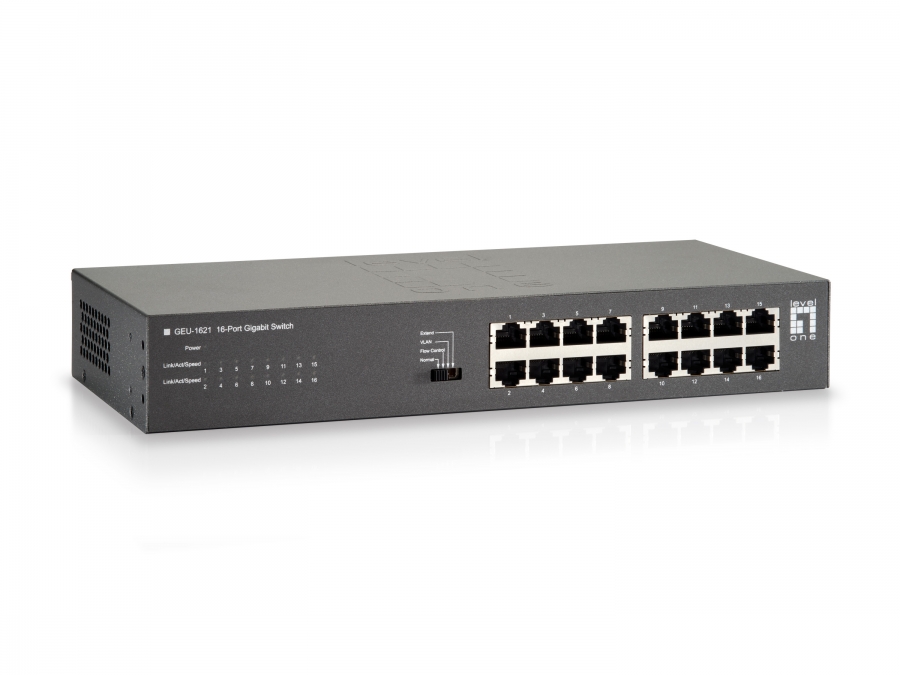

Level One LevelOne Switch 16x GE GEU-1621 19"

Reference GEU-1621

Condition: New

More info

The GEU-1621 is equipped with 16 Gigabit ports that lead you to a real Gigabit connections. Users are able to transfer large and high bandwidth-needed files faster, and hence get a real improvement of efficiency.Offers a fast and reliable networkThe store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures the correctness of data transmitting. The IEEE 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes.Power Saving FeaturesThe GEU-1621 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising the performance. The switch automatically enters the sleep mode, if there is no link activity detected, using less energy than idling at full power.Easy Installation and MaintenanceThe switch supports Nway auto-negotiation protocol to detect the networking speed (10/100/1000 Mbps) and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function eliminates the effort to use crossover cables. Diagnostic LEDs are provided to get real-time information of the connection status and network.

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	N
Full duplex	Y
Half duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	1.488 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Rack mounting	Y
Product colour	Grey
Country of origin	China
Built-in processor	Y
Processor model	Realtek RTL8382L
Flash memory	4 MB
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	155.5 cm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	10.1 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	2.6 kg
Manual	Y
Package type	Box
Rack mount kit	Y
Package width	258 mm
Package depth	340 mm
Package height	66 mm
Package weight	1.7 kg
Products per pallet	22 pc(s)
Master (outer) case width	353 mm
Master (outer) case length	355 mm
Master (outer) case height	280 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	10.4 kg
Products per master (outer) case	5 pc(s)
