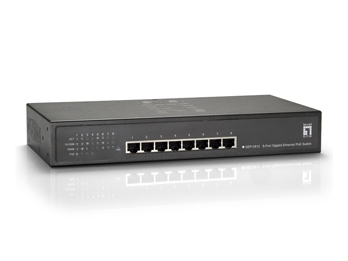

Level One LevelOne Switch 8x GE GEP-0812 65W 4xPoE

Reference GEP-0812

Condition: New

More info

The LevelOne GEP-0812 provides 4 x 10/100/1000Mbps and 4 x 10/100/1000Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W, up to 30W per port. Ideal for desktops and it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-0812 is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.- IEEE 802.3af/at PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 11-inch metal housing with 19-inch rackmount kit included - Simple Plug and Play installation - Total PoE power budget: 61.6W, up to 30W per port

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Stackable	N
Product colour	Black
LED indicators	Activity, LAN, PoE, Power
Country of origin	Taiwan
Certification	FCC, CE, RoHS
Buffer size	128 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output current	2 A
Power consumption (typical)	65 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	65 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	280 mm
Depth	125.5 mm
Height	44 mm
Weight	1.5 kg
Cables included	AC
Quick start guide	Y
Package width	235 mm
Package depth	83 mm
Package height	377 mm
Package weight	1.7 kg
Harmonized System (HS) code	85176990
