Level One LevelOne Switch 24x GE GEP-2421W630 19" 630W 24xPoE

LEVEL ONE

GEP-2421W630

New

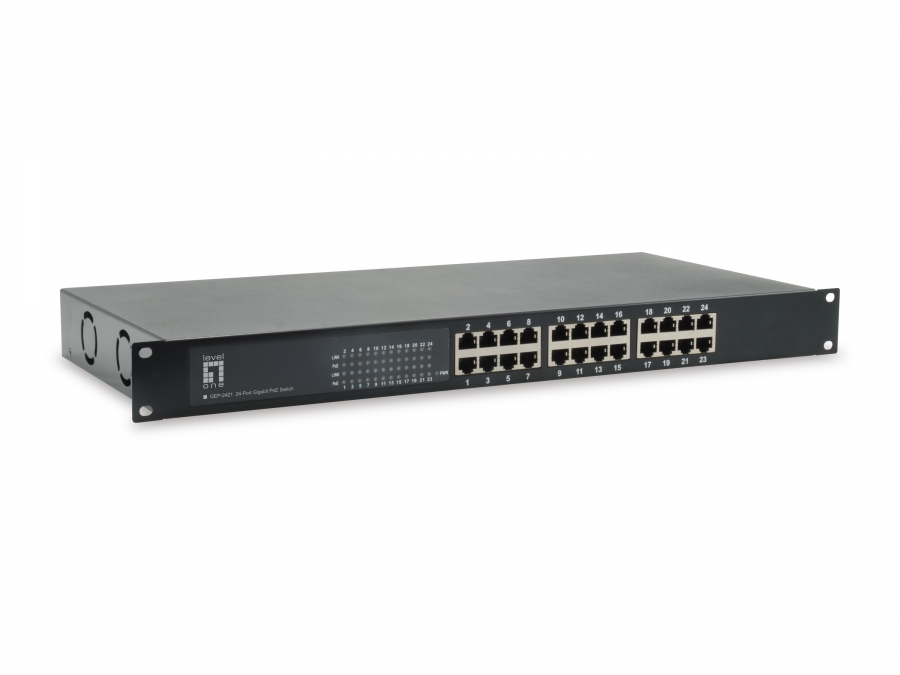

The LevelOne GEP-2421 series are unmanaged Gigabit PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-2421 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Switch typeUnmanaged

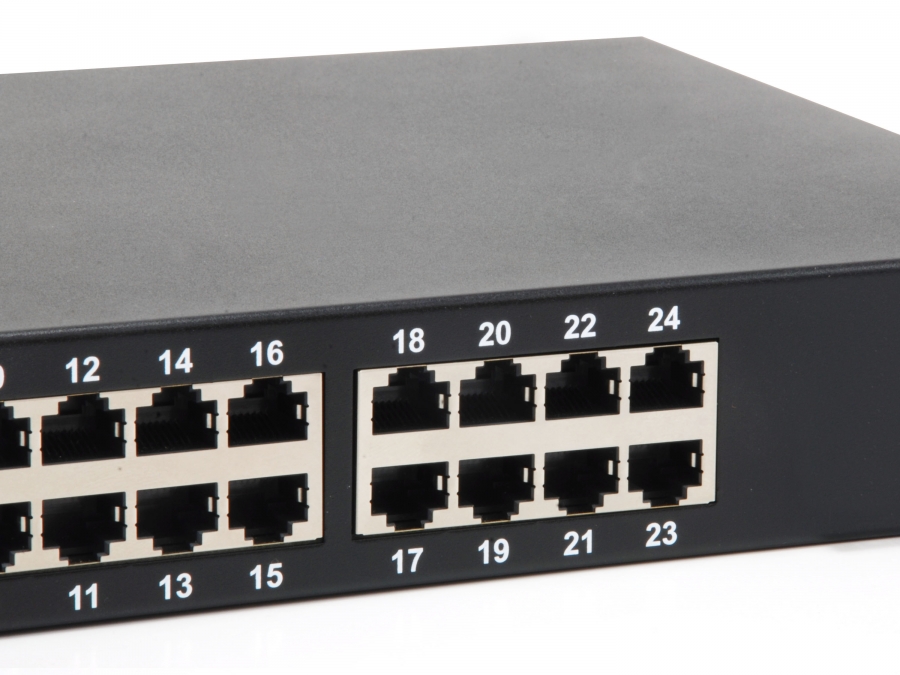

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
Auto-negotiationY
MAC address auto-learning supportedY
MAC address auto-aging supportedY
MAC address table8000 entries
Switching capacity48 Gbit/s
Jumbo frames supportY
Jumbo frames10000
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet buffer memory4.1 MB
Rack mountingY
Product colourBlack

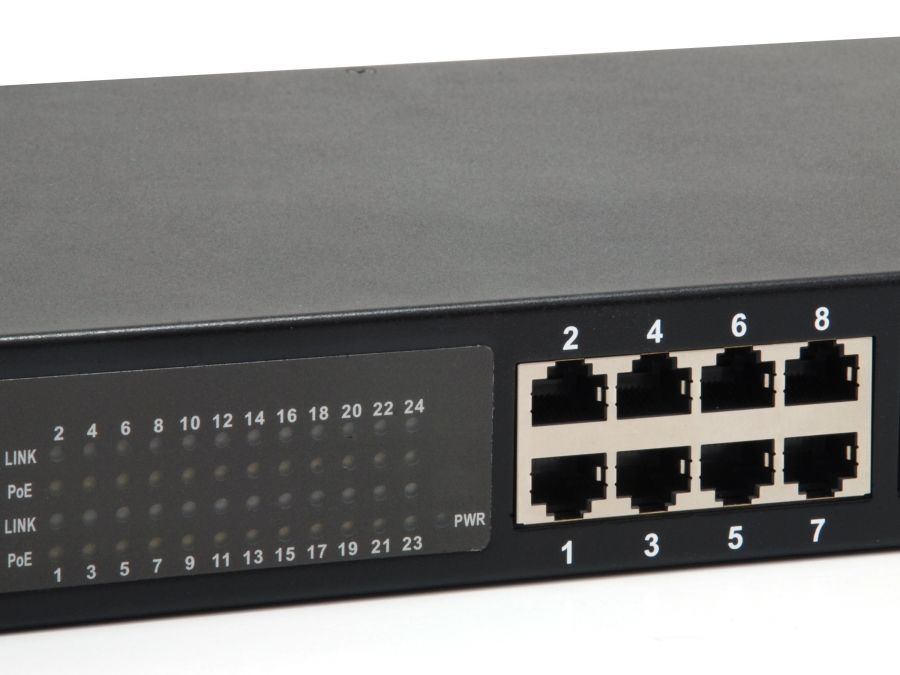

LED indicatorsLAN, PoE, Power
Country of originTaiwan
SafetyFCC Class A, CE
Mean time between failures (MTBF)55500 h

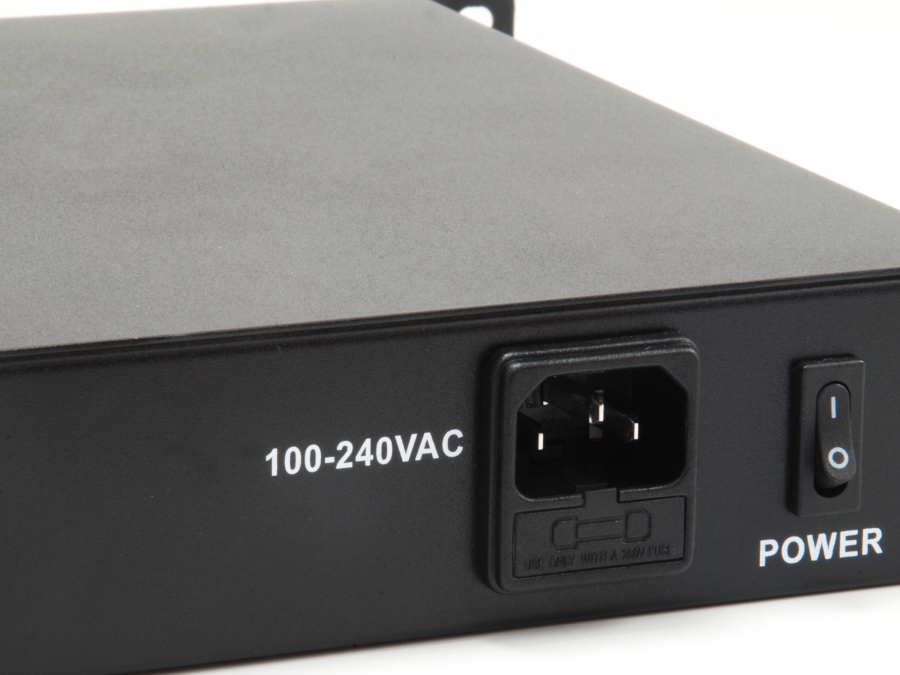

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage56 V
Output power30 W
Power consumption (typical)630 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity24
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Width200 mm
Depth44 mm
Height440 mm
Weight3.4 kg
ManualY
Package typeBox
Rack mount kitY
Rubber feetY
Package width260 mm
Package depth95 mm
Package height540 mm
Package weight4 kg
Master (outer) case width510 mm
Master (outer) case length280 mm
Master (outer) case height555 mm
Harmonized System (HS) code85176990
Master (outer) case gross weight18 kg
Products per master (outer) case5 pc(s)
Regulatory ApprovalsEMI: EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013. EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
