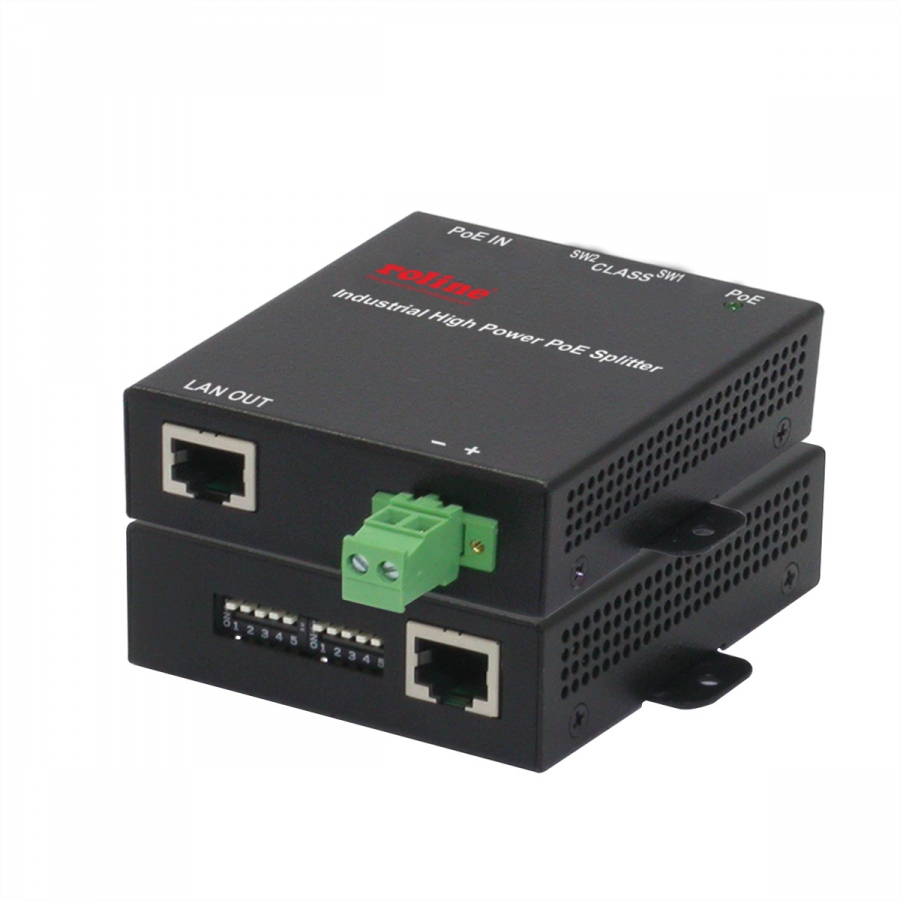

ROLINE High Power PoE++ Splitter, 128W

High power PoE++ splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single twisted pair cable for both power and data transaction.

• Enables PoE incapable network device with PoE capability
• IEEE 802.3at PoE+ and 802.3af PoE compliance
• Supports proprietary high power PoE++ up to 128W
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
• Supports Alternative A or Alternative B PoE input over Cat.5/6
• Provides power class selection DIP for demanding power from PSE - allows user to select one from nine different classes for demanding power from a remote PoE switched port or mid-span injector
• Supports Type 1 PSE classification and Type 2 PSE 2-event classification
• Short-circuit protection, low voltage lock out, inrush current limit and thermal protection
• Flexible mounting support, light weight and compact
• Metal housing
• Dimension: 73 x 85 x 24 mm
