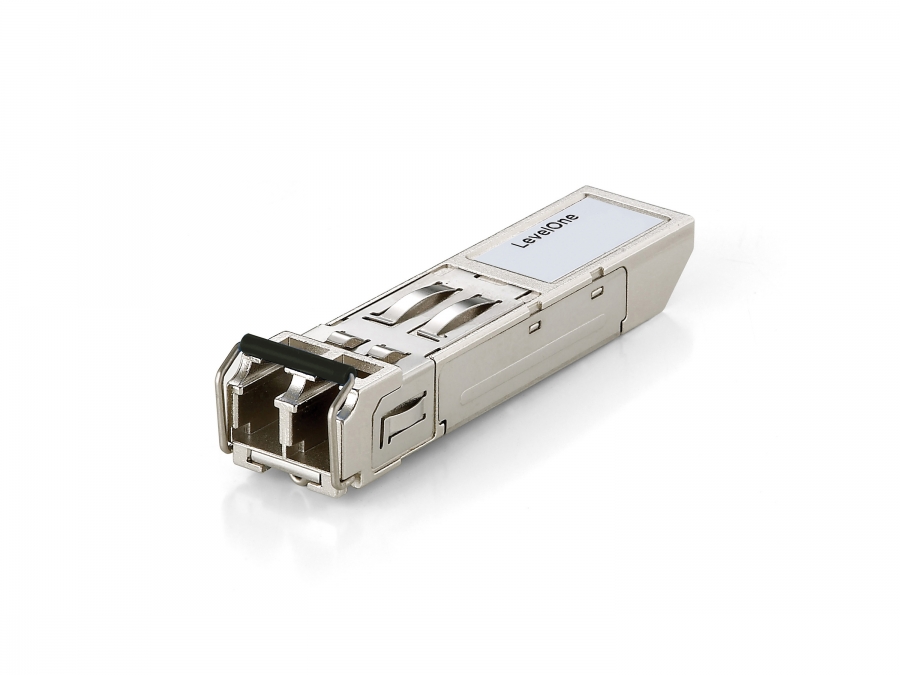

Level One LevelOne Transceiver 125M MMF SFP Multimode 2km 1310nm

LEVEL ONE

SFP-2200

New

LevelOne Infinity Small Form Factor Pluggable (SFP) transceiver is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It complies with Fast Ethernet standard as well as the RoHS compliant and lead-free per Directive 2002/95/EC. This Hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

- Provides duplex LC connector
- Compliant with Fast Ethernet standard
- 3.3V Single power supply
- Hot-swappable
- RoHS compliant and Lead Free
- Low EMI with metal housing
- Industrial operating temperature range -20 °C to 85°C

SFP transceiver typeFiber optic
Maximum data transfer rate125 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supported
Fiber optic connectorLC
Maximum transfer distance2000 m
Wavelength1310 nm
Tx power (min)-20 dBmW
Tx power (max)14 dBmW
Duplex systemFull
Fiber ports quantity1
Hot-swap
CertificationCE, FCC
Input voltage3.3 V
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Width14 mm
Depth8.4 mm
Height56.6 mm
Weight120 g
Number of products included1 pc(s)
Package width15.2 mm
Package depth50 mm
Package height230 mm
Package weight165 g
Compliance certificatesRoHS
Harmonized System (HS) code85369010
