LEVEL ONE

SFP-9331

New

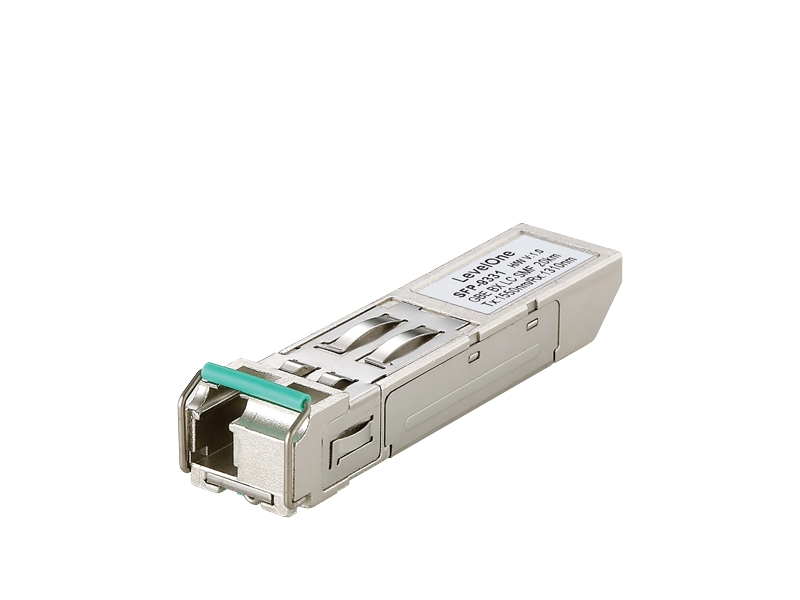

The LevelOne SFP-9331 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.

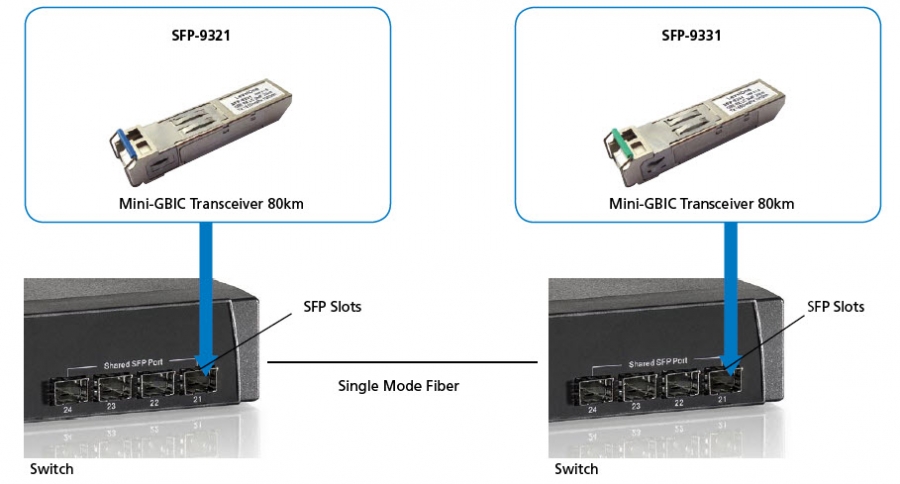

The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.

- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedJā
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance20000 m
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Networking standardsIEEE 802.3ah
Fiber ports quantity1
Plug and PlayJā
Hot-swapJā
SafetyEN 60825-1
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width57 mm
Depth12 mm
Height13.7 mm
Weight22 g
Number of products included1 pc(s)
Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g
Sustainability certificatesRoHS
Compliance certificatesRoHS
Harmonized System (HS) code85369010
