LEVEL ONE

SFP-3841

New

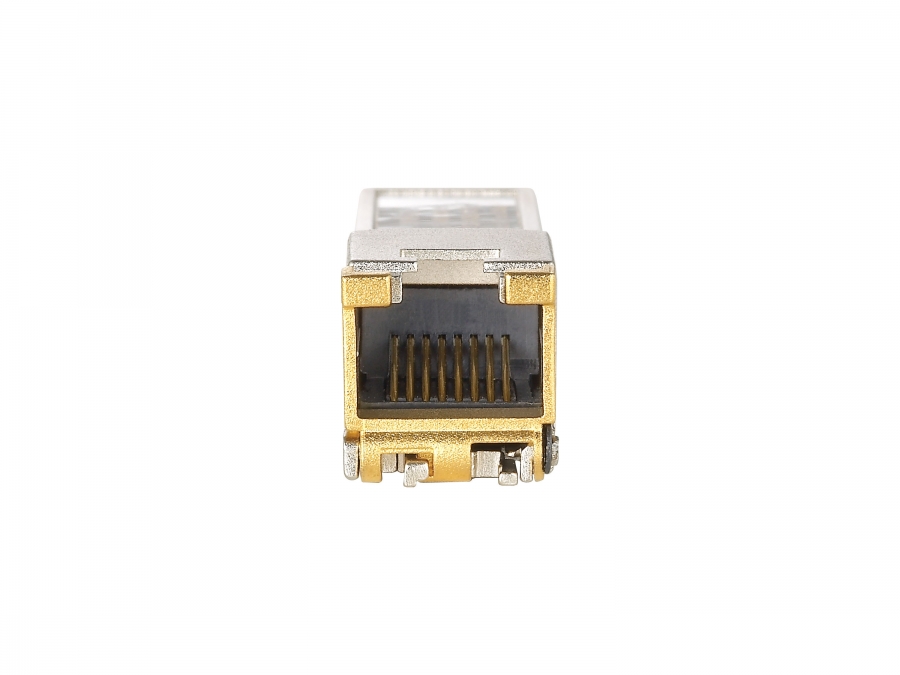

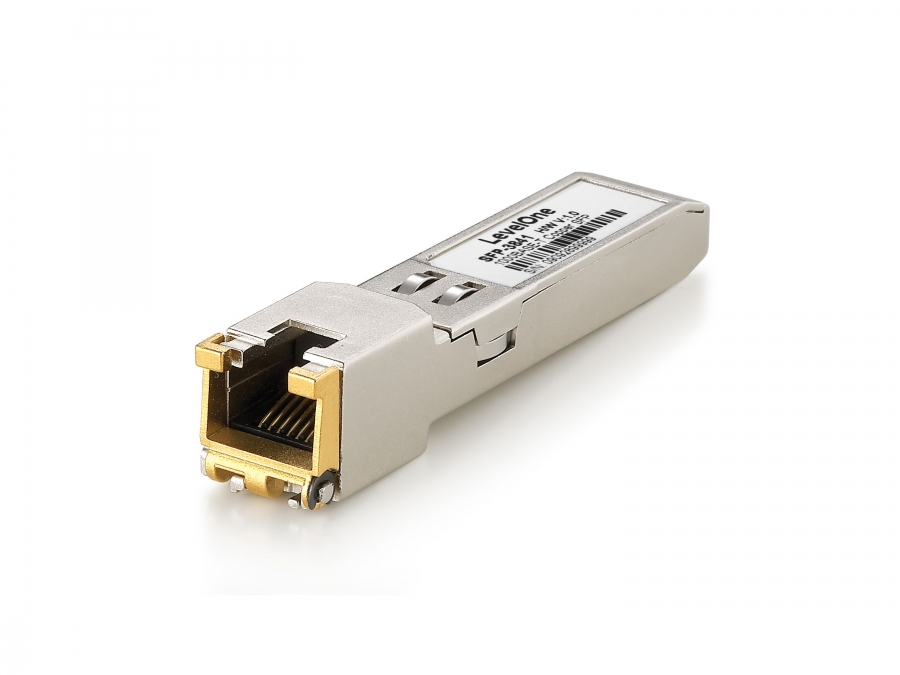

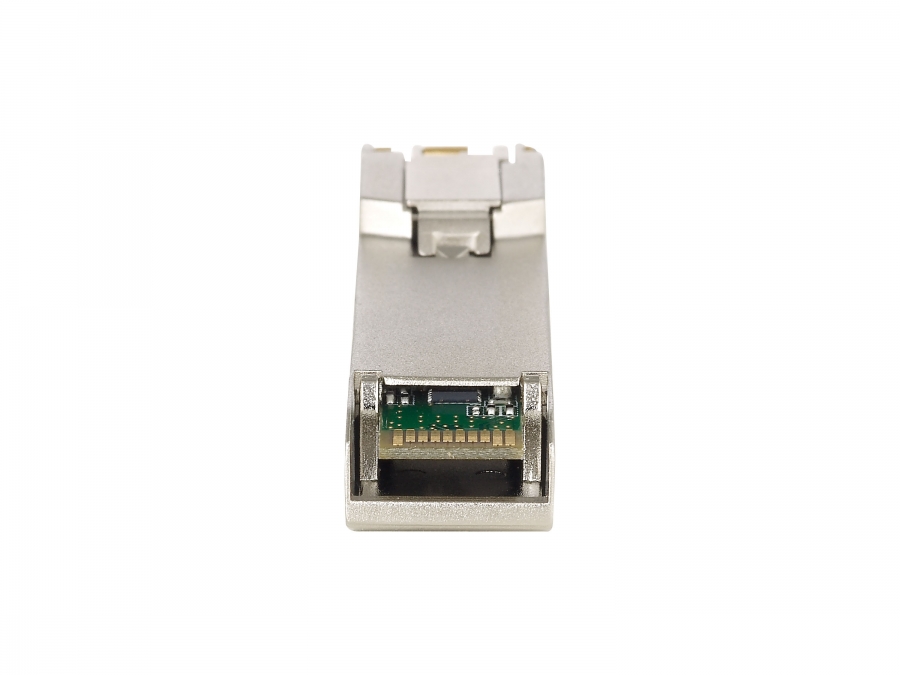

LevelOne SFP-3841 is a Copper SFP transceiver that provides enhanced flexibility to system designers. It converts 1000BASE-X optical Ethernet port to a copper Ethernet port (1000-BASE-T) to support a transfer rate of up to 1.25 Gbps at a distance of up to 100 meters over unshielded twisted-pair category 5 cable.- Up to 1.25Gbps bi-directional data links - Hot-pluggable SFP footprint - Extended cased temperature range(0°C to +70 °C) - Fully metallic enclosure for low EMI - Low power dissipation (1.05 W typical) - Compact RJ-45 connector assembly - Access to physical layer IC via 2-wire serial bus - 1000 BASE-T operation in host systems with SERDES interface

SFP transceiver typeCopper
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Maximum transfer distance100 m
Networking standardsIEEE 802.3, IEEE 802.3ab
Ethernet LAN (RJ-45) ports1
Hot-Plug supportY
Hot-swapY
Country of originChina
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage4 V
Maximum current0.375 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g
Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
