> >>Level One LevelOne SFP Transceiver 1.25G Single-mode Simplex LC 10km
Level One LevelOne SFP Transceiver 1.25G Single-mode Simplex LC 10km

Level One LevelOne SFP Transceiver 1.25G Single-mode Simplex LC 10km

LEVEL ONE

SFP-9221

New

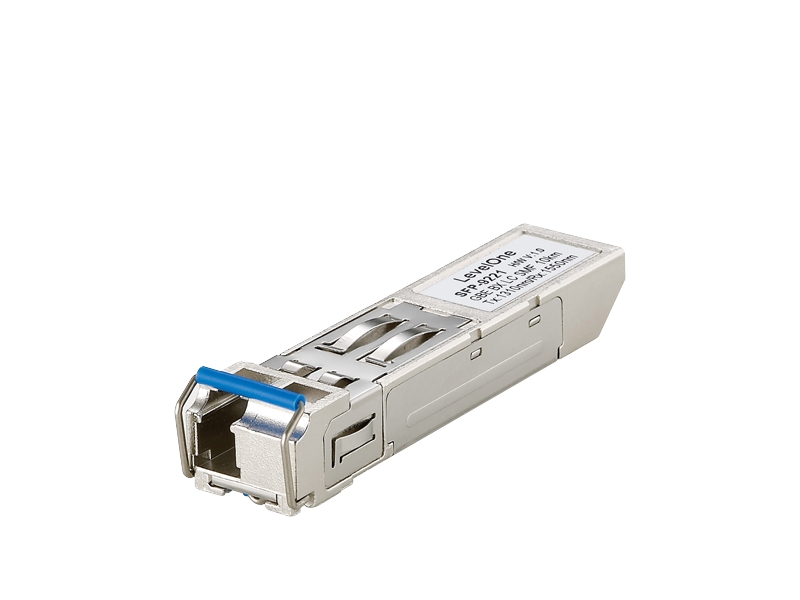

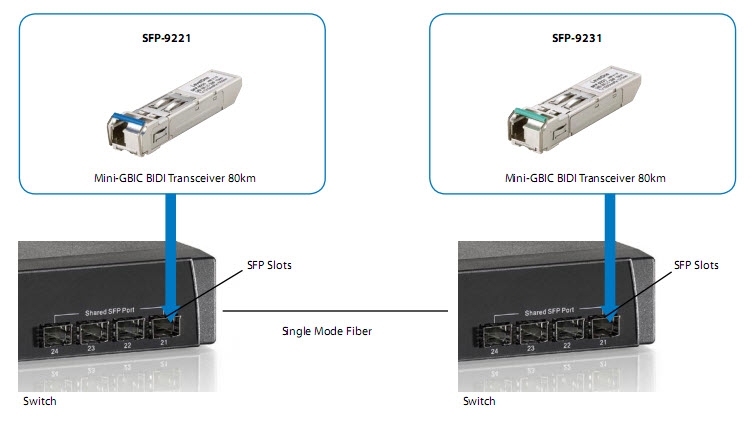

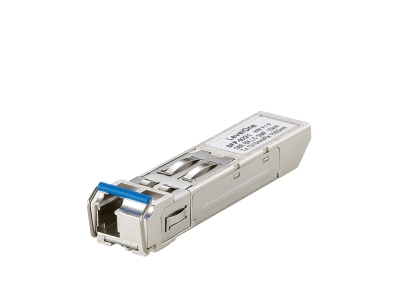

The LevelOne SFP-9221 is a high performance, costeffective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 10km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-9221 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-9231 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.- 1310nm FP LD - Multi Data Rate: 125M to 1.25Gbps, NRZ - Single +3.3V Power Supply - AC/AC Differential Electrical Interface - RoHS Compliant and Lead-free - Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP) - Single LC Connector - Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps - Compliance with ANSI specifications for Fiber Channel applications at 1.06bps - Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Tx power (min)-9 dBmW
Tx power (max)-3 dBmW
Networking standardsIEEE 802.3z
Fiber ports quantity1
Hot-swapY
SafetyEN 60825-1
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width13.7 mm
Depth56.6 mm
Height8.95 mm
Weight20 g
Number of products included1 pc(s)
Package width76 mm
Package depth50 mm
Package height130 mm
Package weight60 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
