Delock Installation Connector 3-pole, screw terminal, black, 1 set

Reference 64147

Condition: New

More info

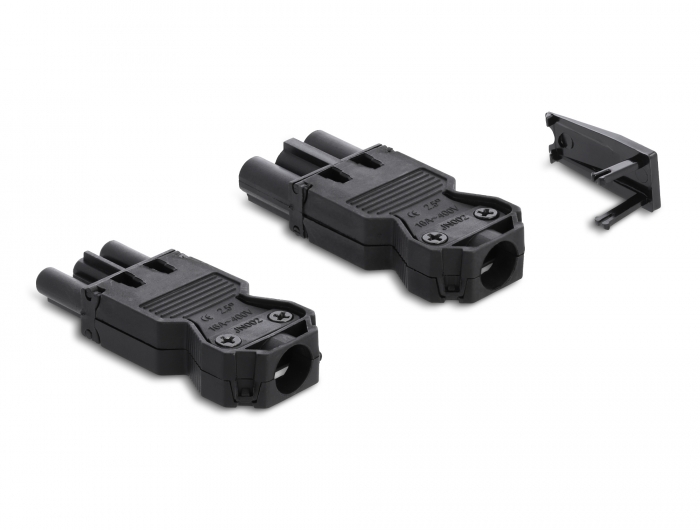

This installation connector set by Delock includes a plug and a socket. It is used for safe connection of two cables. Plug and socket are protected against contact. The included locking slide also prevents unintentional disconnection of the connector. The screw terminals inside are marked with P, N and L.

Specification:
• Connectors:
  female:
    1 x GST18/3 female

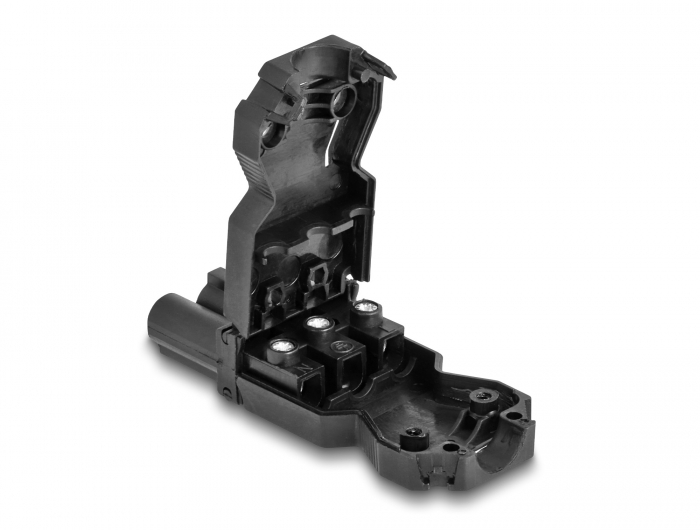

    3 x screw terminal for PE, N, L
  male:
    1 x GST18/3 male
    3 x screw terminal for PE, N, L
• Rated current: 16.0 A / 250 V~
• Material: ABS
• Terminal cross section (solid): 0.75 mm², 2.5 mm²
• Terminal cross section (fine-stranded): 0.75 mm²
• Cable diameter: ca. 10.5 mm
• Dimensions (LxWxH): ca. 70 x 29 x 13 mm
• Colour: black

Package content:
• 1 set installation connector
• Locking slide

Data sheet:
http://www.delock.de/produkt/64147/pdf.html?sprache=en
