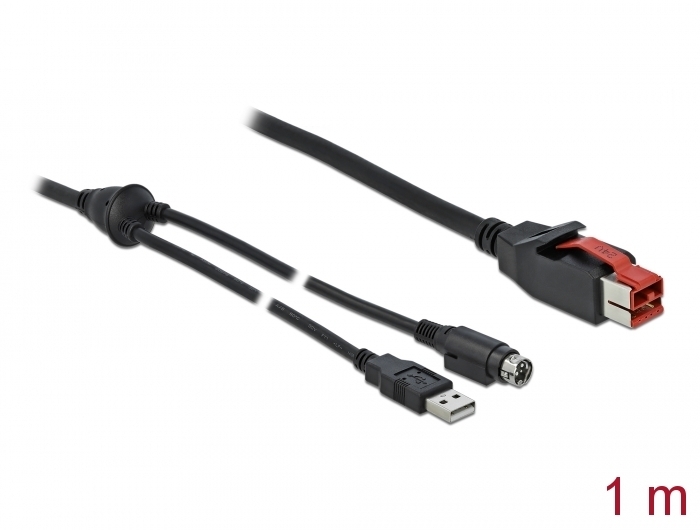

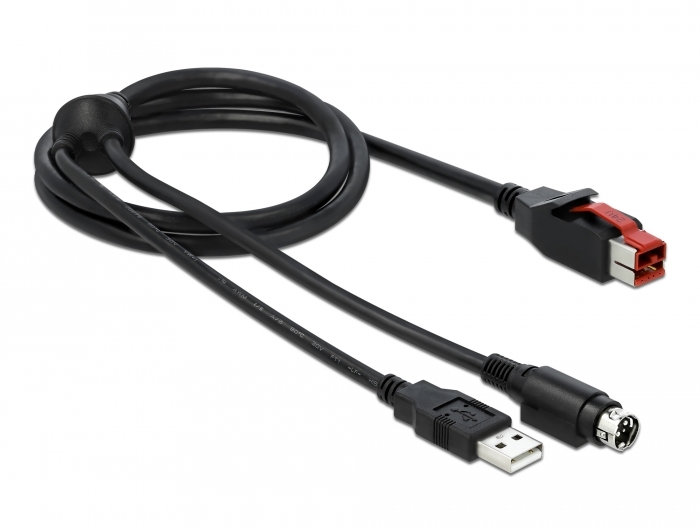

Delock PoweredUSB cable male 24 V to USB Type-A male + Mini-DIN 3 pin male 1 m for POS printers and terminals

Reference 85940

Condition: New

More info

This PoweredUSB cable by Delock can be used to connect a device with USB Type-A port and Hosiden Mini-DIN 3 pin power port to a PC or hub with PoweredUSB 24 V port. It is suitable for connecting various POS devices such as printers and terminals, e.g. by Bixolon or other manufacturers. The cable is used both for data transmission and for power supply of the connected device.

System requirements:
• PC or hub with a free PoweredUSB 24 V female port
• Device with a free USB Type-A port and a free Hosiden Mini-DIN 3 pin power female port

Specification:
• Connectors:
  1 x PoweredUSB male 24 V >
  1 x USB Type-A male +
  1 x Hosiden Mini-DIN 3 pin power male
• PoweredUSB specification
• Voltage: 24 V
• Cable gauge:
  26 AWG data line
  20 AWG power line
• Cable diameter: ca. 6.5 mm
• Cable double shielded
• Data transfer rate up to 480 Mbps
• Colour: black
• Length incl. connectors: ca. 1 m

Package content:
• PoweredUSB cable

Data sheet:
http://www.delock.de/produkt/85940/pdf.html?sprache=en
