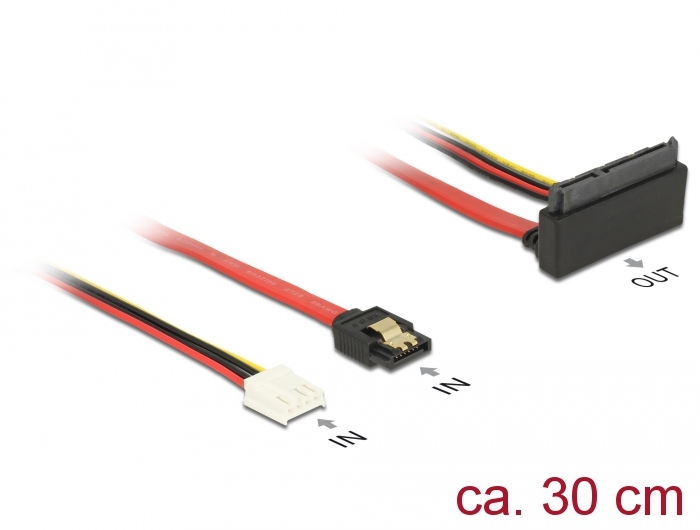

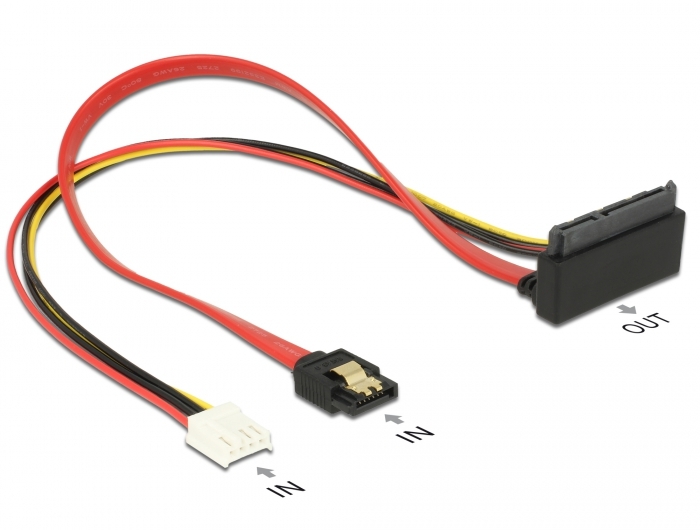

Delock Cable SATA 6 Gb/s 7 pin receptacle + Floppy 4 pin power receptacle > SATA 22 pin receptacle upwards angled metal 30 cm

Reference 85517

Condition: New

More info

This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA 7 pin port and a free 4 pin Floppy power interface of the motherboard. The metal clips on the SATA receptacles ensure that the cable reliably clicks into place.

System requirements:
• A free SATA 7 pin interface
• A free Floppy power plug

Specification:
• Connectors:
  1 x SATA 6 Gb/s 7 pin receptacle upwards angled +
  1 x Floppy 4 pin power female >
  1 x SATA 6 Gb/s 22 pin receptacle upwards angled
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Version with 4 power wires (yellow = 12 V, black = GND, red = 5 V)
• Voltage: 5 V + 12 V
• Cable gauge:
  26 AWG data line
  20 AWG power line
• With gold coloured metal clips
• Length incl. connectors: ca. 30 cm

Package content:
• SATA cable

Data sheet:
http://www.delock.de/produkt/85517/pdf.html?sprache=en
