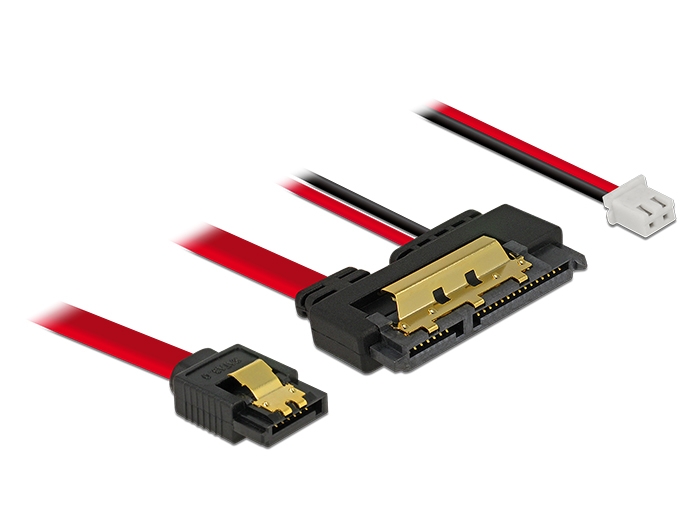

Delock Cable SATA 6 Gb/s 7 pin receptacle + 2 pin power female > SATA 22 pin receptacle straight (5 V) metal 10 cm

Reference 85238

Condition: New

More info

This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA 7 pin port and a free 2 pin power interface of the motherboard, as available e.g. on the Banana Pi. The metal clips on the SATA receptacles ensure that the cable reliably clicks into place.

System requirements:
• A free SATA 7 pin interface
• One free 2 pin power plug

Specification:
• Connectors:
1 x SATA 6 Gb/s 7 pin receptacle + 1 x 2 pin power female >
1 x SATA 6 Gb/s 22 pin receptacle straight
• Pitch: 2.50 mm
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Voltage: 5 V
• Cable gauge:
26 AWG data line
20 AWG power line
• Applicable e.g. with Banana Pi
• Length incl. connectors: ca. 10 cm

Package content:
• SATA cable

Data sheet:
http://www.delock.de/produkt/85238/pdf.html?sprache=en
