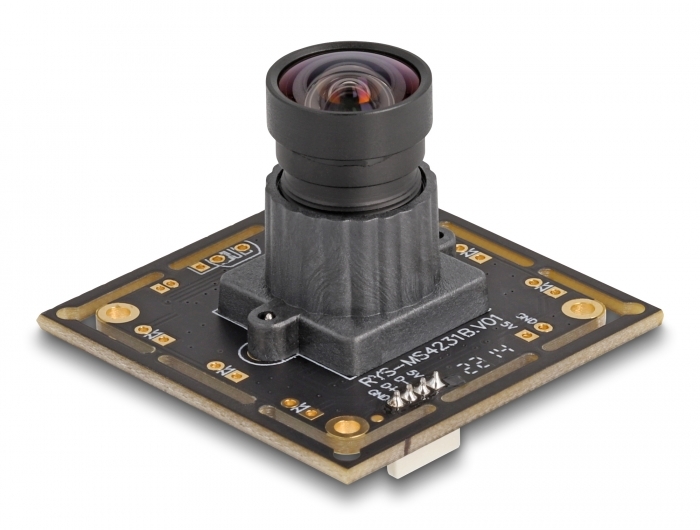

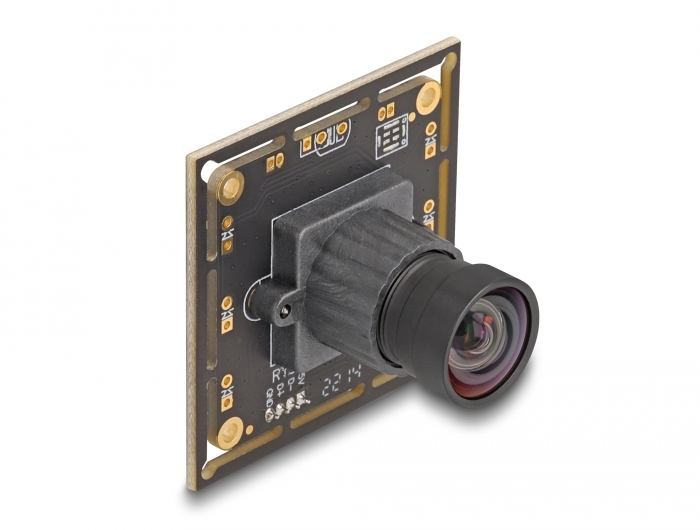

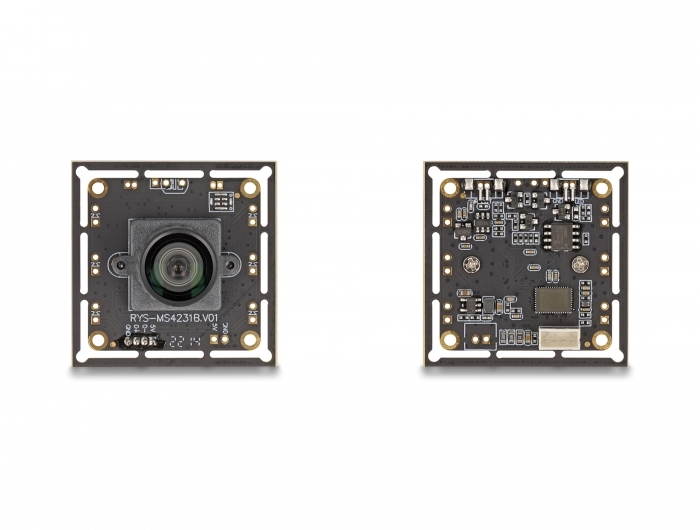

Delock USB 2.0 Camera Module with HDR 2.1 mega pixel 84° V6 fix focus

Reference 12069

Condition: New

More info

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

HDR - High Dynamic Range
Allows to increase the overall dynamic range to ensure more detailed images in scenes with bright and dark areas.

System requirements:
• Device with UVC support
• Windows 10/10-64/11
• DirectX 9.0c or above
• Linux Kernel 2.6.15 and above with Video4Linux

Specification:
• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm
• Resolution: 2.1 megapixel
• Sensor: PS4231
• With optical IR filter
• Maximum resolution: 1080p @ 30 fps (1920 x 1080)
• Image sensor processor functions:
  Automatic black-level calibration (ABLC)
  Embedded Local Tone Mapping
  Black sun cancellation by CMOS sensors
• Current consumption: ca. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 60 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.7"
• Sensitivity: 5.8 V / lx s
• Signal-to-noise ratio (SNR): ca. 41 dB
• Dynamic range: 85 dB
• Fix focus: 0.3 m - infinite
• Aperture: F/3.2
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): ca. 38.0 x 38.0 x 22.3 mm

Package content:
• Camera Module

Data sheet:
http://www.delock.de/produkt/12069/pdf.html?sprache=en
