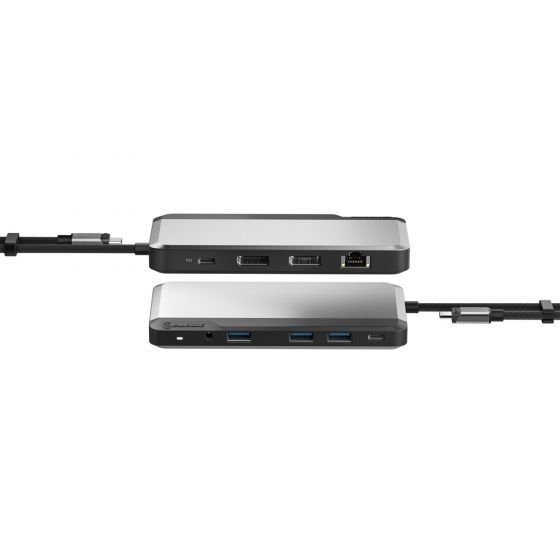

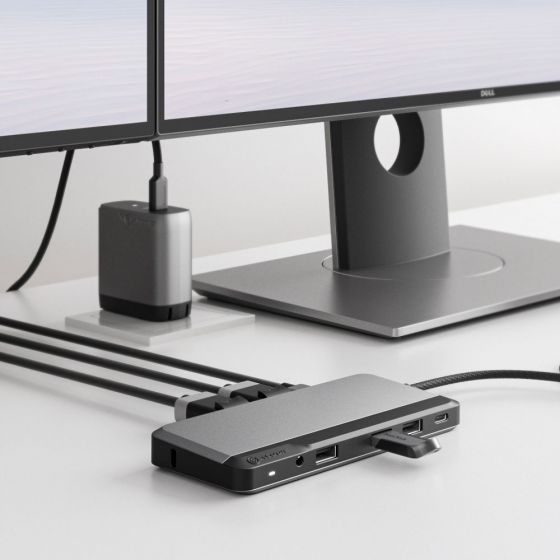

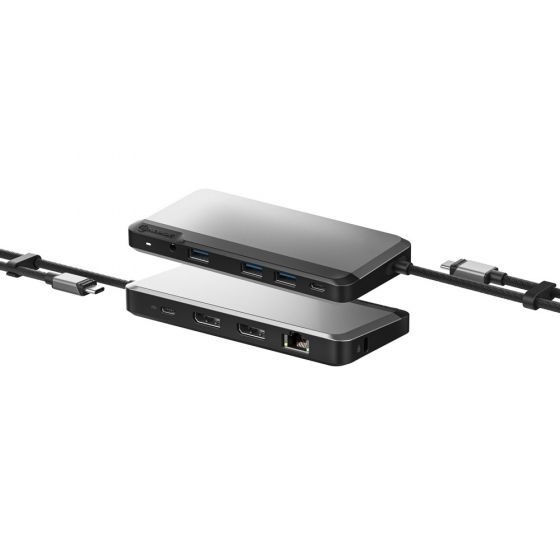

Alogic Dockingstation USB-C Dual Display MX2Lite DisplayPort

ALOGIC

U1CAD-SGR

New

Nine Ways to Enhance Your Workspace

Ports for a Better Desk Many modern laptops are missing the ports professionals need to connect essential USB accessories and displays at their desk. With the nine-port MX2 on your desk, you can connect two pristine DisplayPort-enabled computer monitors for multi-screen activities. You can run all your standard IT peripherals, including keyboard, mouse, printer and phone. Play back audio over headphones while you work and connect to Ethernet when you need a reliable connection for activities such as video conferencing.

Full HD for Focused Work

It’s Clearer in Full HD The MX2 features two DisplayPort ports for dual Full HD [@60Hz] displays on Windows laptops and desktops [with USB-C or Thunderbolt 3&4 with video output] *Dual displays save you time otherwise squandered on toggling between applications on single screens. MX2 users also benefit from sharp display resolutions for visually detailed tasks such as image editing and design and layout work. *See resolution support table below for full details of the resolutions and video outputs your computer is capable of.

A Featherweight Dock for Heavyweight Performance

Ports. Power. Portability. The MX2 weighs just 138 grams and occupies less space than a mobile phone. With premium metal alloy casing, the warranty-backed dock is a smart choice for households who need a take-anywhere dock for home, office and on the go.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Microphone in
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery
USB Power Delivery up to85 W
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic port
Headphone connectivity3.5 mm
DC-in jack
Ethernet LAN
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000 Mbit/s
Product colourGrey
Card reader integrated
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Cable lock slot
LED indicators
Plug and Play
Width62 mm
Depth139 mm
Height16.3 mm
Weight138 g
Quantity per pack1 pc(s)
