LINDY DST-Mini XT 810 USB C Laptop Mini Dockingstation

Reference 43392

Condition: New

More info

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.

The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.

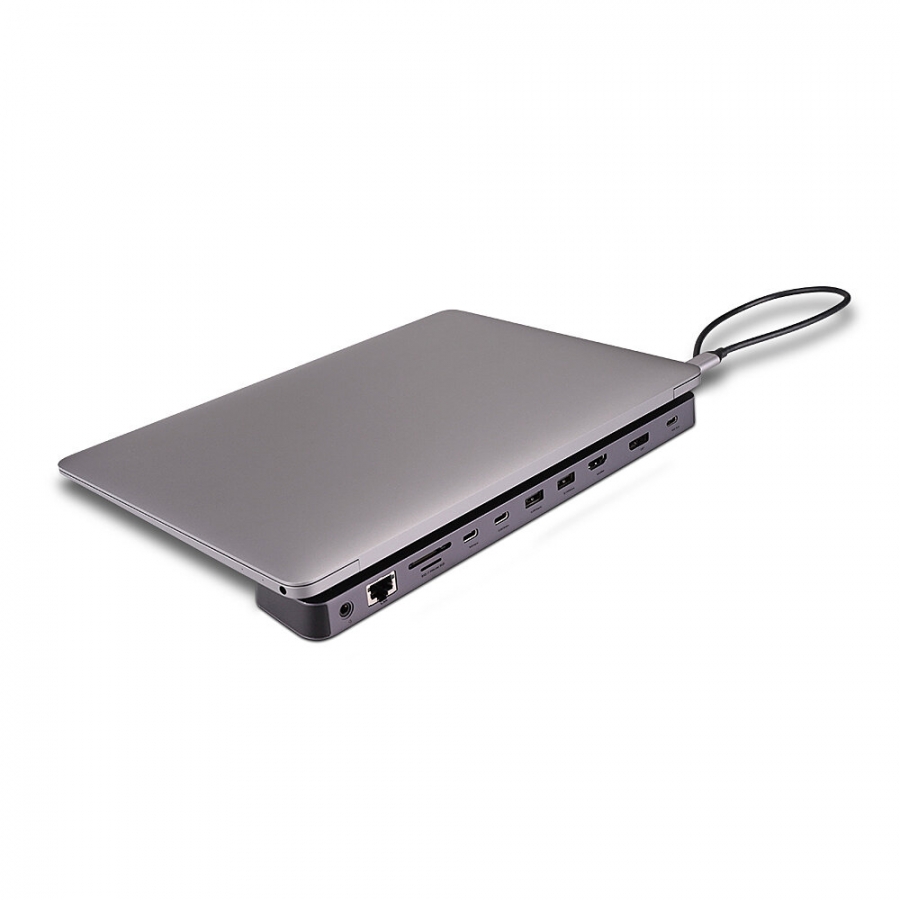

This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.

*Please note that macOS does not support MST.

Connectivity technology	Docking
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity	1
Headphone outputs	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Jā
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Combo headphone/mic port	Jā
Headphone connectivity	3.5 mm
HDCP	Jā
HDCP version	1.4/2.2
USB Type-C DisplayPort Alternate Mode	Jā
Ethernet LAN	Jā
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Jā
Product colour	Anthracite
Card reader integrated	Jā
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	10 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	2
Maximum refresh rate	120 Hz
Plug and Play	Jā
Housing material	Aluminium
Certification	CE, FCC, REACH & RoHS, CP65
Power source type	USB
Power connector	USB Type-C
Power supply	15 W
USB cable length	0.36 m
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Sustainability compliance	Jā
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Width	270 mm
Depth	45 mm
Height	16 mm
Weight	224 g
Quantity per pack	1 pc(s)
Package width	365 mm
Package depth	93 mm
Package height	35 mm
Package weight	330 g
Manual	Jā
Warranty period	2 year(s)
