Alogic DockingStation USB-C Dreifachanzeige schwarz

ALOGIC

DUCMA3

New

Triple Display

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

*Refer to the resolution support table for details on different resolutions supported with the dock.

Comprehensive Connectivity

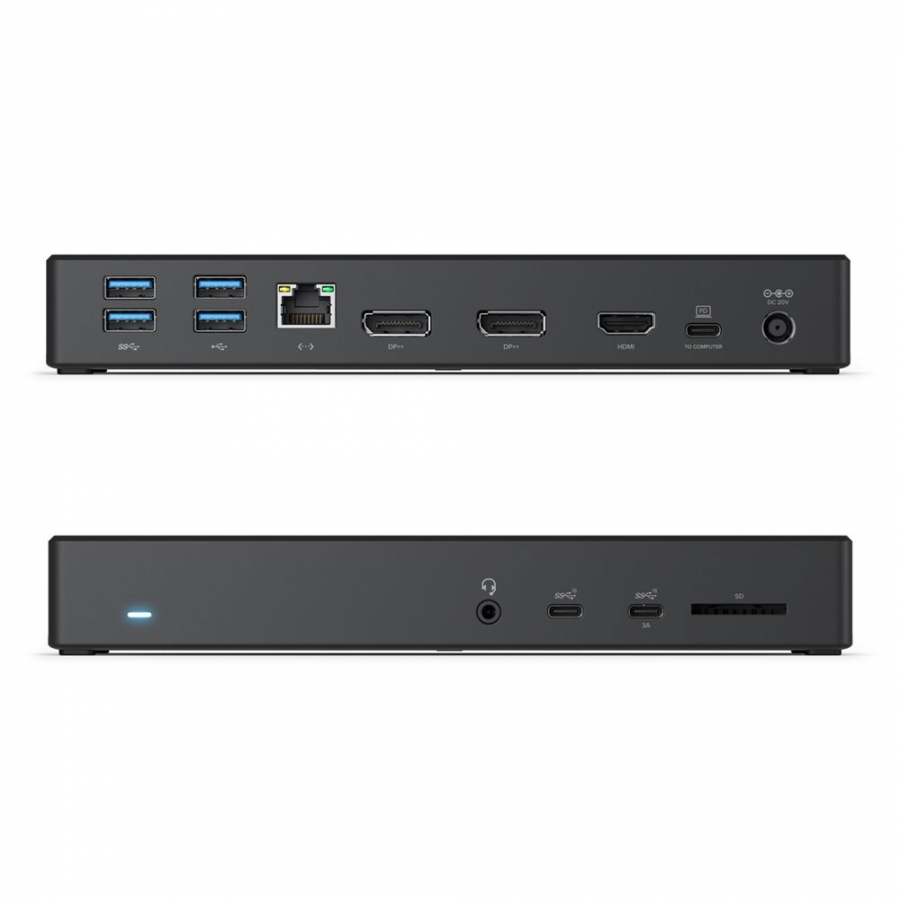

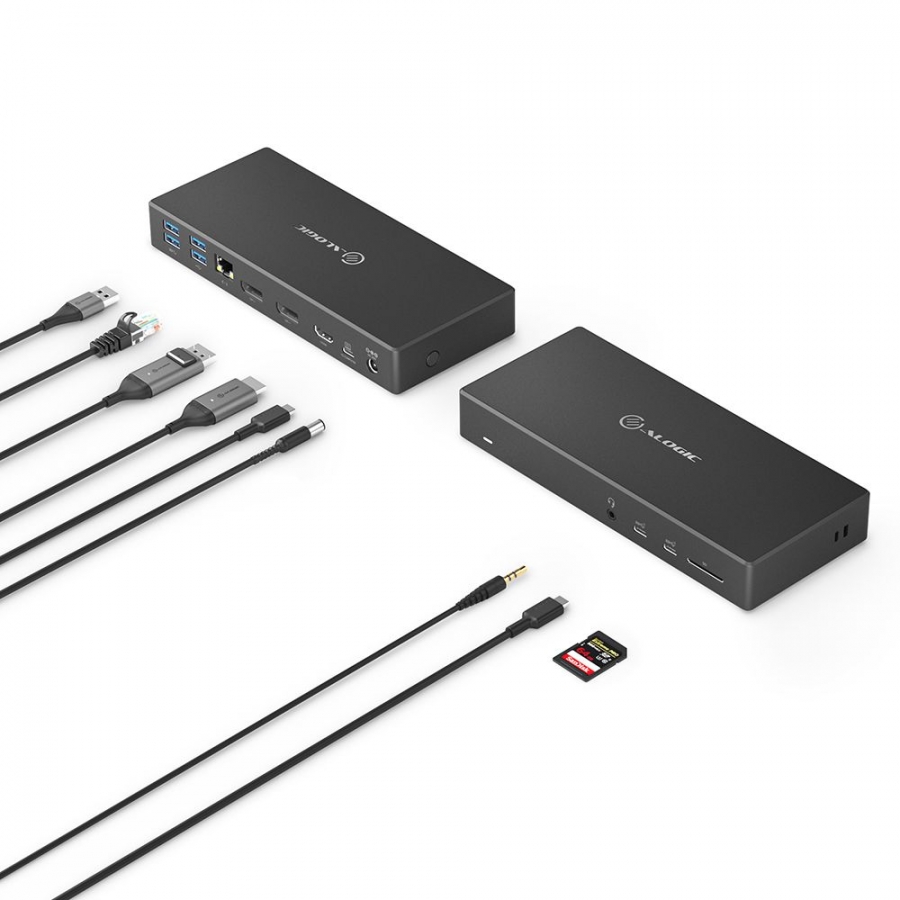

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card

The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.

*Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

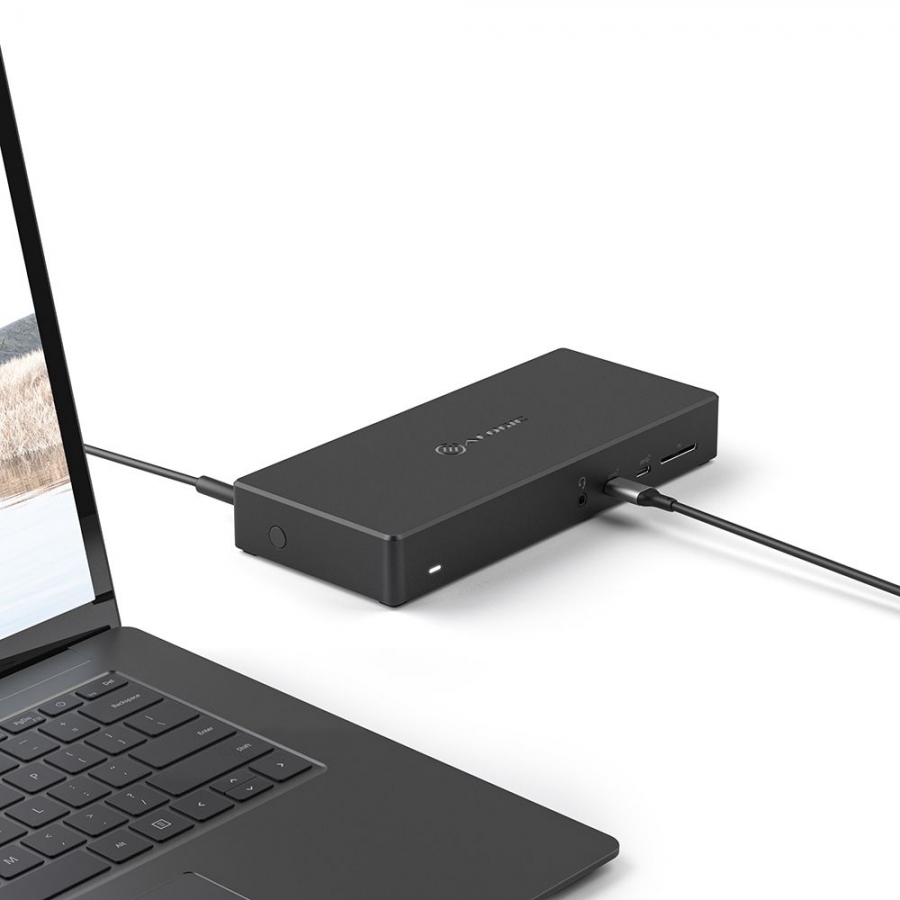

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.

Plug and Play: Driverless

With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
Microphone in
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery
USB Power Delivery up to100 W
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic port
DC-in jack
Ethernet LAN
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000 Mbit/s
Product colourBlack
Card reader integrated
Compatible memory cardsSD, SDHC, SDXC
HD type4K Ultra HD
Maximum digital resolution5120 x 2880 pixels
Number of displays supported3
Cable lock slot
LED indicators
CertificationFCC, CE
Power source typeDC
Power supply170 W
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Sustainability certificatesRoHS
Width880 mm
Depth2100 mm
Height290 mm
Weight360 g
Quantity per pack1 pc(s)
Cables includedAC
AC adapter included
Manual
Harmonized System (HS) code84733020
