Alogic Dockingstation Universal Triple 4K USB-C & USB-A 100W

Reference DUPRDX3-WW

Condition: New

More info

Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX3 dock provides access to all of the ports required in a home office, education, or corporate environment.

IMMERSIVE TRIPLE 4K

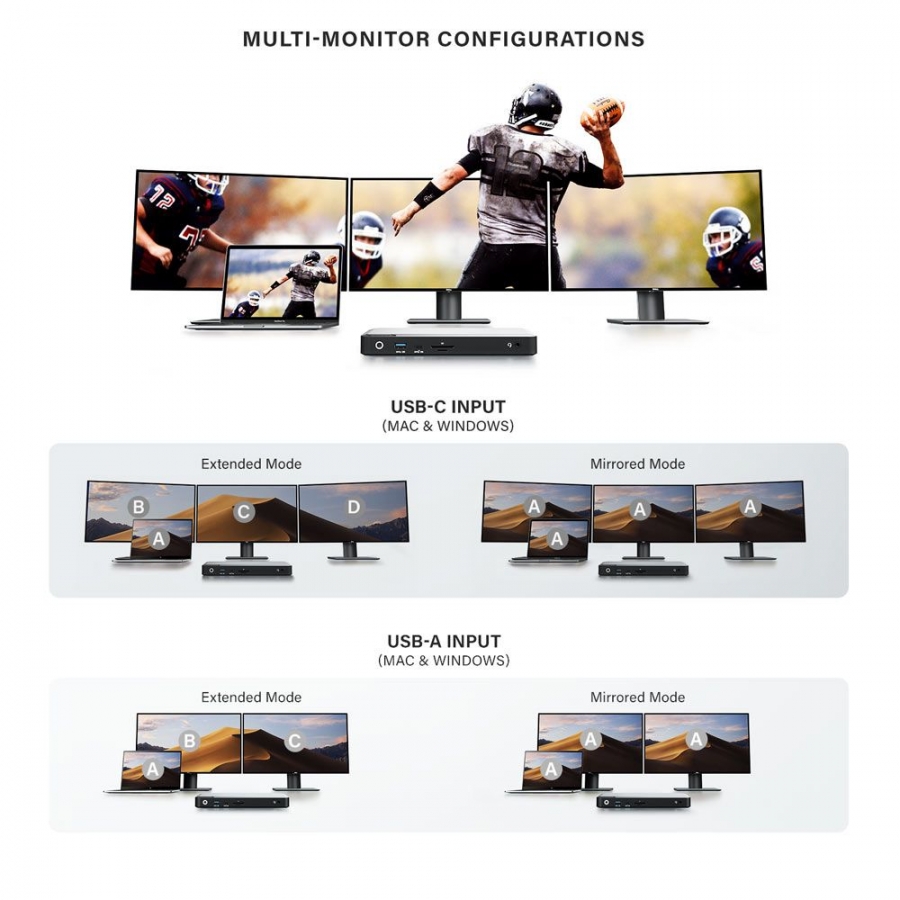

Sometimes you need more screen real estate. The DX3 can connect up to three external displays at 4K resolutions through its triple DisplayPort outputs*

Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX3 is the perfect way to see more work on your screen, and do more work on your screen.

*The available resolution of the third video output depends on the capabilities of the computer used with the docking station. Refer to the Display Resolution Table below for details on the output capabilities of computers based on their specifications.

SMALL DESK FOOTPRINT. BIG PERFORMANCE

The DX3’s compact design occupies minimal desk space to deliver premium performance. It's the ideal dock for a distraction-free desk set up focused on productivity.

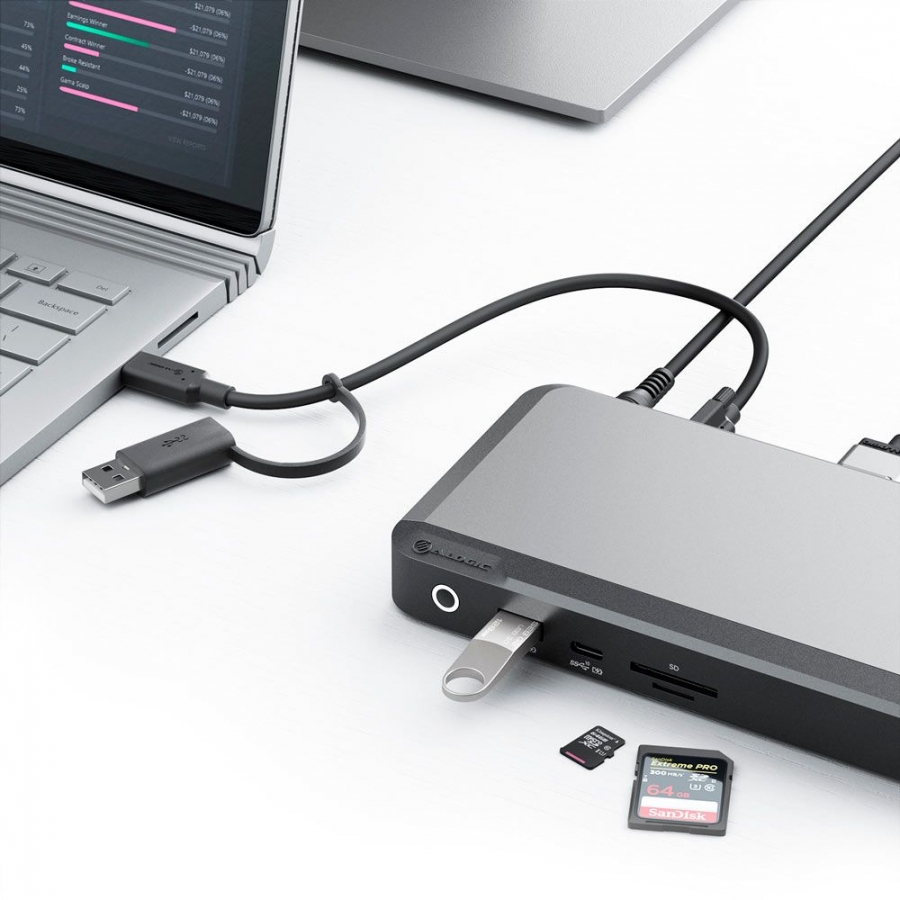

USB-C & USB-A LAPTOP COMPATIBLE

IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.

LED Power Light

Lock Slot

VESA Mount

DUAL/TRIPLE DISPLAY ON M1 MAC

M1 Mac users can work on up to three screens when they plug into the DX3.

MADE WITH DISPLAYLINK

The DX3’s DisplayLink technology boosts your connectivity, power and productivity at work.

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Headphone outputs	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB Power Delivery	Jā
USB Power Delivery up to	100 W
DisplayPorts quantity	3
DisplayPort version	1.4
Combo headphone/mic port	Jā
Headphone connectivity	3.5 mm
USB Sleep-and-Charge	Jā
DC-in jack	Jā
Ethernet LAN	Jā
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Product colour	Black, Grey
Card reader integrated	Jā
Compatible memory cards	MicroSD (TransFlash), SD
Maximum digital resolution	5120 x 2880 pixels
Number of displays supported	3
Cable lock slot	Jā
On/off switch	Jā
Display modes	Extended, Mirror
LED indicators	Jā
Plug and Play	Jā
Charging function	Jā
Housing material	Acrylonitrile butadiene styrene (ABS)
Certification	FCC
Power source type	AC
Power supply	135 W
Compatible power plug types	AU, EU, UK, US
Windows operating systems supported	Jā
Mac operating systems supported	Jā
Sustainability certificates	RoHS, CE
Width	190 mm
Depth	90 mm
Height	6.5 mm
Weight	535 g
Quantity per pack	1 pc(s)
Cables included	AC, USB Type-C
AC adapter included	Jā
Manual	Jā
Interface adapters included	USB Type-C male - USB Type-A female
Harmonized System (HS) code	84733020
