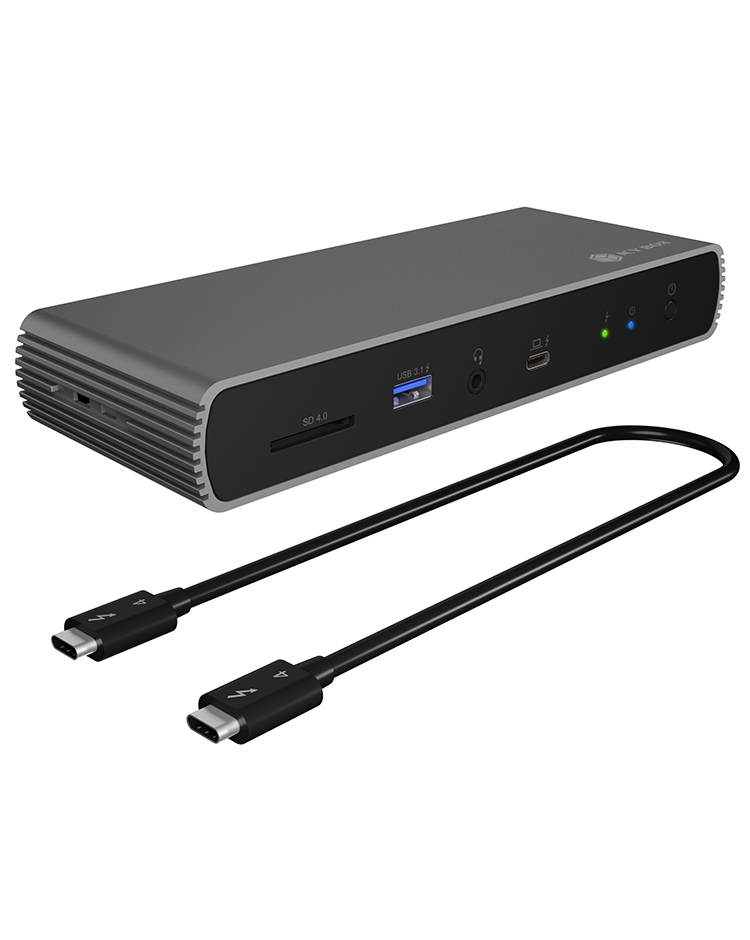

Icy Box Dockingstation IcyBox Thunderbolt 4xUSB Type-A, 2xType-C

Manufacturer: ICY BOX

Reference IB-DK8801-TB4

Condition: New

More info

What is Thunderbolt™ 4? It is the superset standard that includesUSB4®, DisplayPort™ and PCI Express (PCIe). With Thunderbolt™ 4, a data transfer rate of up to 40 Gbit/s (at 2 m cable length) as well as 32 GB/s PCIe data transfer must be guaranteed, at least one 100 W charging port must be available and wake-up from sleep mode must be possible.What is the difference between Thunderbolt™ 3 and 4? Theoretically, a Thunderbolt™ 3 device should be able to do the same as a Thunderbolt™ 4 device. However, compared to version 3, Thunderbolt™ 4 now has to meet much stricter standards to be certified. This includes, among other things, support for two 4K displays or one 8K display.IB-DK8801-TB4 prevents cyber attacks This is realised through Virtualisation Technology for Directed I/O (VT-d). It prevents physical DMA attacks by protecting PCIe peripherals from unauthorised access to memory using DMA remapping. Access is thus only allowed to an isolated and allocated memory of a specific device.

Connectivity technology	Wired
Host interface	Thunderbolt 4
HDMI ports quantity	1
Microphone in	N
Headphone outputs	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	96 W
Thunderbolt ports quantity	3
Thunderbolt 4 ports quantity	2
Combo headphone/mic port	Y
DC-in jack	Y
USB Type-C DisplayPort Alternate Mode	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Product colour	Anthracite, Black
Card reader integrated	Y
Compatible memory cards	SD
Data transfer rate	40 Gbit/s
HD type	8K Ultra HD
Number of displays supported	2
Maximum refresh rate	60 Hz
Cable lock slot	Y
Cable lock slot type	Kensington
On/off switch	Y
LED indicators	Y
Plug and Play	Y
UASP support	Y
Housing material	Aluminium
Country of origin	China
Power source type	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply	135 W
Output voltage	5 - 20 V
Output current	6.75 A
Windows operating systems supported	Y
Mac operating systems supported	Y
Width	200 mm
Depth	75 mm
Height	31 mm
Weight	435 g
Quantity per pack	1 pc(s)
Package width	290 mm
Package depth	92 mm
Package height	158 mm
Package weight	1.33 kg
Cables included	DC, Thunderbolt
Manual	Y
Products per master (outer) case	9 pc(s)
Master (outer) case width	305 mm
Master (outer) case length	315 mm
Master (outer) case height	500 mm
Master (outer) case gross weight	12.6 kg
