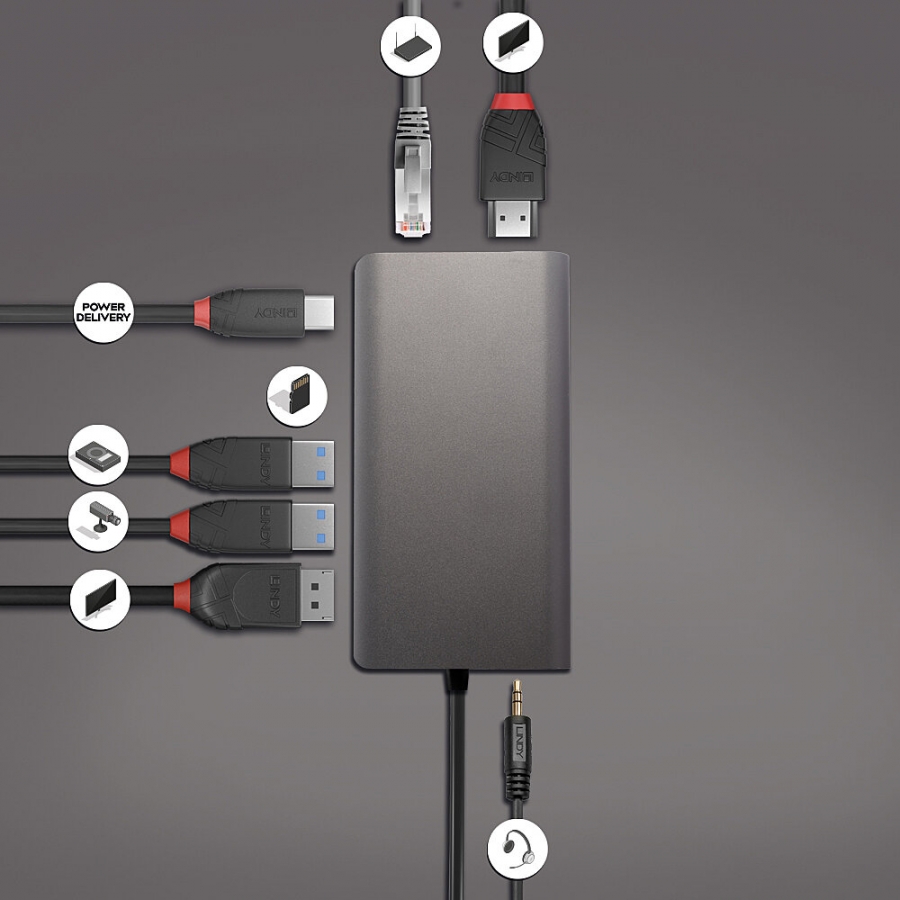

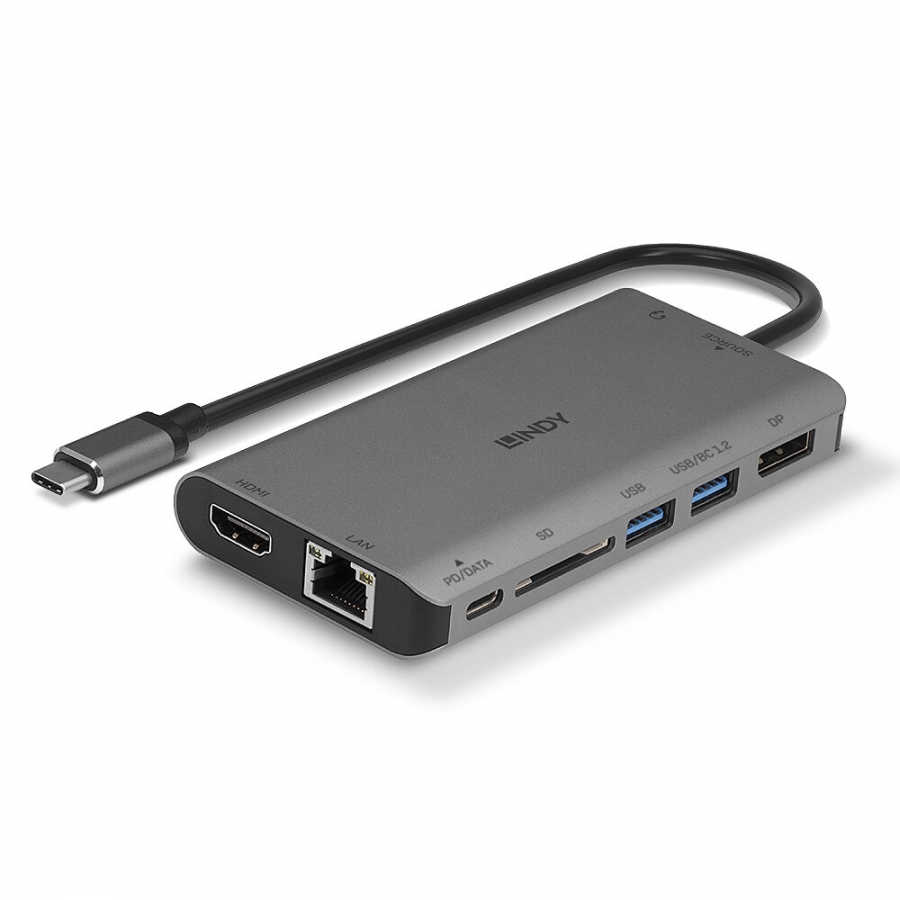

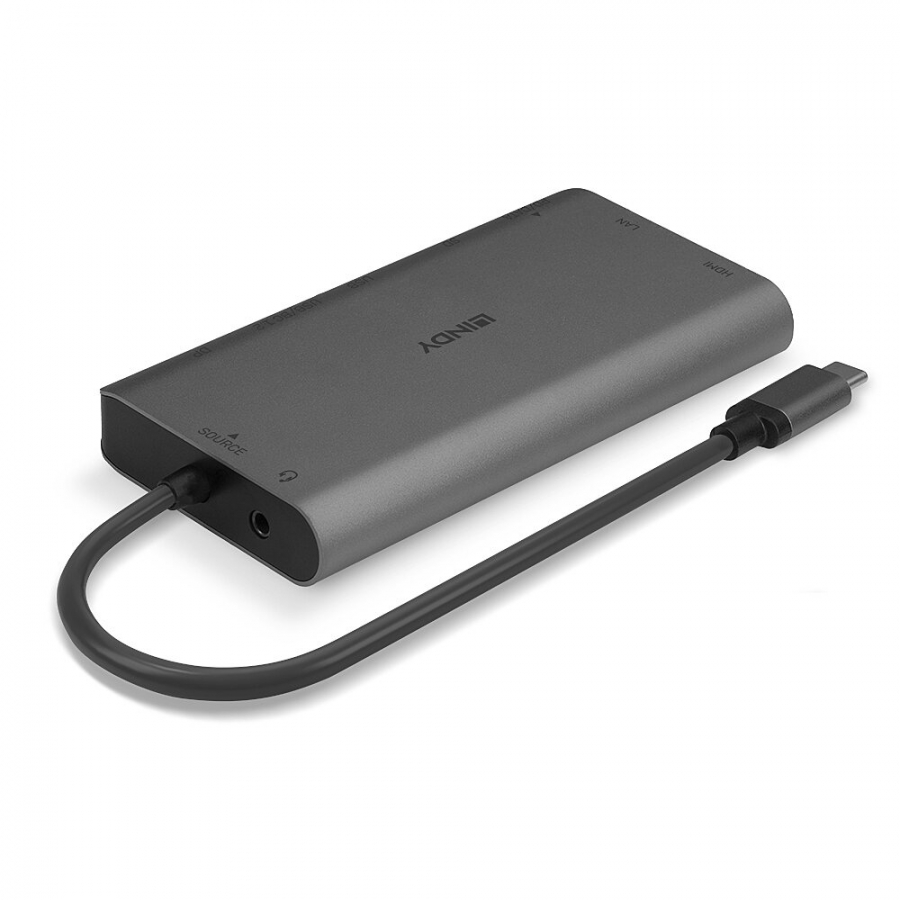

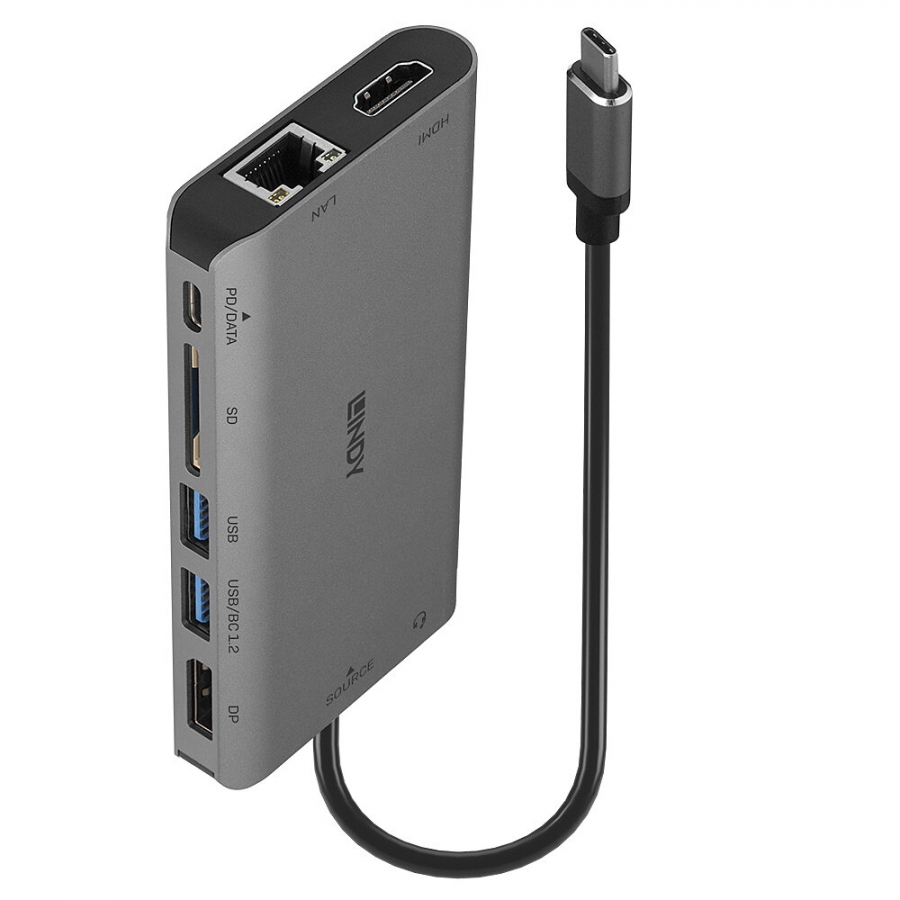

Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays Features DisplayPort Alternate Mode USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock 2 year warrantyThe Lindy USB 3.2 Type C Mini Laptop Dock is a compact and versatile solution for connecting laptops, tablets or smartphones to a range of interfaces including displays. Featuring all critical interfaces required for a modern workstation, this Mini Dock uses a single USB 3.2 Type C cable to connect up to two displays, while improving connectivity to other devices through Gigabit Ethernet, USB 3.2 / 3.1 Gen 1 / USB 3.0 SuperSpeed and SD card ports. It also features an Audio port for connection of a headphone or microphone.The Mini Dock enables the connection of a display to a laptop via HDMI or Displayport at resolutions of 3840x2160@30Hz or of both simultaneously using DisplayPort Alternate Mode through the USB Type C port. It features a combined USB Type C data & power port which supports Power Delivery up to 100W while also transmitting data at up to 5Gbps. Power delivery 3.0 supports bidirectional power up to almost 100 Watt and enables higher voltage and current values to be negotiated between the connected devices - host or peripherals. The two integrated USB Type A ports provide up to 5Gbps of data transfer, perfect for connecting Type A peripherals such as a hard drive, printer or webcam. The right USB port also supports the USB Battery Charging Specification 1.2 for charging mobile devices, which is able to deliver 5V and up to 1.5A for faster charging compared to a standard USB port.Information about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
|
| Connectivity technology | Wired | | Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C | | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 | | HDMI ports quantity | 1 | | Microphone in | N | | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 | | USB Power Delivery | Y | | USB Power Delivery revision | 3.0 | | USB Power Delivery up to | 100 W | | HDMI version | 1.4 | | DisplayPorts quantity | 1 | | DisplayPort version | 1.2 | | Combo headphone/mic port | Y | | HDCP | Y | | HDCP version | 1.4 | | Ethernet LAN | Y | | Ethernet LAN (RJ-45) ports | 1 | | Ethernet LAN data rates | 1000 Mbit/s | | Product colour | Black, Grey | | Card reader integrated | Y | | Compatible memory cards | SD | | Data transfer rate | 5 Gbit/s | | HD type | 4K Ultra HD | | Maximum digital resolution | 3840 x 2160 pixels | | Maximum refresh rate | 30 Hz | | Housing material | Aluminium | | Certification | CE, UKCA, FCC, REACH & RoHS | | Power source type | USB | | Operating temperature (T-T) | 0 - 55 °C | | Storage temperature (T-T) | -10 - 70 °C | | Operating relative humidity (H-H) | 0 - 85% | | Sustainability certificates | CE, REACH, RoHS | | Width | 116.5 mm | | Depth | 61 mm | | Height | 16 mm | | Weight | 115 g | | Quantity per pack | 1 pc(s) | | Package width | 150 mm | | Package depth | 137 mm | | Package height | 120 mm | | Package weight | 150 g | | Manual | Y | | Harmonized System (HS) code | 84733020 |
|
