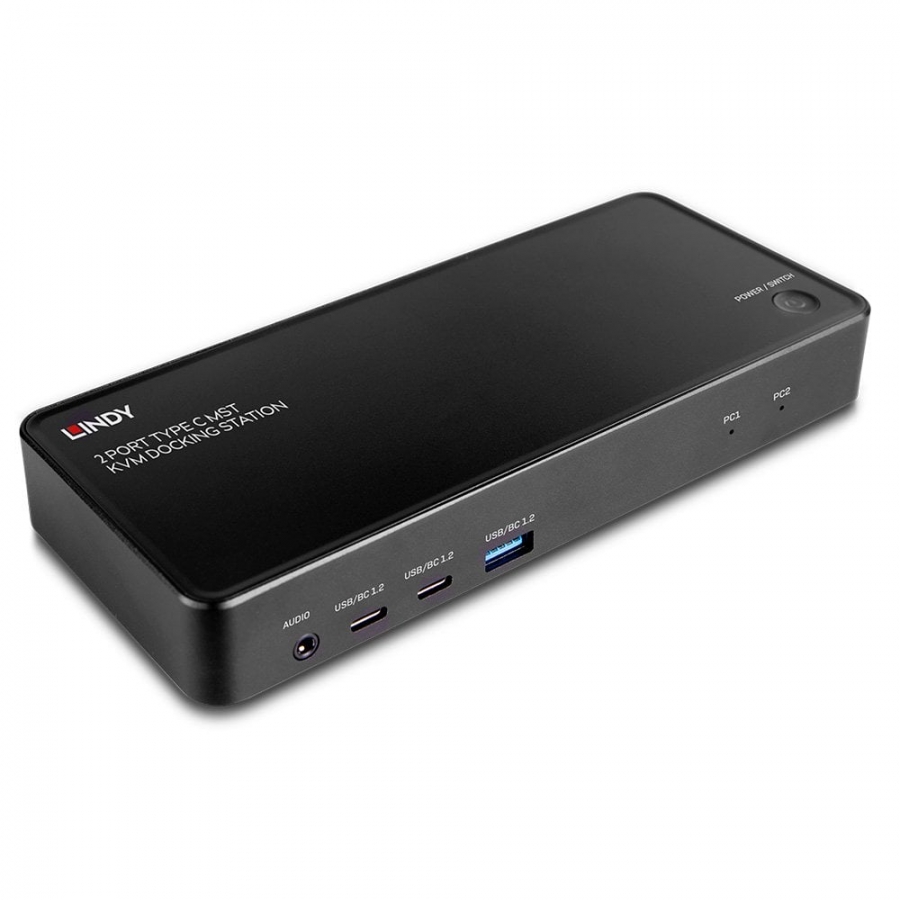

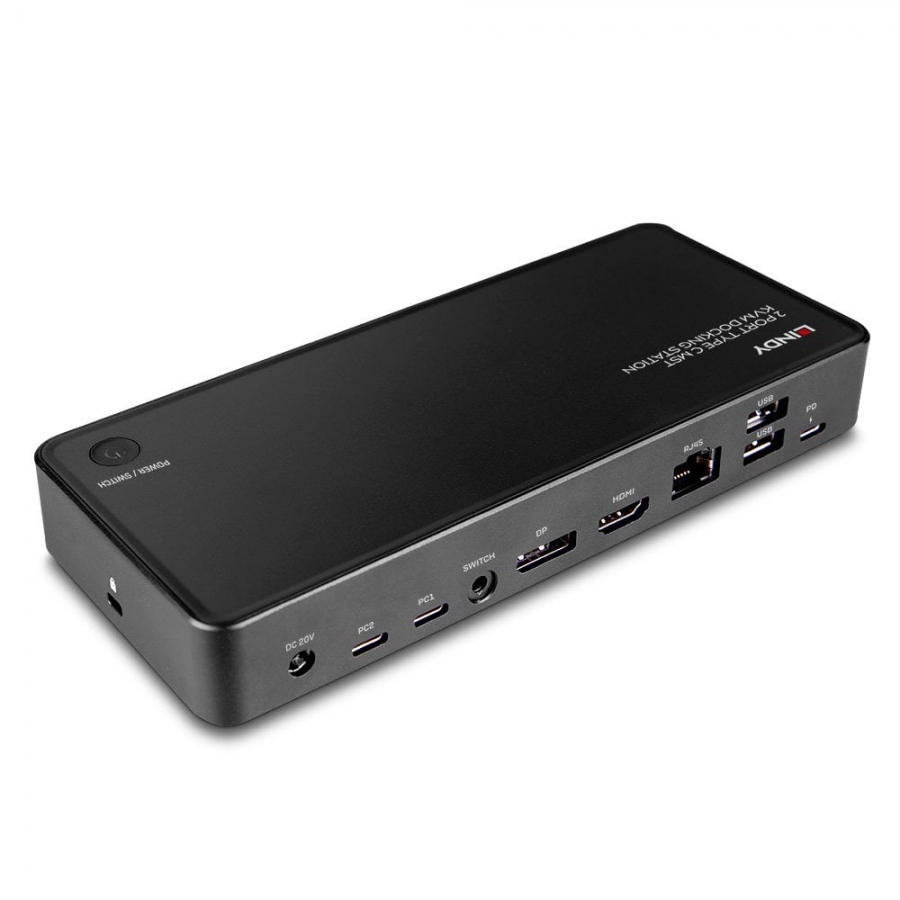

LINDY Docking Station 2 Port Type C MST KVM

Reference 43202

Condition: New

More info

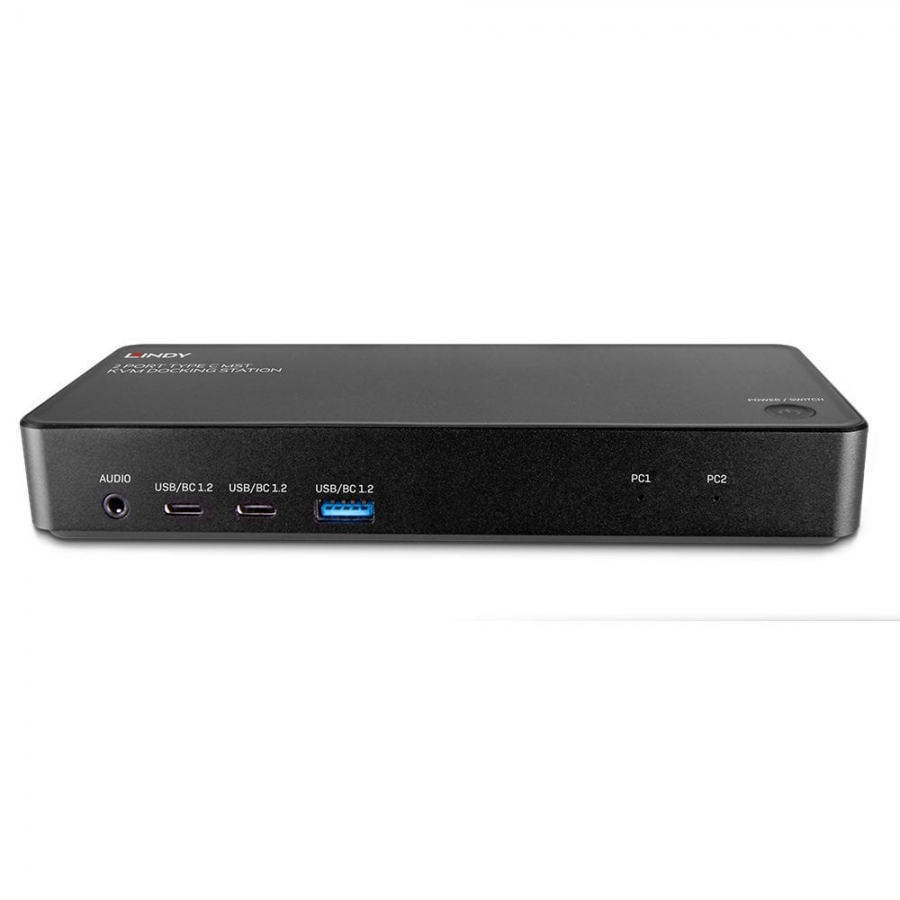

The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces including two displays. Featuring all critical interfaces required for a modern workstation, this device combines the comfort of a Desktop Docking Station with a Type C KVM Switch; it provides two USB 3.2 Type C inputs to connect sources such as laptops, tablets or smartphones in order to share the same workstation and peripherals connected. Switching is easily possible by pushing the button on the top of the unit.The Docking Station enables the connection of two displays via HDMI and DisplayPort outputs at resolutions of 3840x2160@60Hz using DisplayPort Alternate Mode through the USB Type C ports. It supports also MST function to manage the simultaneous connection of both monitors, one with 4K30 and one with 1920x1080@60Hz maximum resolutions.The USB Type C and Type A ports on the front panel provide up to 5Gbps of data transfer and BC 1.2 for fast charging perfect for connecting peripherals such as a hard drive, webcam and for charging a mobile device. Both USB Type C inputs support USB Power Delivery 3.0, PC1 port up to 100W (connecting an additional Type C PD power supply to PD port) while PC2 port up to 65W (just connecting the included power supply).It provides also a Gigabit Ethernet and a 3.5mm port to connect a Network and an Audio stereo input/output device such as headphones, speakers or microphone.

Number of computers controlled	2
Video port type	HDMI

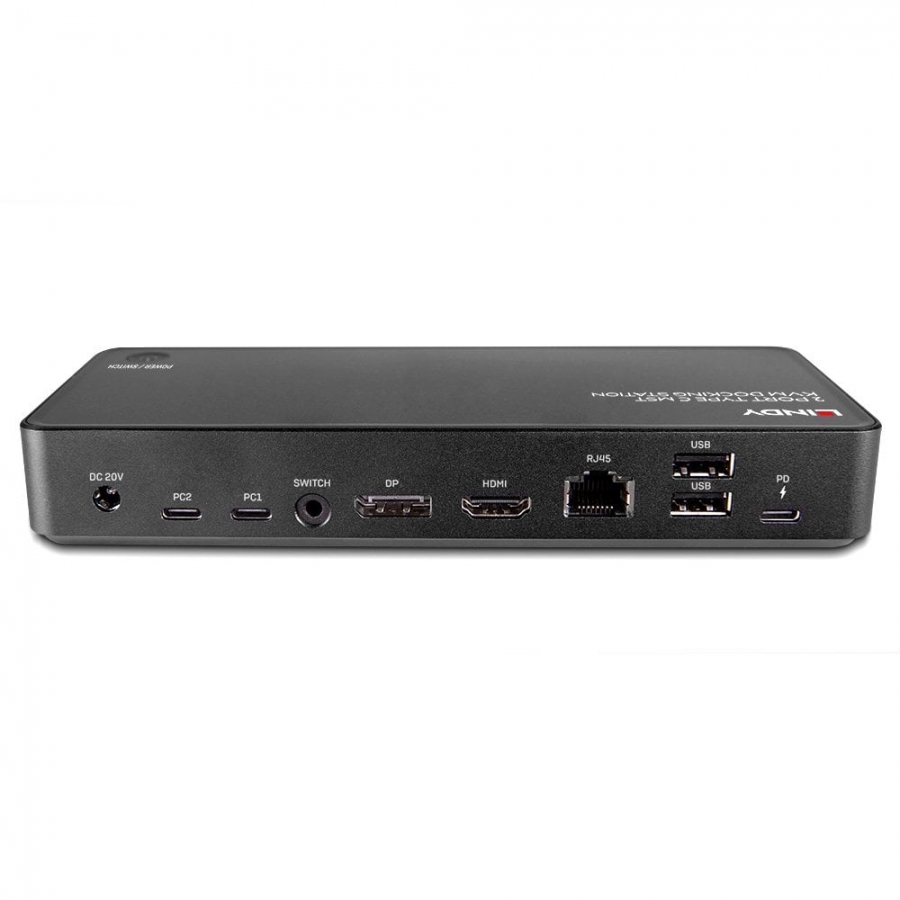

Console ports	3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A, USB C
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
USB 2.0 Type-C ports quantity	2
Console USB ports quantity	6
Audio connections	Y
Headphone outputs	1
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Data transfer rate (max)	5 Gbit/s
HDCP	Y
Product colour	Black
Housing material	Aluminium, Plastic
DC input voltage	24 V
Output current	5.6 A
Sustainability certificates	REACH, RoHS
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Width	185 mm
Depth	79 mm
Height	28 mm
Weight	926 g
Package width	250 mm
Package depth	203 mm
Package height	50 mm
Package weight	1.08 kg
Package type	Box
Manual	Y
