Delock USB Type-C™ Docking Station 4K - Dual HDMI MST / USB 3.2 / SD / LAN / PD 3.0

Reference 87004

Condition: New

More info

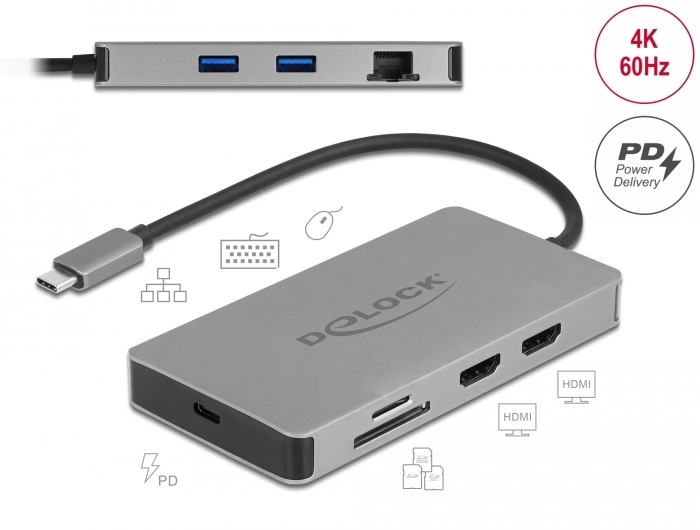

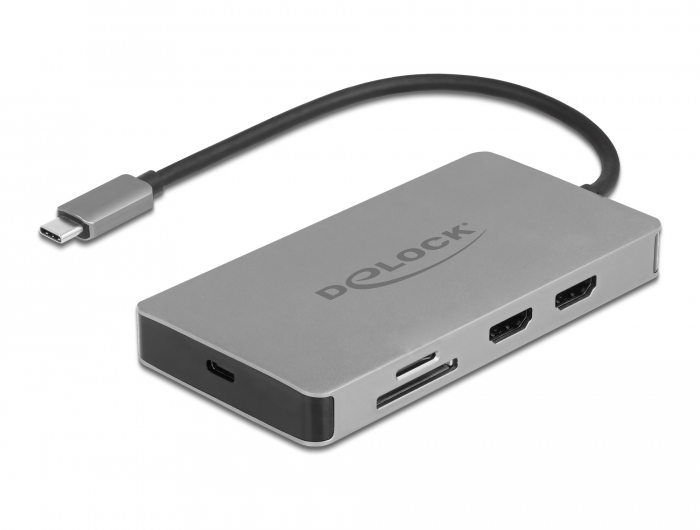

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Two built-in USB ports allow the use of peripherals, and connections for Gigabit network, as well as an SD and Micro SD card reader, complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

System requirements:
• Chrome OS 83.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x USB Type-C™ male
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female - Battery Charging specification
BC1.2
  1 x SD / SDHC / SDXC slot
  1 x Micro SD / SDHC / SDXC slot
  2 x HDMI-A female
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  1 x USB Type-C™ PD female (power supply)

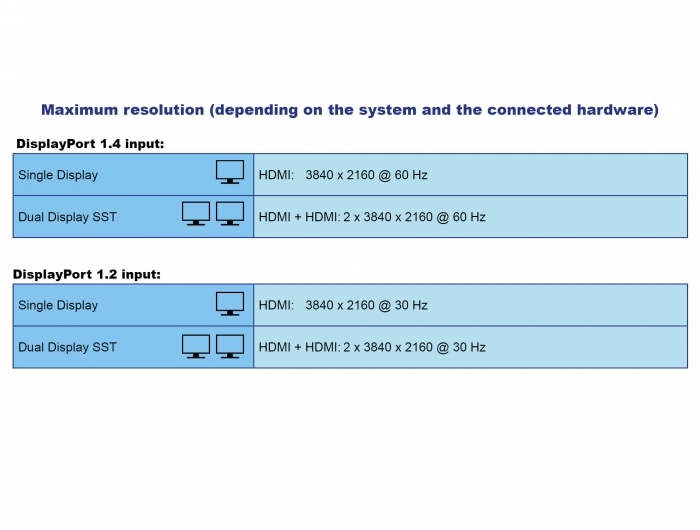

• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 1.4 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 60 Hz
  DisplayPort 1.2 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 30 Hz
• Transmission of audio and video signals
• Functions: Mirrored or Extended (Windows only)
• It can be used two memory cards at the same time
• Data can be exchanged directly between two connected memory cards
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Output power for host: max. 85 W
• Metal housing
• Cable length without connectors: ca. 20 cm
• Colour: grey
• Dimensions (LxWxH): ca. 115 x 59 x 14 mm

Package content:
• USB-C™ docking station
• User manual

Data sheet:
http://www.delock.de/produkt/87004/pdf.html?sprache=en
